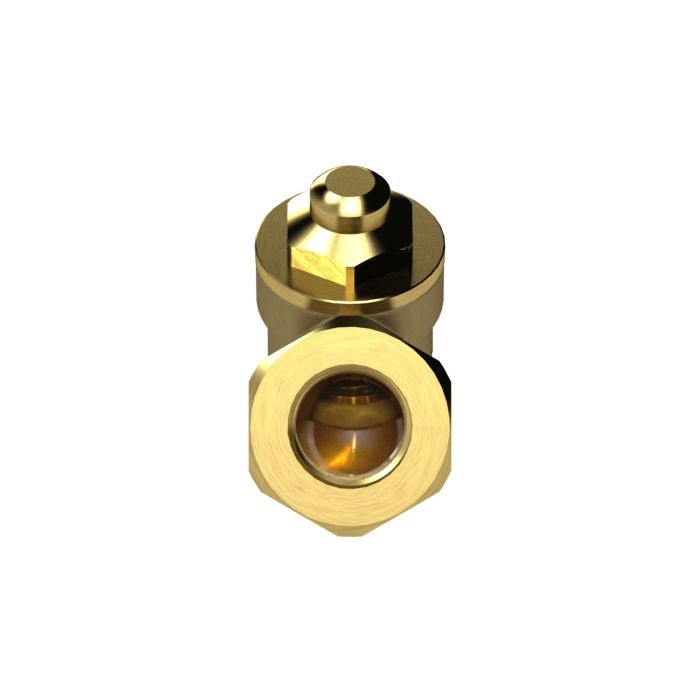

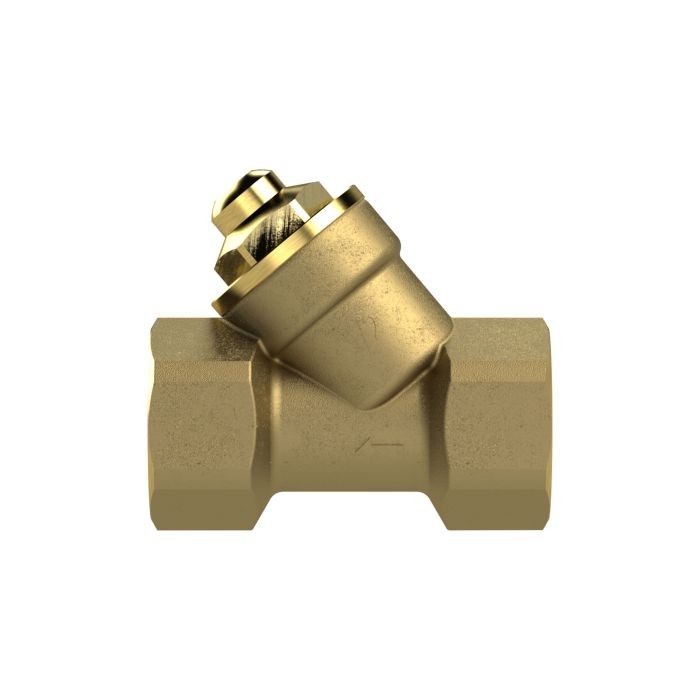

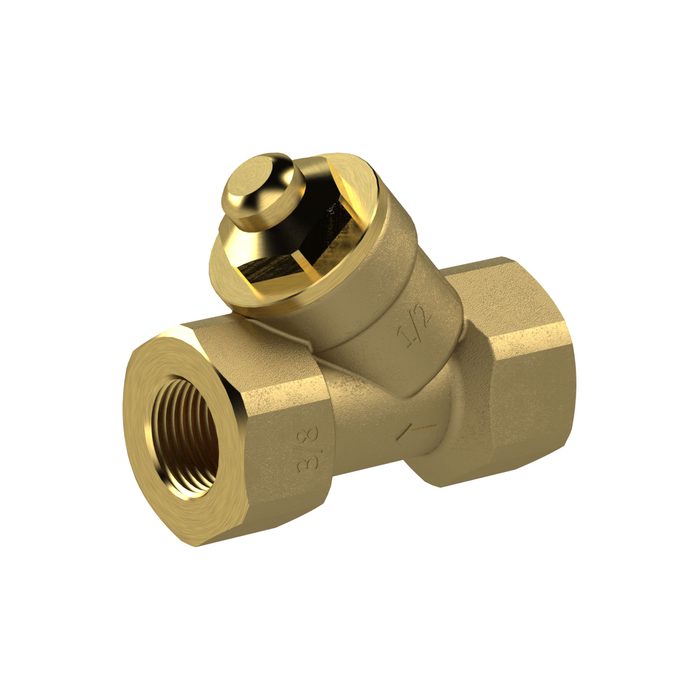

RIEGLER Check valve, Inclined seat design, Brass, Rp 3/4, 0.5 bar
Type number: 220.04
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass non-return valve, for industrial systems, max. 10 bar - Type 220.04
The RIEGLER non-return valve, angle seat design, MS, Rp 3/4, 0.5 bar regulates or blocks the flow of media in industrial pipelines. The housing is made of brass with NBR seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -30 °C and 90 °C. Connection thread Rp 3/4 (Rp thread to DIN 2999) - suitable for common industrial standards. Suitable for water. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Medium | Water |
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Opening pressure min. | 0.5 bar |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 90 °C |
| Thread | Rp 3/4 |
| SW | 32 mm |
| Thread standard | Rp thread to DIN 2999 |

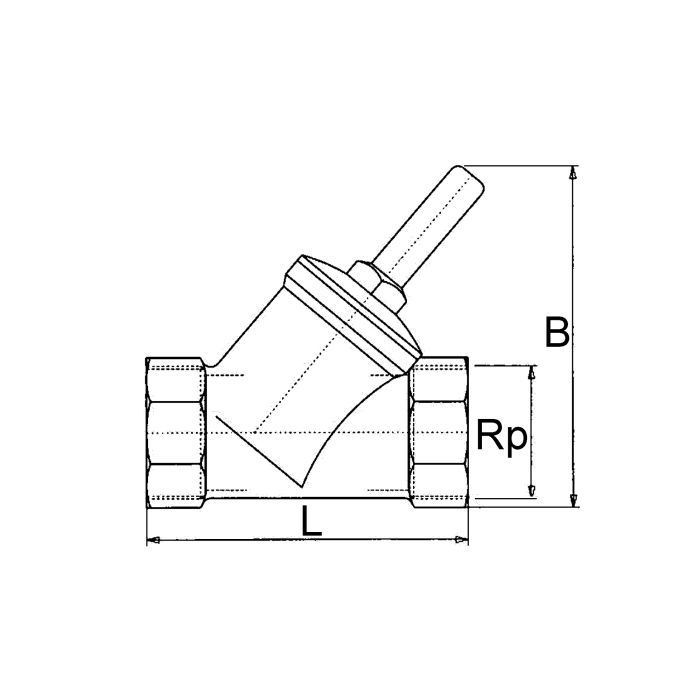

| B | 60 mm |
| L | 67 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103828] RIEGLER Check valve, Inclined seat design, Brass, Rp 1, 0.5 bar](/web/image/product.template/171789/image_128/%5B103828%5D%20RIEGLER%20Check%20valve%2C%20Inclined%20seat%20design%2C%20Brass%2C%20Rp%201%2C%200.5%20bar?unique=df8469f)
|
Type number: 220.05 |
32.24 € | |

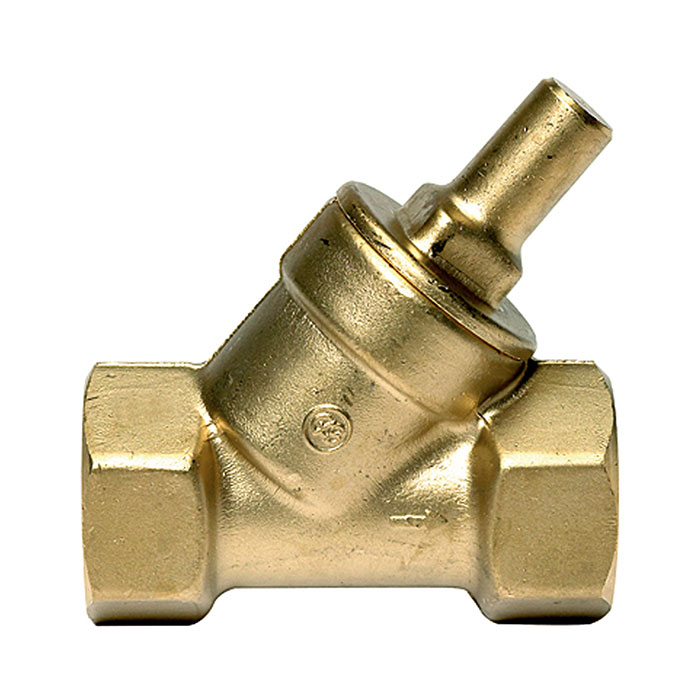

![[103830] RIEGLER Check valve, Inclined seat design, Brass, Rp 1 1/2, 0.5 bar](/web/image/product.template/171791/image_128/%5B103830%5D%20RIEGLER%20Check%20valve%2C%20Inclined%20seat%20design%2C%20Brass%2C%20Rp%201%201-2%2C%200.5%20bar?unique=5aa882a)
|
