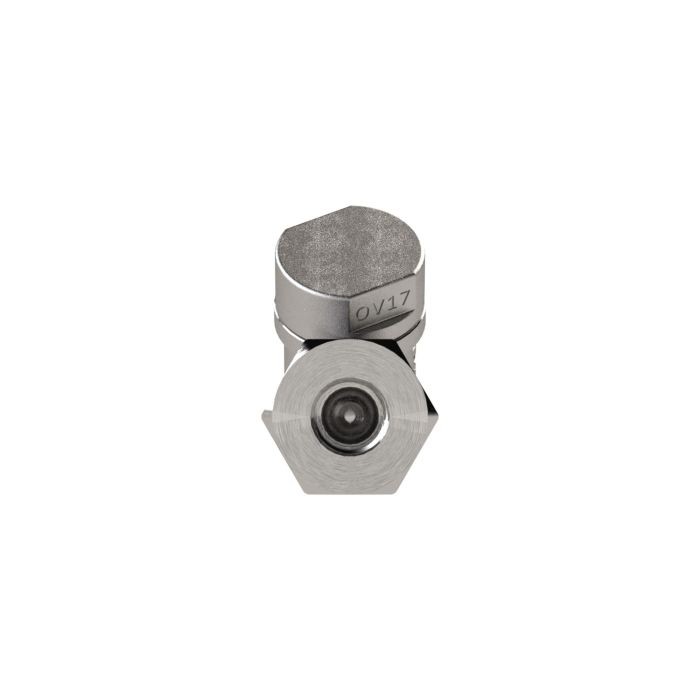

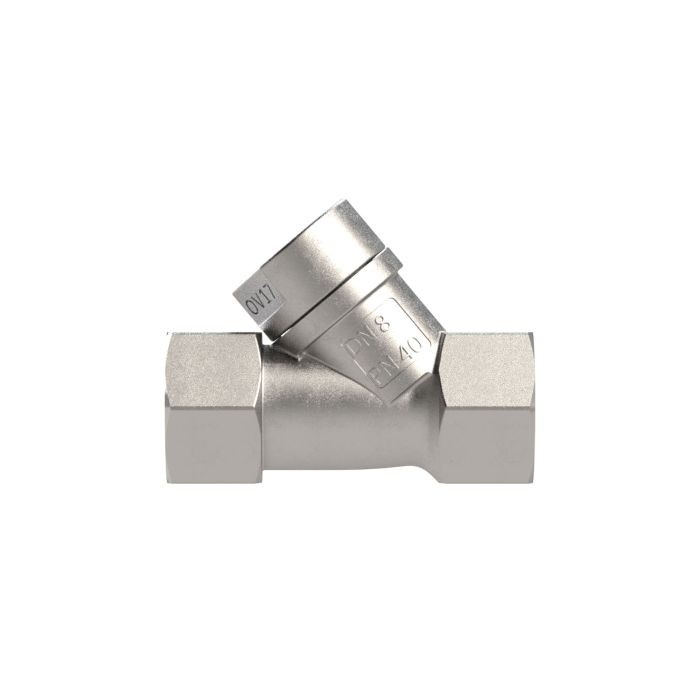

RIEGLER Check valve inclined seat design stainless steel, G 1/4, 0.2 bar
Type number: 220.01-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Non-return valve, angle seat design, ES, medium/ambient temp. -10°C to 230°C, G 1/4, PN max. 40 bar, opening pressure 0.2 bar
| Housing | Stainless steel 1.4401 / 1.4408 |
| Sealing material | FKM |
| Max. operating pressure | 40 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 230 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 230 °C |
| Opening pressure min. | 0.2 bar |
| Interior parts | Stainless steel 1.4401 / 1.4408 |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 230 °C |
| Thread | G 1/4 |
| SW | 27 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

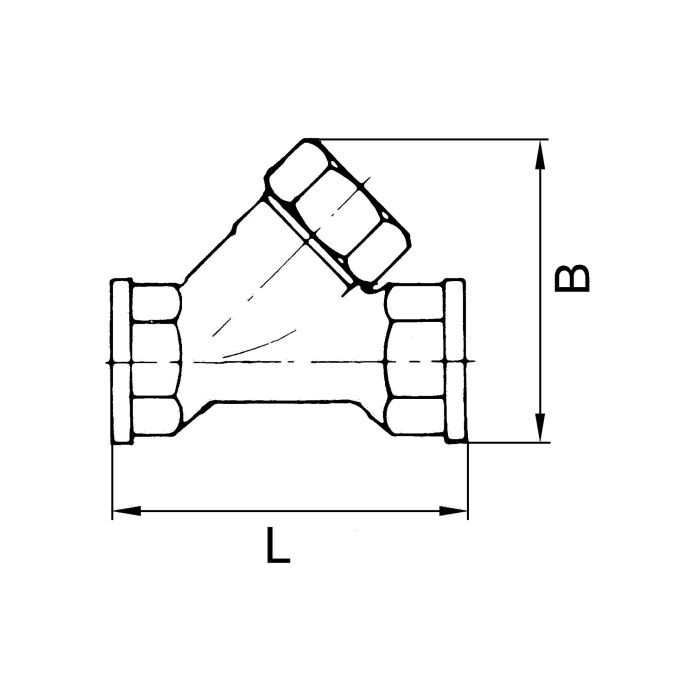

| B | 53.5 mm |
| L | 66 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103836] RIEGLER Check valve inclined seat design stainless steel, G 1, 0.2 bar](/web/image/product.template/171797/image_128/%5B103836%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%201%2C%200.2%20bar?unique=a1b73cd)
|
Type number: 220.05-ES |
65.70 € | |
![[103838] RIEGLER Check valve inclined seat design stainless steel, G 1 1/2, 0.2bar](/web/image/product.template/171799/image_128/%5B103838%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%201%201-2%2C%200.2bar?unique=282a72a)
|
Type number: 220.07-ES |
109.94 € | |
![[103837] RIEGLER Check valve inclined seat design stainless steel, G 1 1/4, 0.2bar](/web/image/product.template/171798/image_128/%5B103837%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%201%201-4%2C%200.2bar?unique=3d2bd62)
|
Type number: 220.06-ES |
76.78 € | |
![[103834] RIEGLER Check valve inclined seat design stainless steel, G 1/2, 0.2 bar](/web/image/product.template/171795/image_128/%5B103834%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%201-2%2C%200.2%20bar?unique=e9701fa)
|
Type number: 220.03-ES |
46.49 € | |

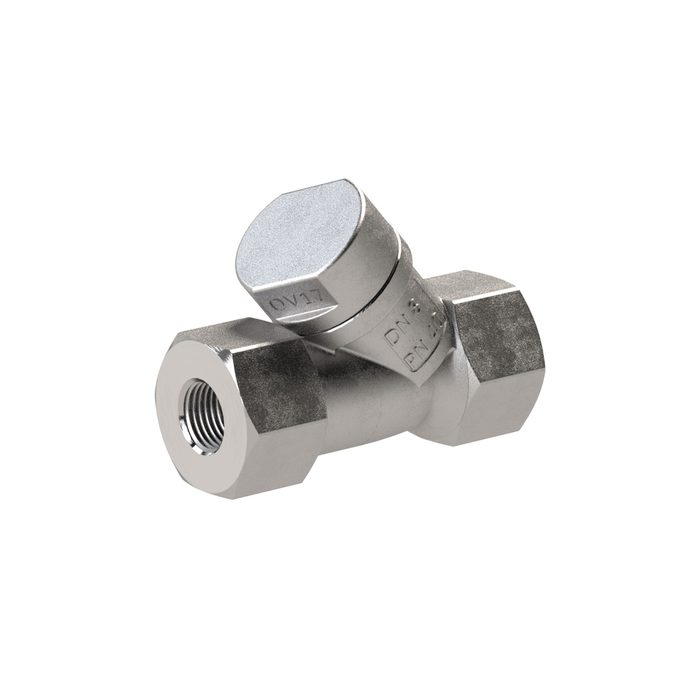

![[103839] RIEGLER Check valve inclined seat design stainless steel, G 2, 0.2 bar](/web/image/product.template/171800/image_128/%5B103839%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%202%2C%200.2%20bar?unique=22fb648)
|
