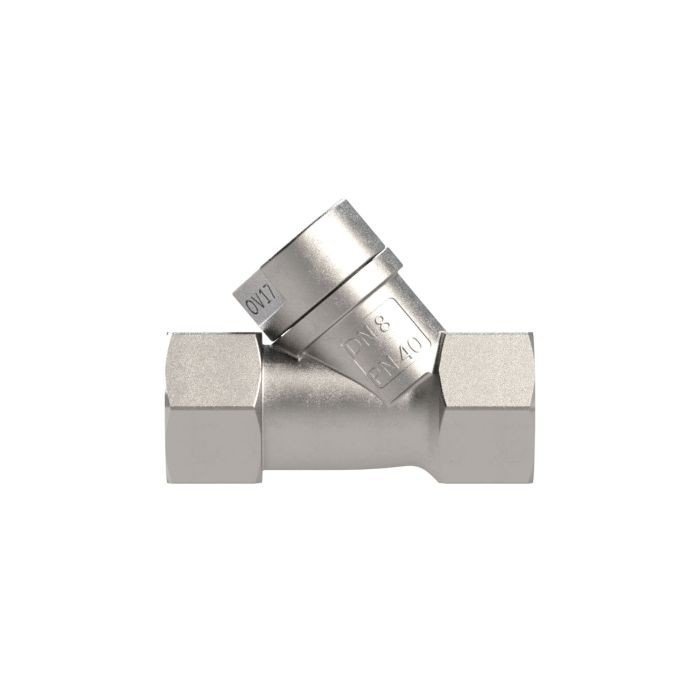

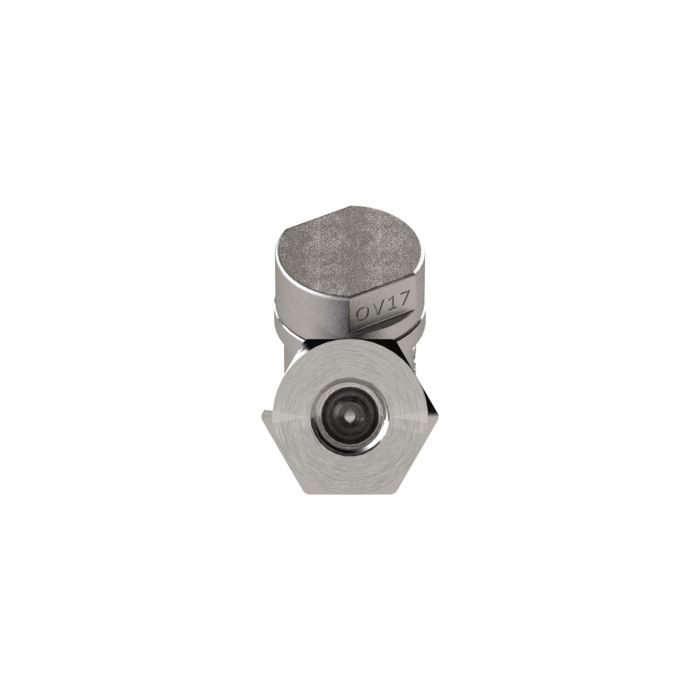

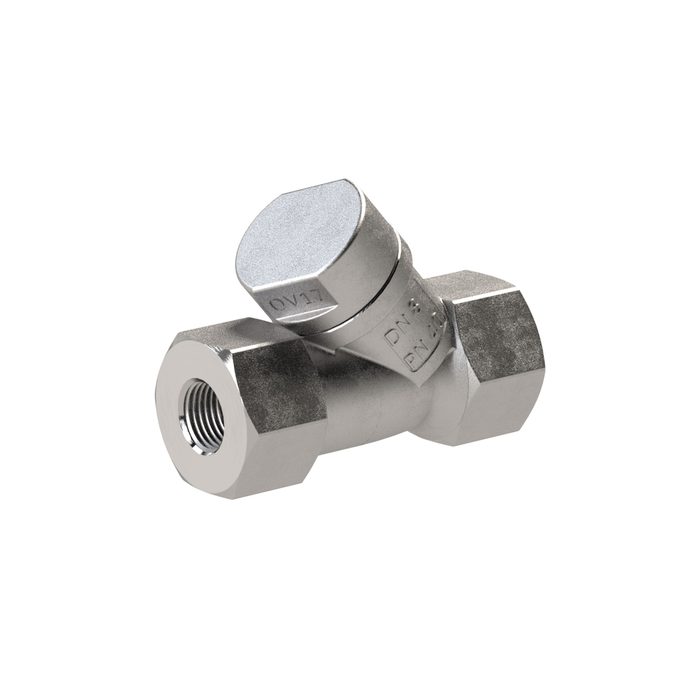

RIEGLER Check valve inclined seat design stainless steel, G 3/8, 0.2 bar
Type number: 220.02-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Non-return valve, angle seat design, ES medium/ambient temp. -10°C to 230°C, G 3/8, PN max. 40 bar, opening pressure 0.2 bar
| Housing | Stainless steel 1.4401 / 1.4408 |
| Sealing material | FKM |
| Max. operating pressure | 40 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 230 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 230 °C |
| Opening pressure min. | 0.2 bar |
| Interior parts | Stainless steel 1.4401 / 1.4408 |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 230 °C |
| Thread | G 3/8 |
| SW | 27 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

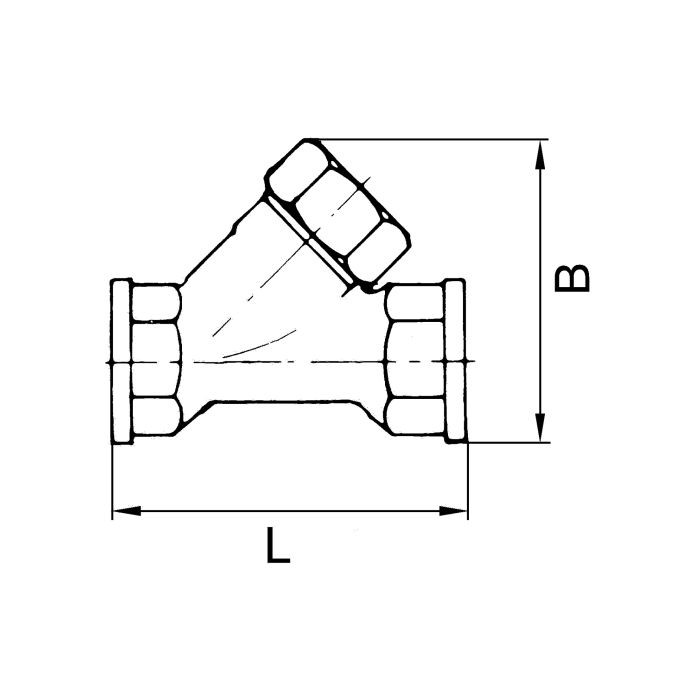

| B | 53.5 mm |
| L | 66 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103836] RIEGLER Check valve inclined seat design stainless steel, G 1, 0.2 bar](/web/image/product.template/171797/image_128/%5B103836%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%201%2C%200.2%20bar?unique=7a4c5e1)
|
Type number: 220.05-ES |
65.70 € | |
![[103838] RIEGLER Check valve inclined seat design stainless steel, G 1 1/2, 0.2bar](/web/image/product.template/171799/image_128/%5B103838%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%201%201-2%2C%200.2bar?unique=eb00c33)
|
Type number: 220.07-ES |
109.94 € | |
![[103837] RIEGLER Check valve inclined seat design stainless steel, G 1 1/4, 0.2bar](/web/image/product.template/171798/image_128/%5B103837%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%201%201-4%2C%200.2bar?unique=3227ff0)
|
Type number: 220.06-ES |
76.78 € | |
![[103834] RIEGLER Check valve inclined seat design stainless steel, G 1/2, 0.2 bar](/web/image/product.template/171795/image_128/%5B103834%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%201-2%2C%200.2%20bar?unique=c68c2b4)
|
Type number: 220.03-ES |
46.49 € | |
![[103832] RIEGLER Check valve inclined seat design stainless steel, G 1/4, 0.2 bar](/web/image/product.template/171793/image_128/%5B103832%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%201-4%2C%200.2%20bar?unique=d82f21a)
|
Type number: 220.01-ES |
46.49 € | |
![[103839] RIEGLER Check valve inclined seat design stainless steel, G 2, 0.2 bar](/web/image/product.template/171800/image_128/%5B103839%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%202%2C%200.2%20bar?unique=0f45889)
|
Type number: 220.08-ES |
147.21 € | |
![[103835] RIEGLER Check valve inclined seat design stainless steel, G 3/4, 0.2 bar](/web/image/product.template/171796/image_128/%5B103835%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%203-4%2C%200.2%20bar?unique=bca64c4)
|
Type number: 220.04-ES |
55.25 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

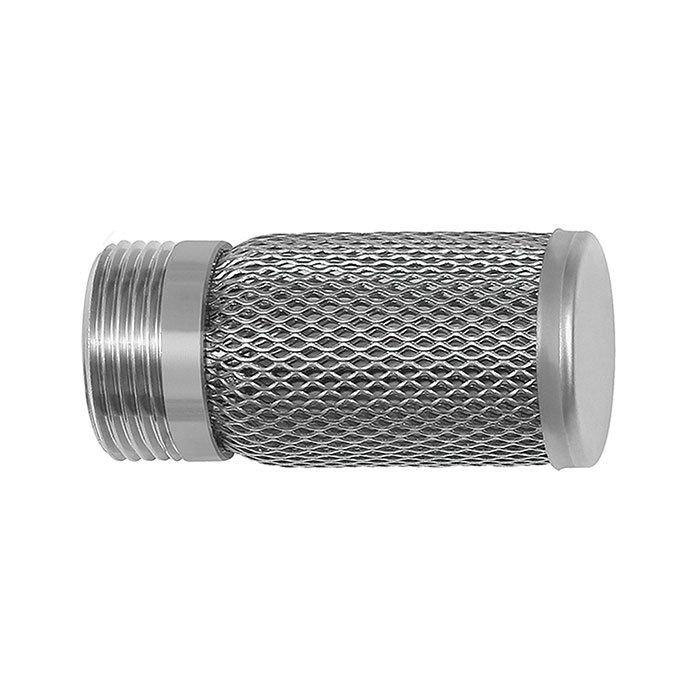

![[103859] RIEGLER Suction cage for check valve, Stainless steel 1.4301, G 3/8](/web/image/product.template/171820/image_128/%5B103859%5D%20RIEGLER%20Suction%20cage%20for%20check%20valve%2C%20Stainless%20steel%201.4301%2C%20G%203-8?unique=fa3a40b)
|
Type number: SKR-38 |
8.90 € | |
