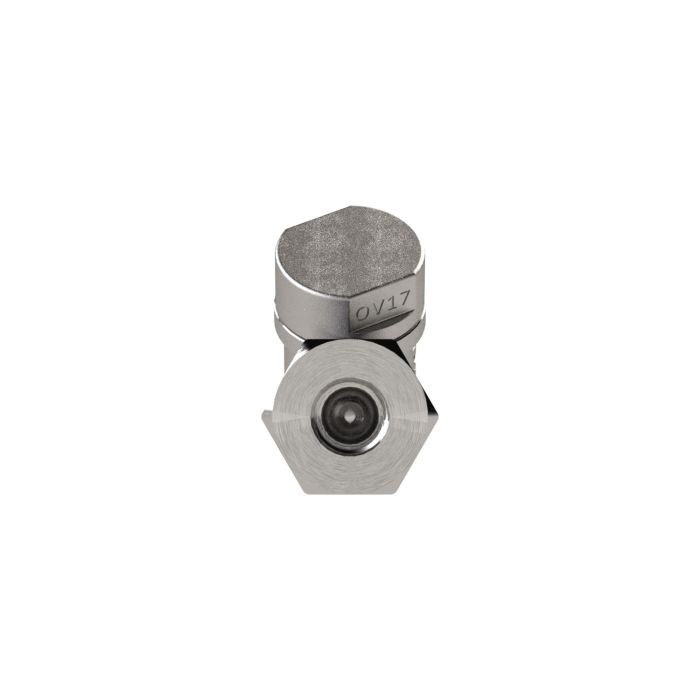

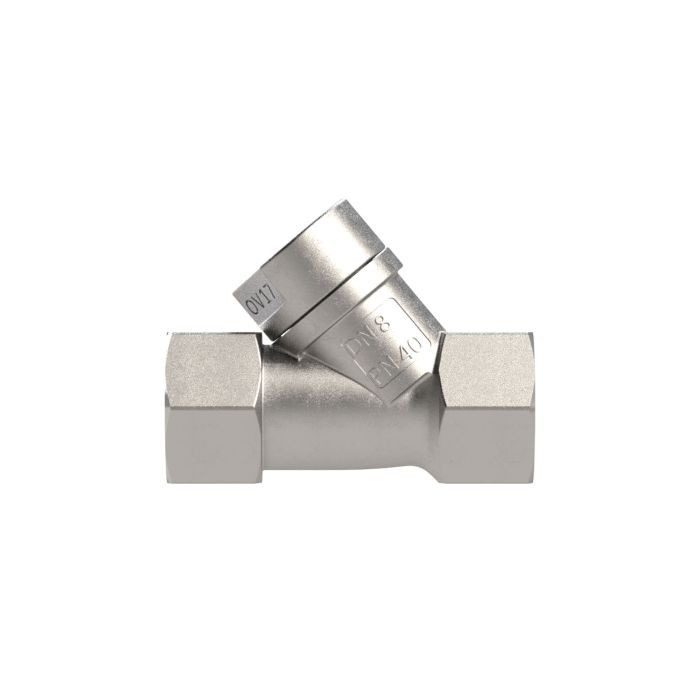

RIEGLER Check valve inclined seat design stainless steel, G 1 1/2, 0.2bar
Type number: 220.07-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Check valve made of stainless steel 1.4401 / 1.4408, for industrial systems, max. 40 bar - Type 220.07-ES
The RIEGLER non-return valve, angle seat design, ES, G 1 1/2, 0.2 bar regulates or blocks the flow of media in industrial pipelines. The housing is made of stainless steel 1.4401 / 1.4408 with FKM seals. Designed for a maximum operating pressure of 40 bar. The operating temperature is between -10 °C and 230 °C. Connection thread G 1 1/2 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Housing | Stainless steel 1.4401 / 1.4408 |
| Sealing material | FKM |
| Max. operating pressure | 40 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 230 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 230 °C |
| Opening pressure min. | 0.2 bar |
| Interior parts | Stainless steel 1.4401 / 1.4408 |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 230 °C |
| Thread | G 1 1/2 |
| SW | 55 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

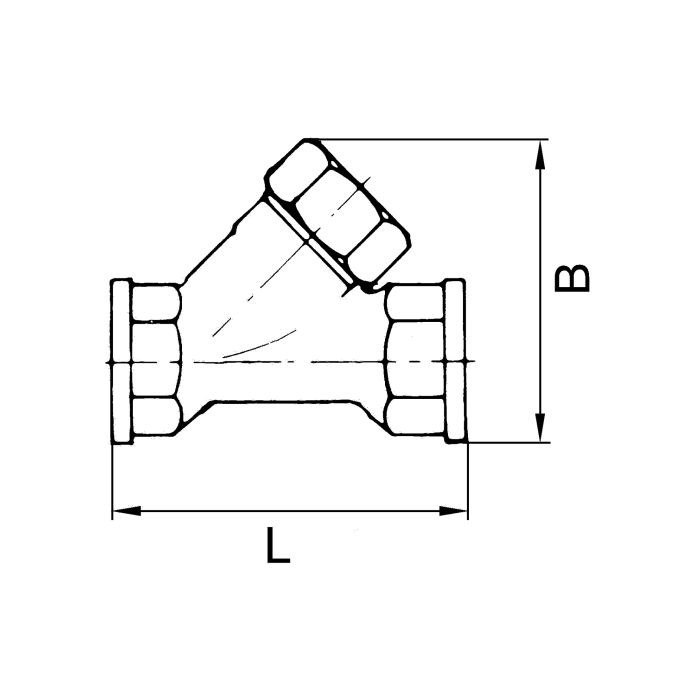

| B | 113 mm |
| L | 121 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103836] RIEGLER Check valve inclined seat design stainless steel, G 1, 0.2 bar](/web/image/product.template/171797/image_128/%5B103836%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%201%2C%200.2%20bar?unique=03763ad)
|
Type number: 220.05-ES |
65.70 € | |
![[103837] RIEGLER Check valve inclined seat design stainless steel, G 1 1/4, 0.2bar](/web/image/product.template/171798/image_128/%5B103837%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%201%201-4%2C%200.2bar?unique=9240991)
|
Type number: 220.06-ES |
76.78 € | |
![[103834] RIEGLER Check valve inclined seat design stainless steel, G 1/2, 0.2 bar](/web/image/product.template/171795/image_128/%5B103834%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%201-2%2C%200.2%20bar?unique=b1ad970)
|
Type number: 220.03-ES |
46.49 € | |
![[103832] RIEGLER Check valve inclined seat design stainless steel, G 1/4, 0.2 bar](/web/image/product.template/171793/image_128/%5B103832%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%201-4%2C%200.2%20bar?unique=1d5ecf3)
|
Type number: 220.01-ES |
46.49 € | |
![[103839] RIEGLER Check valve inclined seat design stainless steel, G 2, 0.2 bar](/web/image/product.template/171800/image_128/%5B103839%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%202%2C%200.2%20bar?unique=c4b9959)
|
Type number: 220.08-ES |
147.21 € | |
![[103835] RIEGLER Check valve inclined seat design stainless steel, G 3/4, 0.2 bar](/web/image/product.template/171796/image_128/%5B103835%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%203-4%2C%200.2%20bar?unique=7df9c22)
|
Type number: 220.04-ES |
55.25 € | |

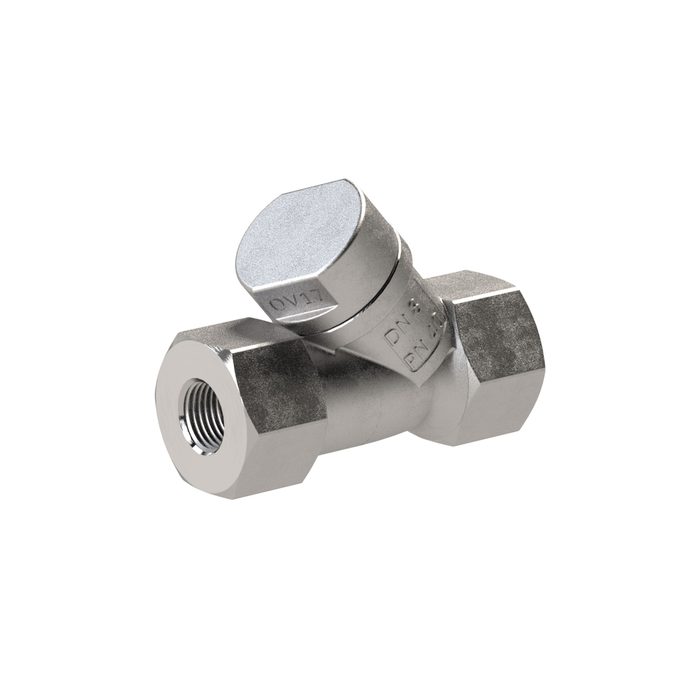

![[103833] RIEGLER Check valve inclined seat design stainless steel, G 3/8, 0.2 bar](/web/image/product.template/171794/image_128/%5B103833%5D%20RIEGLER%20Check%20valve%20inclined%20seat%20design%20stainless%20steel%2C%20G%203-8%2C%200.2%20bar?unique=bc7c8e8)
|
Type number: 220.02-ES |
46.49 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

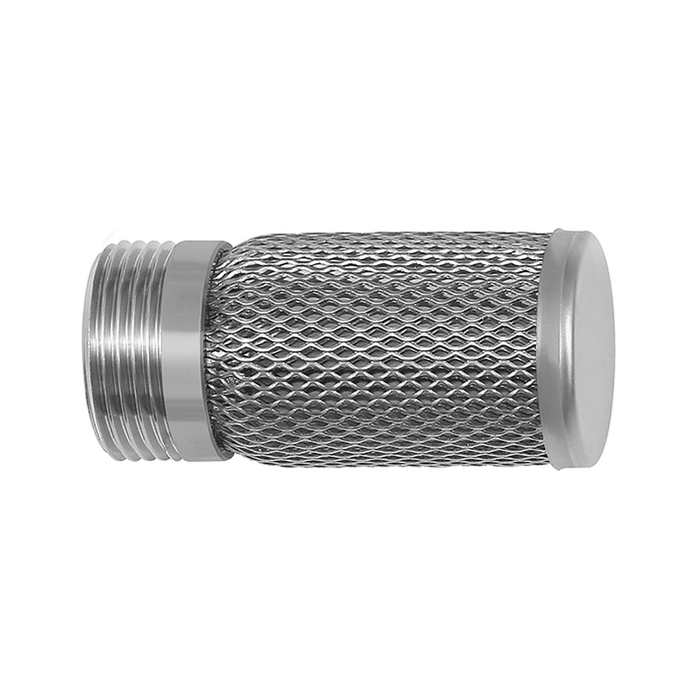

![[103864] RIEGLER Suction cage for check valve, Stainless steel 1.4301, G 1 1/2](/web/image/product.template/171825/image_128/%5B103864%5D%20RIEGLER%20Suction%20cage%20for%20check%20valve%2C%20Stainless%20steel%201.4301%2C%20G%201%201-2?unique=261c832)
|
