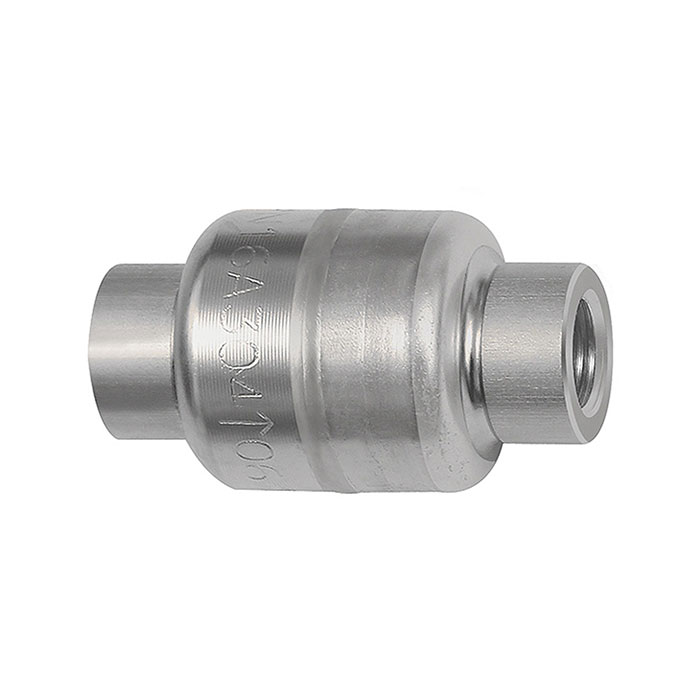

RIEGLER Check valve, Lightweight construction, Stainless steel, G 3/8
Type number: 228.38-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Check valve made of stainless steel 1.4301, for industrial systems, max. 16 bar - Type 228.38-ES
The RIEGLER non-return valve, lightweight design, ES 1.4301, G 3/8, 0.03 bar regulates or blocks the flow of media in industrial pipelines. The housing is made of stainless steel 1.4301 with FKM seals. Designed for a maximum operating pressure of 16 bar. The operating temperature is between -20 °C and 150 °C. G 3/8 connection thread - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Housing | Stainless steel 1.4301 |
| Sealing material | FKM |
| Max. operating pressure | 16 bar |
| Opening pressure min. | 0.03 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Spring | Stainless steel 1.4301 |
| Thread | G 3/8 |

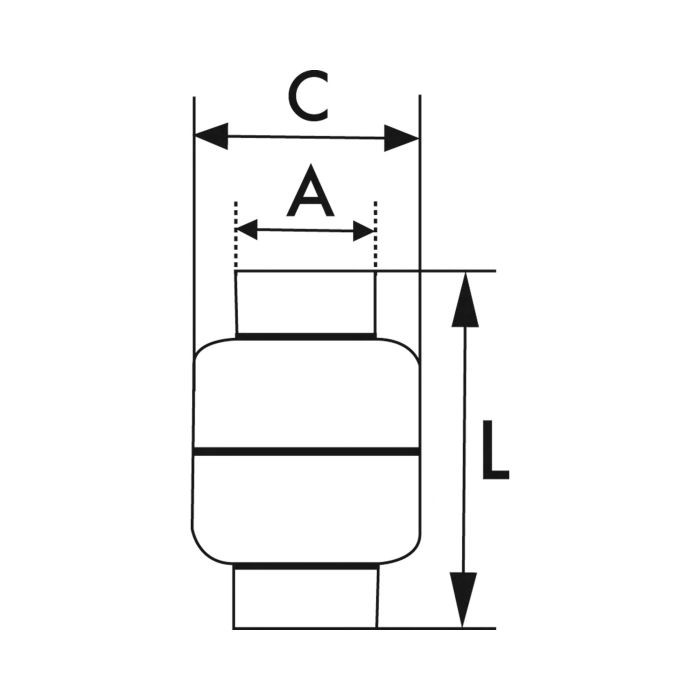

| A | 20 mm |
| C | 32 mm |
| L | 56 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103853] RIEGLER Check valve, Lightweight construction, Stainless steel, G 1](/web/image/product.template/171814/image_128/%5B103853%5D%20RIEGLER%20Check%20valve%2C%20Lightweight%20construction%2C%20Stainless%20steel%2C%20G%201?unique=f28ffd4)
|
Type number: 228.10-ES |
49.42 € | |
![[103855] RIEGLER Check valve, Lightweight construction, Stainless steel, G 1 1/2](/web/image/product.template/171816/image_128/%5B103855%5D%20RIEGLER%20Check%20valve%2C%20Lightweight%20construction%2C%20Stainless%20steel%2C%20G%201%201-2?unique=0c449e2)
|
Type number: 228.112-ES |
80.60 € | |

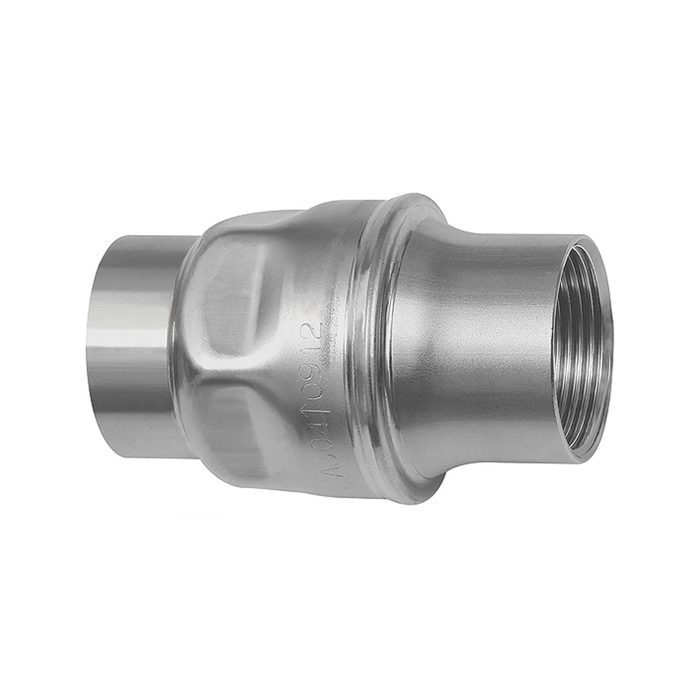

![[103854] RIEGLER Check valve, Lightweight construction, Stainless steel, G 1 1/4](/web/image/product.template/171815/image_128/%5B103854%5D%20RIEGLER%20Check%20valve%2C%20Lightweight%20construction%2C%20Stainless%20steel%2C%20G%201%201-4?unique=da6113a)
|
Type number: 228.114-ES |
68.91 € | |
![[103851] RIEGLER Check valve, Lightweight construction, Stainless steel, G 1/2](/web/image/product.template/171812/image_128/%5B103851%5D%20RIEGLER%20Check%20valve%2C%20Lightweight%20construction%2C%20Stainless%20steel%2C%20G%201-2?unique=49cd29e)
|
Type number: 228.12-ES |
32.78 € | |

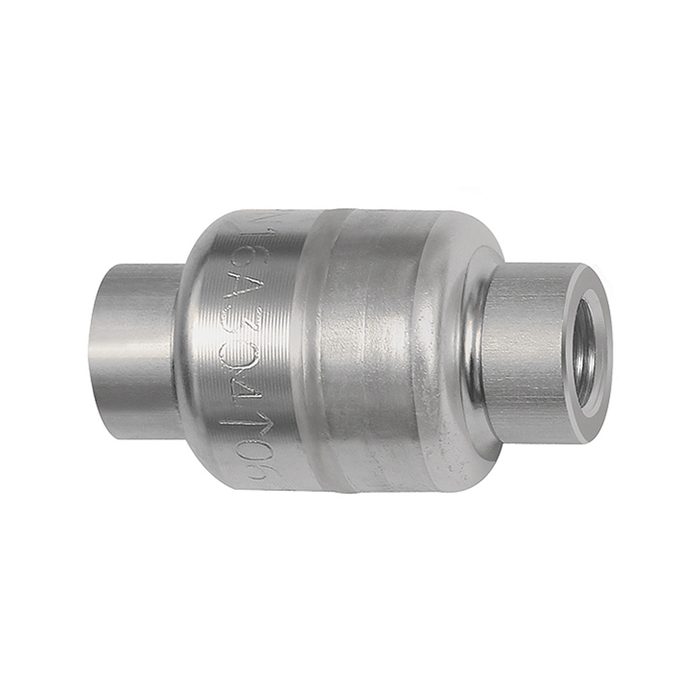

![[103849] RIEGLER Check valve, Lightweight construction, Stainless steel, G 1/4](/web/image/product.template/171810/image_128/%5B103849%5D%20RIEGLER%20Check%20valve%2C%20Lightweight%20construction%2C%20Stainless%20steel%2C%20G%201-4?unique=96b4a1c)
|
Type number: 228.14-ES |
32.00 € | |
![[103856] RIEGLER Check valve, Lightweight construction, Stainless steel, G 2](/web/image/product.template/171817/image_128/%5B103856%5D%20RIEGLER%20Check%20valve%2C%20Lightweight%20construction%2C%20Stainless%20steel%2C%20G%202?unique=b74e7e6)
|
Type number: 228.20-ES |
158.60 € | |
![[103852] RIEGLER Check valve, Lightweight construction, Stainless steel, G 3/4](/web/image/product.template/171813/image_128/%5B103852%5D%20RIEGLER%20Check%20valve%2C%20Lightweight%20construction%2C%20Stainless%20steel%2C%20G%203-4?unique=0463145)
|
Type number: 228.34-ES |
43.61 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

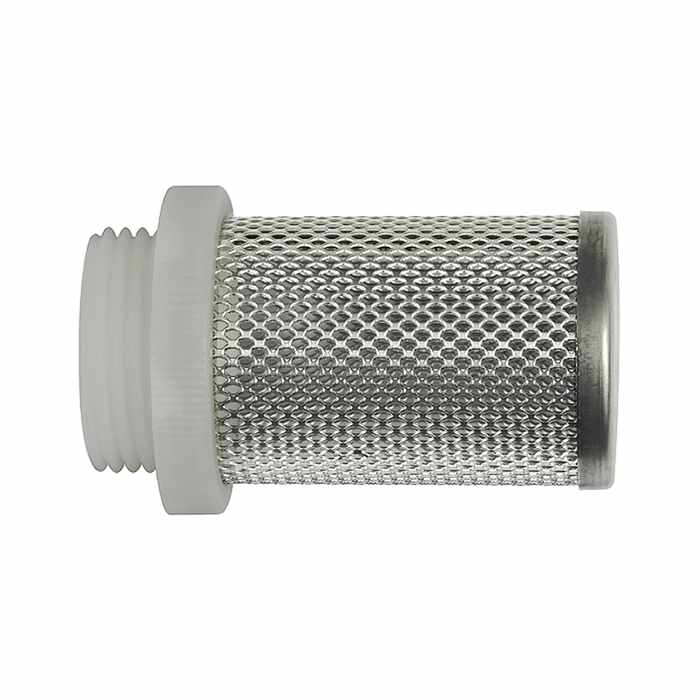

![[134052] RIEGLER Strainer f. check valves, G 2 1/2, Stainless steel 1.4301/Plastic](/web/image/product.template/205328/image_128/%5B134052%5D%20RIEGLER%20Strainer%20f.%20check%20valves%2C%20G%202%201-2%2C%20Stainless%20steel%201.4301-Plastic?unique=b14369b)
|
