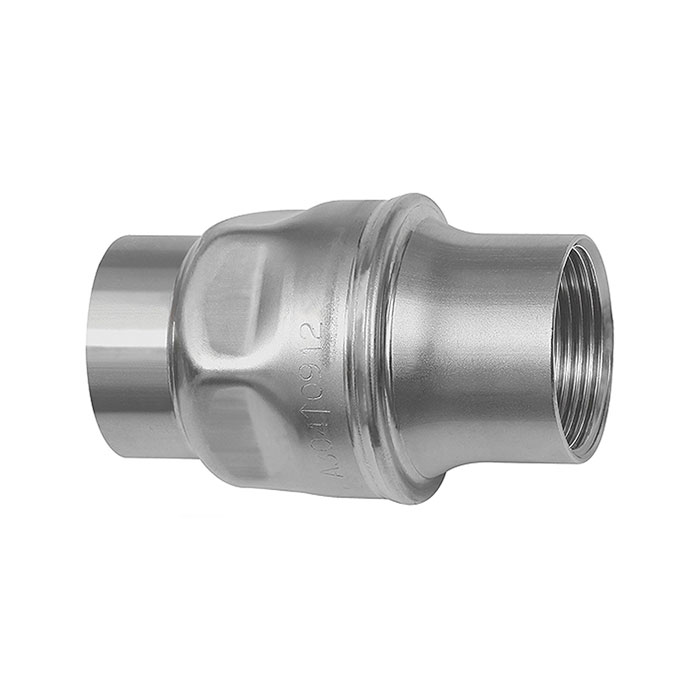

RIEGLER Check valve, Lightweight construction, Stainless steel, G 1 1/2
Type number: 228.112-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Non-return valve, lightweight design, ES 1.4301, operating temp. -20 °C to 150 °C, G 1 1/2, PN max. 16 bar, opening pressure 0.03 bar
| Housing | Stainless steel 1.4301 |
| Sealing material | FKM |
| Max. operating pressure | 16 bar |
| Opening pressure min. | 0.03 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Spring | Stainless steel 1.4301 |
| Thread | G 1 1/2 |

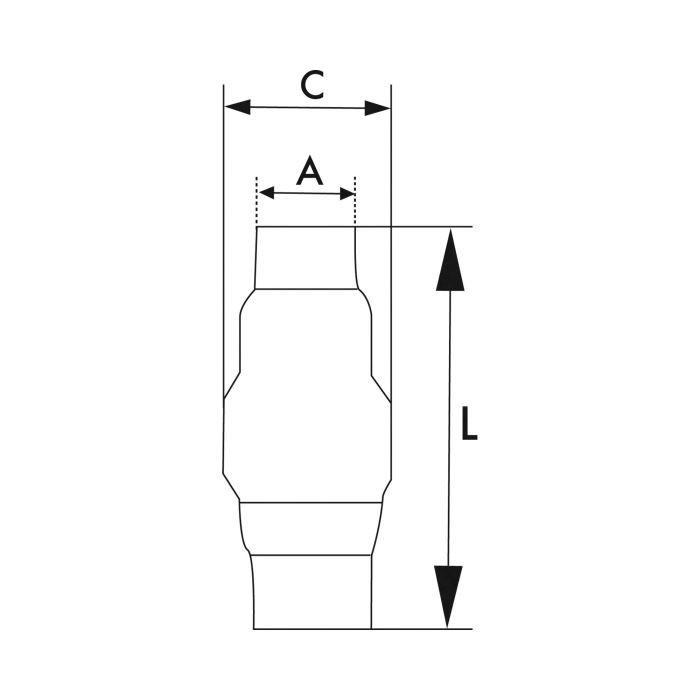

| A | 51 mm |
| C | 78 mm |
| L | 114 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103853] RIEGLER Check valve, Lightweight construction, Stainless steel, G 1](/web/image/product.template/171814/image_128/%5B103853%5D%20RIEGLER%20Check%20valve%2C%20Lightweight%20construction%2C%20Stainless%20steel%2C%20G%201?unique=ccd715c)
|
Type number: 228.10-ES |
49.42 € | |
![[103854] RIEGLER Check valve, Lightweight construction, Stainless steel, G 1 1/4](/web/image/product.template/171815/image_128/%5B103854%5D%20RIEGLER%20Check%20valve%2C%20Lightweight%20construction%2C%20Stainless%20steel%2C%20G%201%201-4?unique=6dbf8db)
|
Type number: 228.114-ES |
68.91 € | |
![[103851] RIEGLER Check valve, Lightweight construction, Stainless steel, G 1/2](/web/image/product.template/171812/image_128/%5B103851%5D%20RIEGLER%20Check%20valve%2C%20Lightweight%20construction%2C%20Stainless%20steel%2C%20G%201-2?unique=aed194e)
|
Type number: 228.12-ES |
32.78 € | |
![[103849] RIEGLER Check valve, Lightweight construction, Stainless steel, G 1/4](/web/image/product.template/171810/image_128/%5B103849%5D%20RIEGLER%20Check%20valve%2C%20Lightweight%20construction%2C%20Stainless%20steel%2C%20G%201-4?unique=aef459f)
|
Type number: 228.14-ES |
32.00 € | |
![[103856] RIEGLER Check valve, Lightweight construction, Stainless steel, G 2](/web/image/product.template/171817/image_128/%5B103856%5D%20RIEGLER%20Check%20valve%2C%20Lightweight%20construction%2C%20Stainless%20steel%2C%20G%202?unique=bf83298)
|
Type number: 228.20-ES |
158.60 € | |
![[103852] RIEGLER Check valve, Lightweight construction, Stainless steel, G 3/4](/web/image/product.template/171813/image_128/%5B103852%5D%20RIEGLER%20Check%20valve%2C%20Lightweight%20construction%2C%20Stainless%20steel%2C%20G%203-4?unique=ad2611e)
|
Type number: 228.34-ES |
43.61 € | |

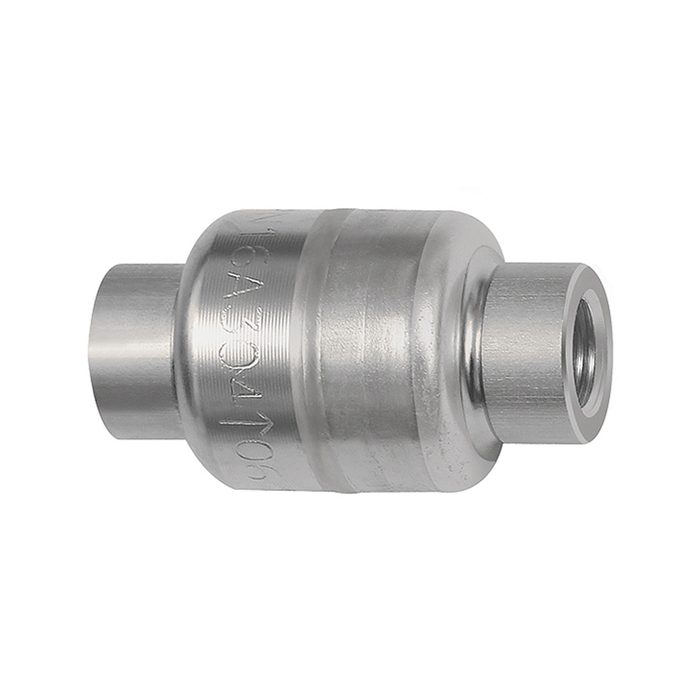

![[103850] RIEGLER Check valve, Lightweight construction, Stainless steel, G 3/8](/web/image/product.template/171811/image_128/%5B103850%5D%20RIEGLER%20Check%20valve%2C%20Lightweight%20construction%2C%20Stainless%20steel%2C%20G%203-8?unique=6163820)
|
Type number: 228.38-ES |
32.00 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

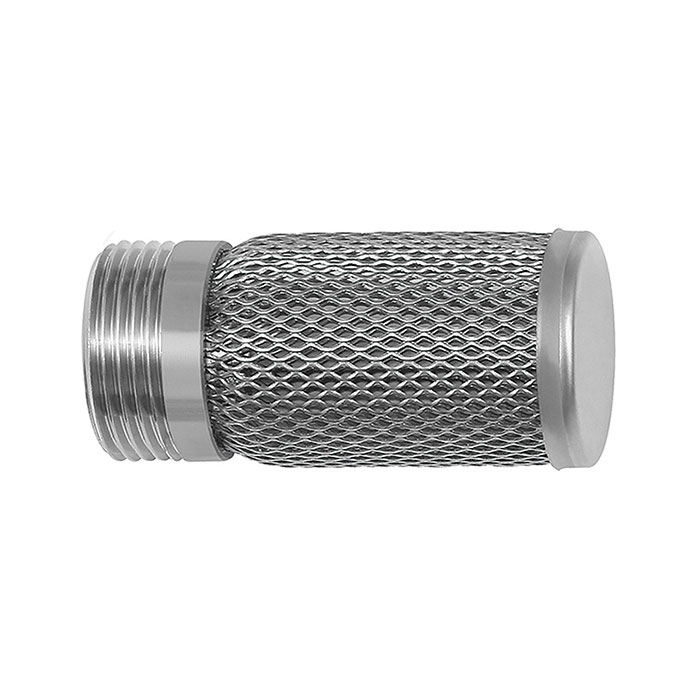

![[103864] RIEGLER Suction cage for check valve, Stainless steel 1.4301, G 1 1/2](/web/image/product.template/171825/image_128/%5B103864%5D%20RIEGLER%20Suction%20cage%20for%20check%20valve%2C%20Stainless%20steel%201.4301%2C%20G%201%201-2?unique=722b324)
|
Type number: SKR-112 |
17.31 € | |
