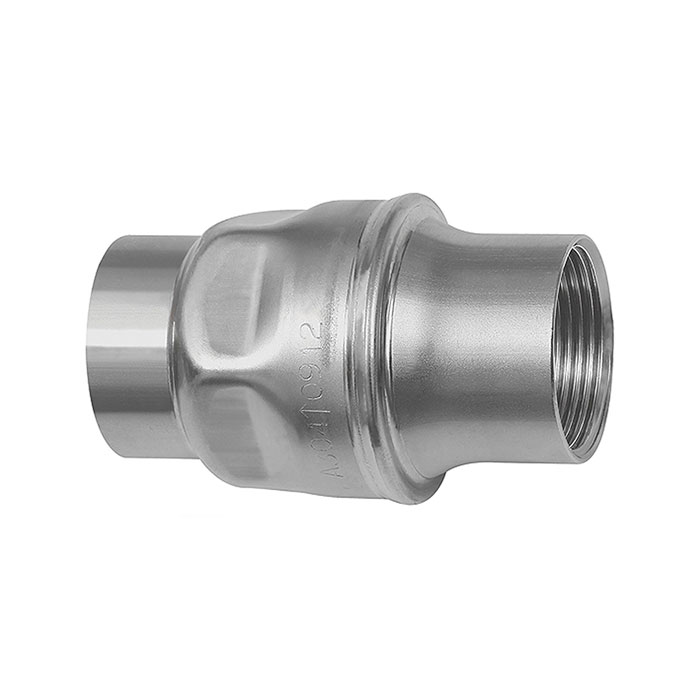

RIEGLER Check valve, Lightweight construction, Stainless steel, G 1
Type number: 228.10-ES
EAN: 4047322382519
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Non-return valve, lightweight design, ES 1.4301, operating temp. -20 °C to 150 °C, G 1, PN max. 16 bar, opening pressure 0.03 bar
| Housing | Stainless steel 1.4301 |
| Sealing material | FKM |
| Max. operating pressure | 16 bar |
| Opening pressure min. | 0.03 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Spring | Stainless steel 1.4301 |
| Thread | G 1 |

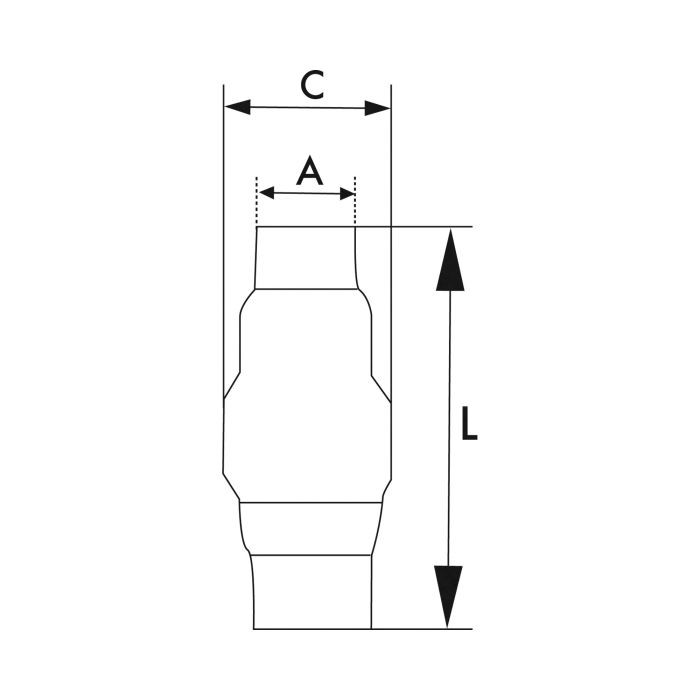

| A | 36 mm |
| C | 53 mm |
| L | 83.6 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
