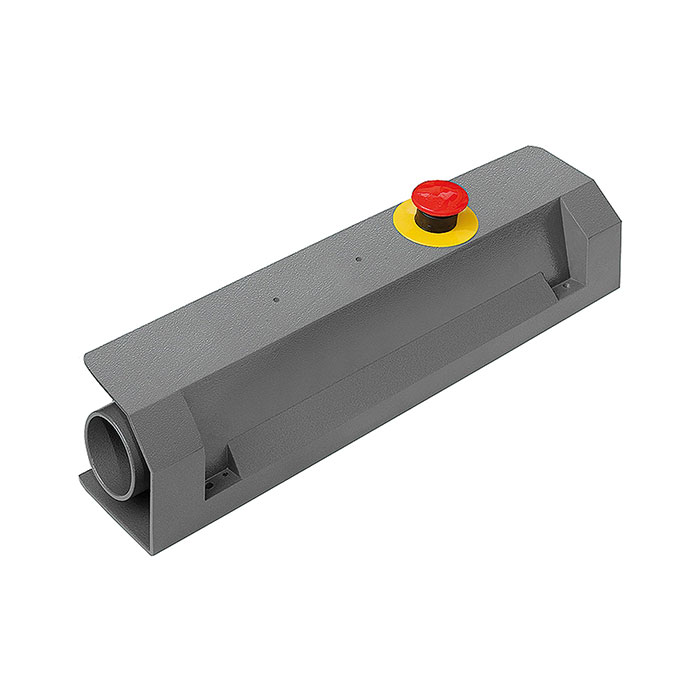

RIEGLER Two-handed safety console, complete, Quick-connect plug hose 4 mm
Type number: SK-85
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Two-hand safety console for pneumatic control, max. 8 bar - Type SK-85
The RIEGLER two-hand safety console, complete, connection hose 4 mm controls the direction, pressure or volume flow of the compressed air. The operating pressure range is 2.5 bar to 8 bar. The temperature range is between -10 °C and 60 °C. Connection thread quick connect hose 4 mm - suitable for common industry standards. Suitable for filtered, unlubricated compressed air. Precise control.
Field of application
Typical areas of application: Pneumatic controls and automation.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | filtered, unlubricated compressed air |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 8 bar |
| Flow rate at 6 bar and Î "p 1.0 bar | 85 Nl/min |
| max. time offset Input signals | 0.4 sec. |
| Actuation | pneumatic |
| Description of the | Two-hand safety console with safety valve |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | Quick connector hose 4 mm |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

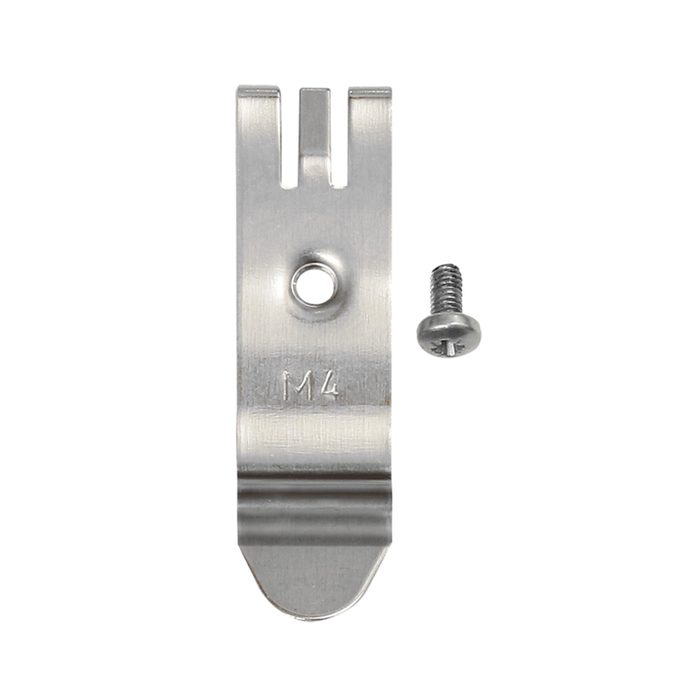

![[106713] RIEGLER Valve adapter for DIN rails](/web/image/product.template/175770/image_128/%5B106713%5D%20RIEGLER%20Valve%20adapter%20for%20DIN%20rails?unique=988a074)
|
Type number: SV-A |
3.70 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

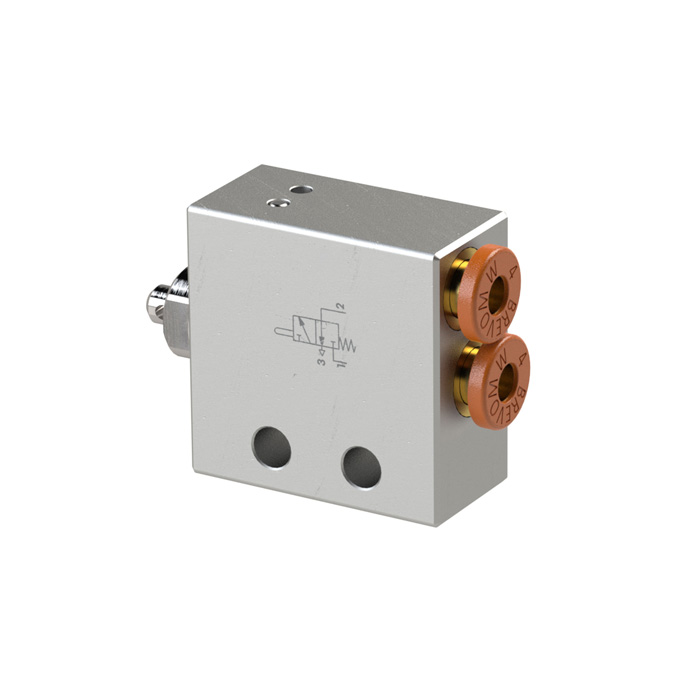

![[129902] RIEGLER 3/2-way miniature valve, mechanical, plunger, NC, 4 mm rear](/web/image/product.template/273114/image_128/%5B129902%5D%20RIEGLER%203-2-way%20miniature%20valve%2C%20mechanical%2C%20plunger%2C%20NC%2C%204%20mm%20rear?unique=81a87b6)
|
Type number: 511.131-H |
18.04 € | |
![[106385] RIEGLER 3/2-way miniature valve, Mechanical, Tappet, NO, 4 mm (side)](/web/image/product.template/175442/image_128/%5B106385%5D%20RIEGLER%203-2-way%20miniature%20valve%2C%20Mechanical%2C%20Tappet%2C%20NO%2C%204%20mm%20%28side%29?unique=7856009)
|
Type number: 511.121 |
21.03 € | |
![[106443] RIEGLER Adapter max. 2 valves, required for mounting on basic valve](/web/image/product.template/175500/image_128/%5B106443%5D%20RIEGLER%20Adapter%20max.%202%20valves%2C%20required%20for%20mounting%20on%20basic%20valve?unique=46f44d0)
|
Type number: A2V |
2.81 € | |
![[106444] RIEGLER Push button with red and black discs, monostable](/web/image/product.template/175501/image_128/%5B106444%5D%20RIEGLER%20Push%20button%20with%20red%20and%20black%20discs%2C%20monostable?unique=170ed8f)
|
Type number: DK-M |
12.17 € | |

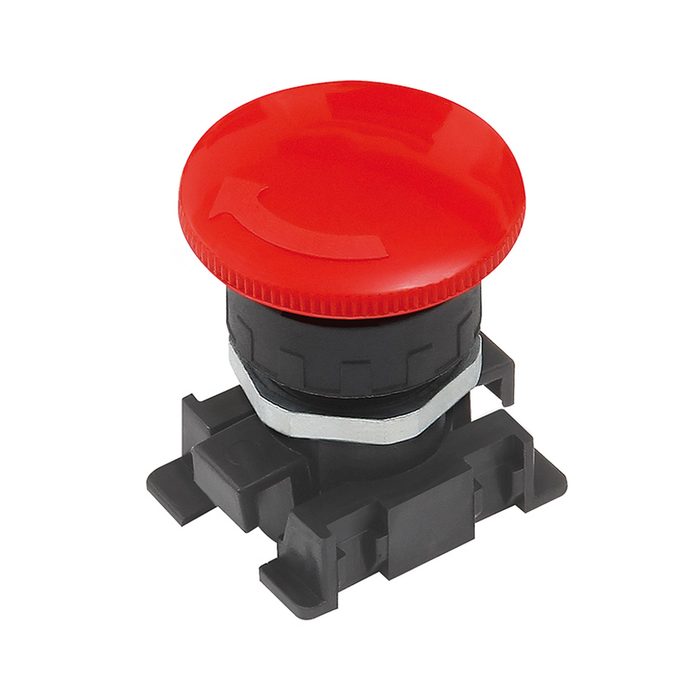

![[106457] RIEGLER Red palm button with emergency locking](/web/image/product.template/175514/image_128/%5B106457%5D%20RIEGLER%20Red%20palm%20button%20with%20emergency%20locking?unique=3b1cada)
|
Type number: RPT-NR |
28.51 € | |

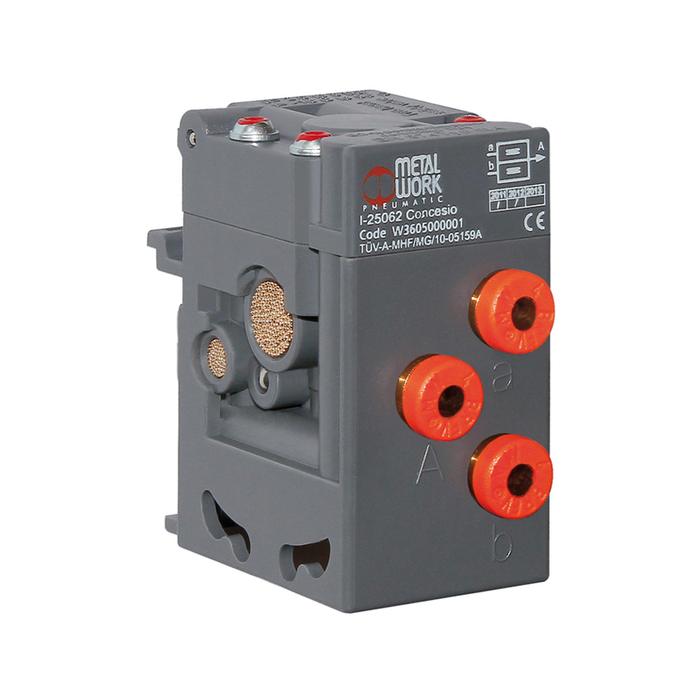

![[106712] RIEGLER Two-handed safety valve, without console, Quick-connect plug](/web/image/product.template/175769/image_128/%5B106712%5D%20RIEGLER%20Two-handed%20safety%20valve%2C%20without%20console%2C%20Quick-connect%20plug?unique=c436ae2)
|
