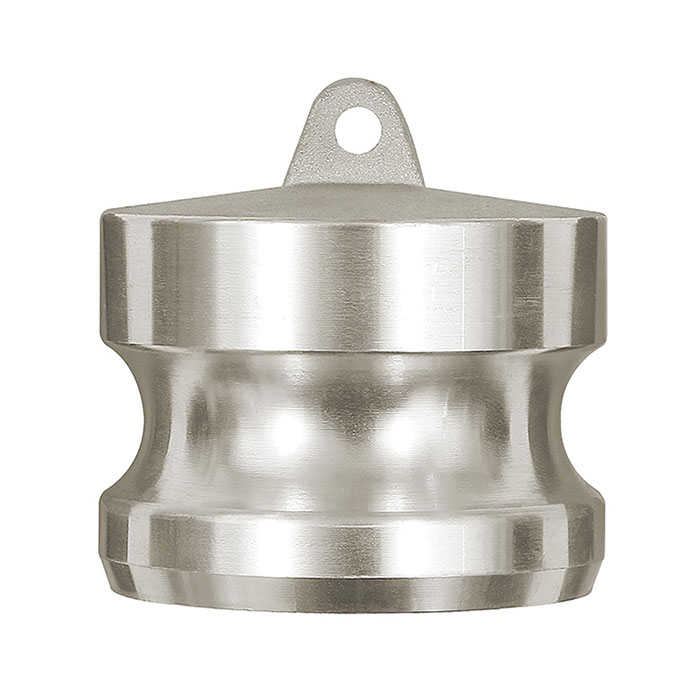

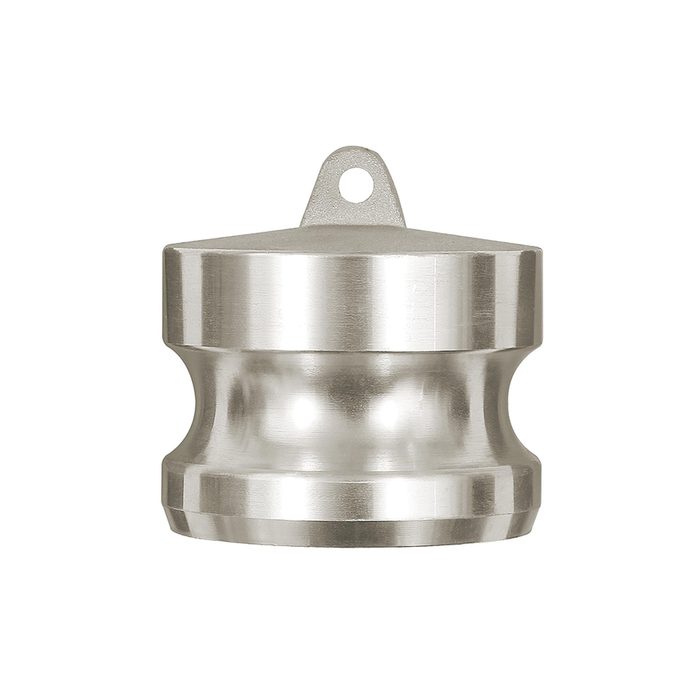

RIEGLER Kamlok cap plug, DP type, Aluminium, Size 3/4, Plug Ø 32
Type number: 1119.34
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
108082EAN :
4047322403702Category :
KAMLOK hose couplings & accessoriesWeight :
0.03 kgKamlok cap plug, DP type, Aluminium, Size 3/4, Plug Ø 32 mm, Operating pressure max. 16 bar, Temp. max. 68 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| BG | 45385 |
| Plug Ø | 32 mm |
| A | 32.1 mm |
| C | 38 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108085] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 1 1/2, Plug Ø 53](/web/image/product.template/191983/image_128/%5B108085%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%201%201-2%2C%20Plug%20%C3%98%2053?unique=2973c91)
|
Type number: 1119.112 |
3.20 € | |
![[108084] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 1 1/4, Plug Ø 45](/web/image/product.template/191982/image_128/%5B108084%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%201%201-4%2C%20Plug%20%C3%98%2045?unique=00521b7)
|
Type number: 1119.114 |
2.89 € | |
![[108083] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 1, Plug Ø 37](/web/image/product.template/191981/image_128/%5B108083%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%201%2C%20Plug%20%C3%98%2037?unique=bd76237)
|
Type number: 1119.10 |
2.50 € | |
![[108087] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 2 1/2, Plug Ø 76](/web/image/product.template/191985/image_128/%5B108087%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%202%201-2%2C%20Plug%20%C3%98%2076?unique=a07a8be)
|
Type number: 1119.212 |
6.18 € | |
![[108086] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 2, Plug Ø 63](/web/image/product.template/191984/image_128/%5B108086%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%202%2C%20Plug%20%C3%98%2063?unique=ed0af55)
|
Type number: 1119.20 |
4.28 € | |
![[108088] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 3, Plug Ø 92](/web/image/product.template/191986/image_128/%5B108088%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%203%2C%20Plug%20%C3%98%2092?unique=cd60e62)
|
Type number: 1119.30 |
7.58 € | |
![[108089] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 4, Plug Ø 120](/web/image/product.template/191987/image_128/%5B108089%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%204%2C%20Plug%20%C3%98%20120?unique=e88b28a)
|
Type number: 1119.40 |
11.26 € | |
