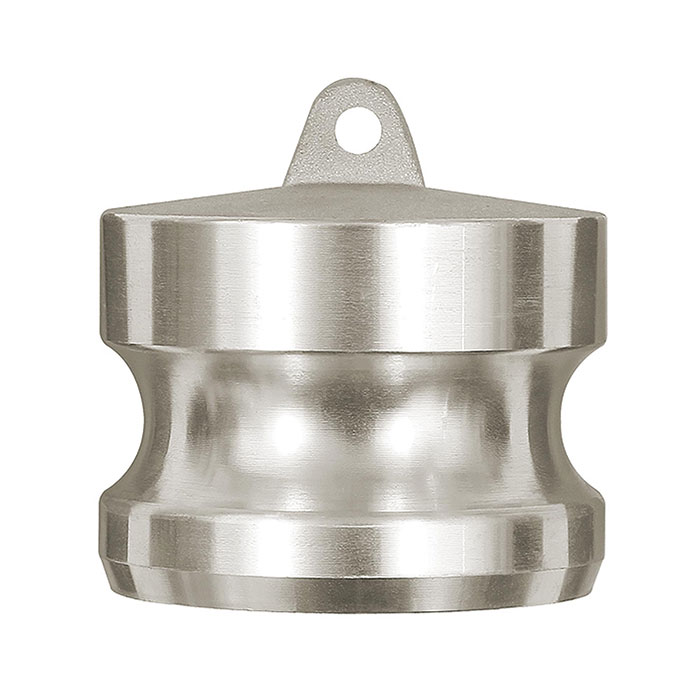

RIEGLER Kamlok cap plug, DP type, Aluminium, Size 4, Plug Ø 120
Type number: 1119.40
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108089EAN :
4047322403771Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.63 kgRIEGLER Kamlok plug for compressed air supply, max. 16 bar - Type 1119.40
The RIEGLER Kamlok plug, type DP, aluminum, BG 4, plug Ø 120 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 68 °C. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| BG | 4 |
| Plug Ø | 120 mm |
| A | 119.5 mm |
| C | 69.8 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

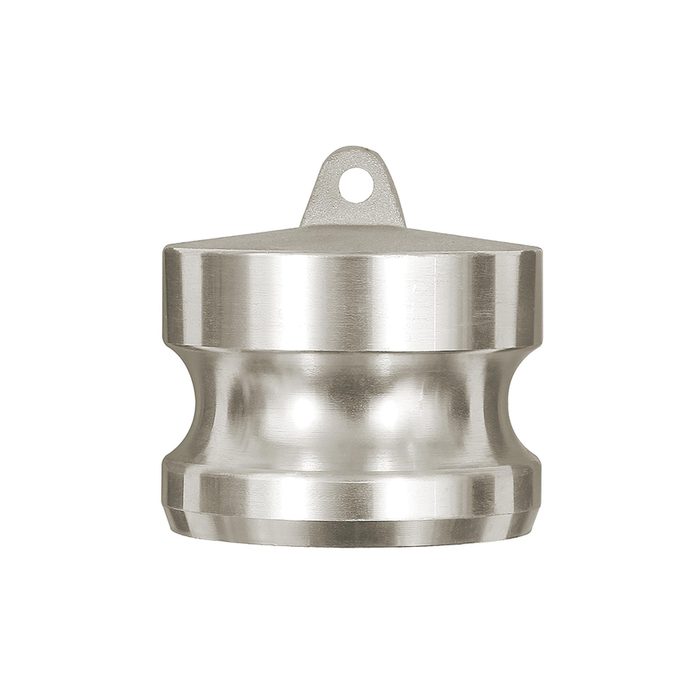

![[108085] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 1 1/2, Plug Ø 53](/web/image/product.template/191983/image_128/%5B108085%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%201%201-2%2C%20Plug%20%C3%98%2053?unique=3dc10bb)
|
