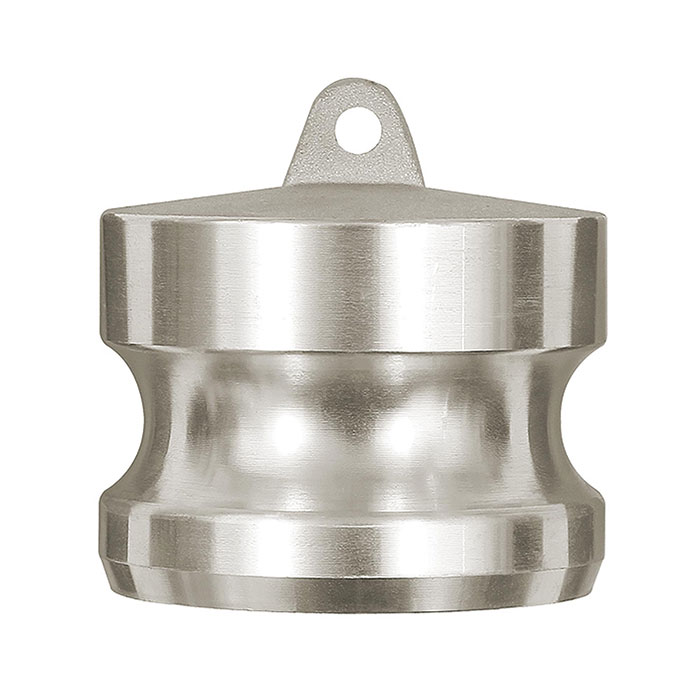

RIEGLER Kamlok cap plug, DP type, Aluminium, Size 2 1/2, Plug Ø 76
Type number: 1119.212
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108087EAN :
4047322403757Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.24 kgRIEGLER Kamlok plug for compressed air supply, max. 16 bar - Type 1119.212
The RIEGLER Kamlok plug, type DP, aluminum, BG 2 1/2, plug Ø 76 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 68 °C. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| BG | 2,5 |
| Plug Ø | 76 mm |
| A | 57.7 mm |
| C | 67.5 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108085] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 1 1/2, Plug Ø 53](/web/image/product.template/191983/image_128/%5B108085%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%201%201-2%2C%20Plug%20%C3%98%2053?unique=3dc10bb)
|
Type number: 1119.112 |
3.20 € | |

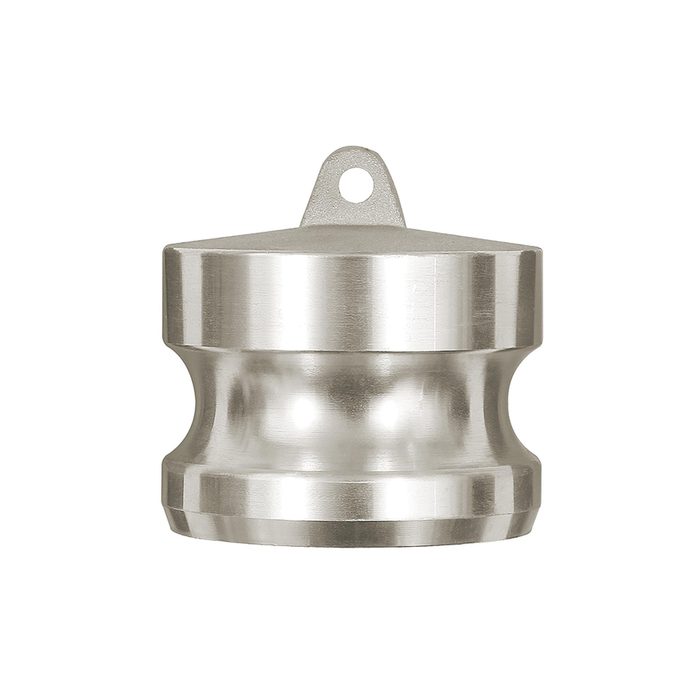

![[108084] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 1 1/4, Plug Ø 45](/web/image/product.template/191982/image_128/%5B108084%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%201%201-4%2C%20Plug%20%C3%98%2045?unique=344da01)
|
Type number: 1119.114 |
2.89 € | |
![[108083] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 1, Plug Ø 37](/web/image/product.template/191981/image_128/%5B108083%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%201%2C%20Plug%20%C3%98%2037?unique=ef98185)
|
Type number: 1119.10 |
2.46 € | |
![[108086] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 2, Plug Ø 63](/web/image/product.template/191984/image_128/%5B108086%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%202%2C%20Plug%20%C3%98%2063?unique=352166c)
|
Type number: 1119.20 |
4.28 € | |
![[108082] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 3/4, Plug Ø 32](/web/image/product.template/191980/image_128/%5B108082%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%203-4%2C%20Plug%20%C3%98%2032?unique=3b71193)
|
Type number: 1119.34 |
2.30 € | |
![[108088] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 3, Plug Ø 92](/web/image/product.template/191986/image_128/%5B108088%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%203%2C%20Plug%20%C3%98%2092?unique=f118070)
|
Type number: 1119.30 |
7.46 € | |
![[108089] RIEGLER Kamlok cap plug, DP type, Aluminium, Size 4, Plug Ø 120](/web/image/product.template/191987/image_128/%5B108089%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20Aluminium%2C%20Size%204%2C%20Plug%20%C3%98%20120?unique=6436310)
|
Type number: 1119.40 |
11.08 € | |
