RIEGLER Storz coupling, for shell binding, Brass, Storz size 25-D, I.D.19
Type number: 2402.3119
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Storz coupling made of brass, for compressed air supply, max. 16 bar - Type 2402.3119
The RIEGLER Storz coupling, spigot, shell cover, MS, size 25-D, LW 19 connects hoses quickly using the proven Storz system - symmetrical design. The housing is made of brass with NBR seals. Designed for a maximum operating pressure of 16 bar. The operating temperature is between -40 °C and 110 °C. Symmetrical coupling - each side fits on each side.
Field of application
Typical areas of application: Fire department, construction site and water technology.
| Sealing material | NBR |
| Max. operating pressure | 16 bar |
| Material | Brass |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 110 °C |
| Length | 74 mm |
| Storz size | 25-D |
| Bend spacing | 31 mm |
| Hose LW | 19 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108201] RIEGLER Storz coupling, for shell binding, Alu, Storz size 110-A, I.D.100](/web/image/product.template/192099/image_128/%5B108201%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20Alu%2C%20Storz%20size%20110-A%2C%20I.D.100?unique=5c73515)
|
Type number: 2402.133100 |
68.46 € | |

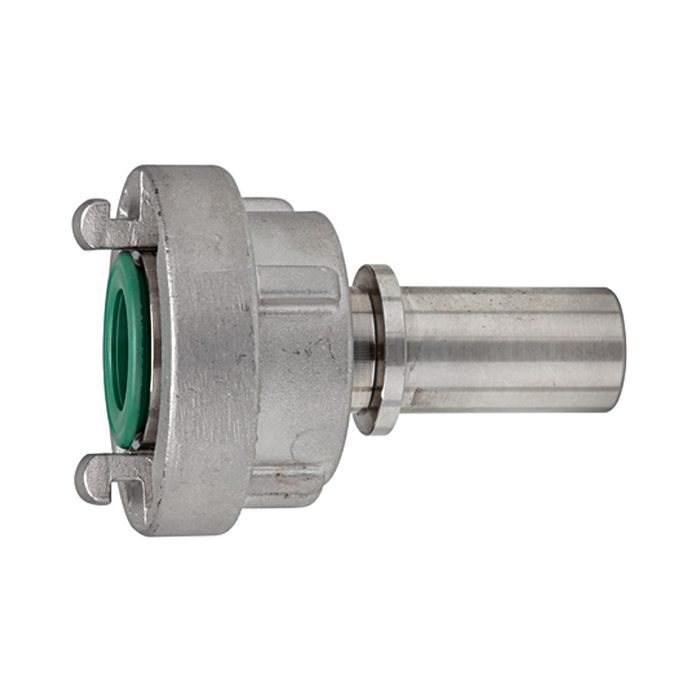

![[108198] RIEGLER Storz coupling, for shell binding, Alu, Storz size 52-C, I.D. 38](/web/image/product.template/192096/image_128/%5B108198%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20Alu%2C%20Storz%20size%2052-C%2C%20I.D.%2038?unique=80a608a)
|
Type number: 2402.6638 |
34.57 € | |

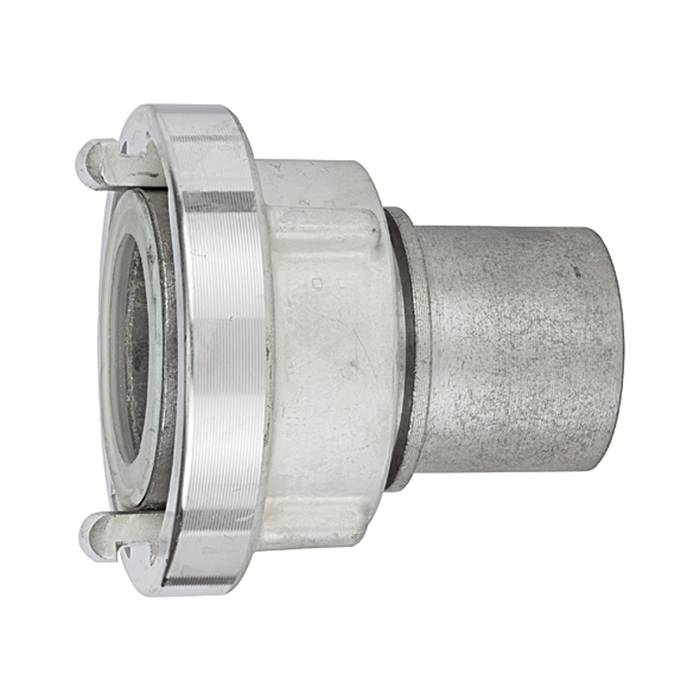

![[108199] RIEGLER Storz coupling, for shell binding, Alu, Storz size 52-C, I.D. 50](/web/image/product.template/192097/image_128/%5B108199%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20Alu%2C%20Storz%20size%2052-C%2C%20I.D.%2050?unique=18dbec3)
|
