RIEGLER Storz coupling, for shell binding, Brass, Storz size 25-D, I.D.25
Type number: 2402.3125
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Storz-Kupplung, Schlauchstutzen, für Schaleneinband, drehbar, MS, Storz-Größe 25-D, LW 25, PN max. 16 bar, Temp. -40 °C bis 110 °C
| Sealing material | NBR |
| Max. operating pressure | 16 bar |
| Material | Brass |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 110 °C |
| Length | 74 mm |
| Storz size | 25-D |
| Bend spacing | 31 mm |
| Hose LW | 25 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108201] RIEGLER Storz coupling, for shell binding, Alu, Storz size 110-A, I.D.100](/web/image/product.template/192099/image_128/%5B108201%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20Alu%2C%20Storz%20size%20110-A%2C%20I.D.100?unique=2242fe8)
|
Type number: 2402.133100 |
68.46 € | |

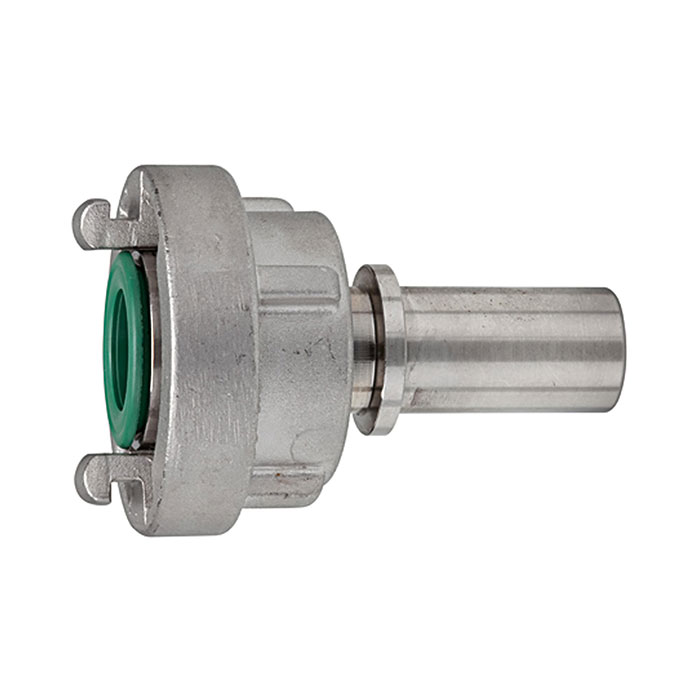

![[108198] RIEGLER Storz coupling, for shell binding, Alu, Storz size 52-C, I.D. 38](/web/image/product.template/192096/image_128/%5B108198%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20Alu%2C%20Storz%20size%2052-C%2C%20I.D.%2038?unique=8aec349)
|
Type number: 2402.6638 |
34.58 € | |

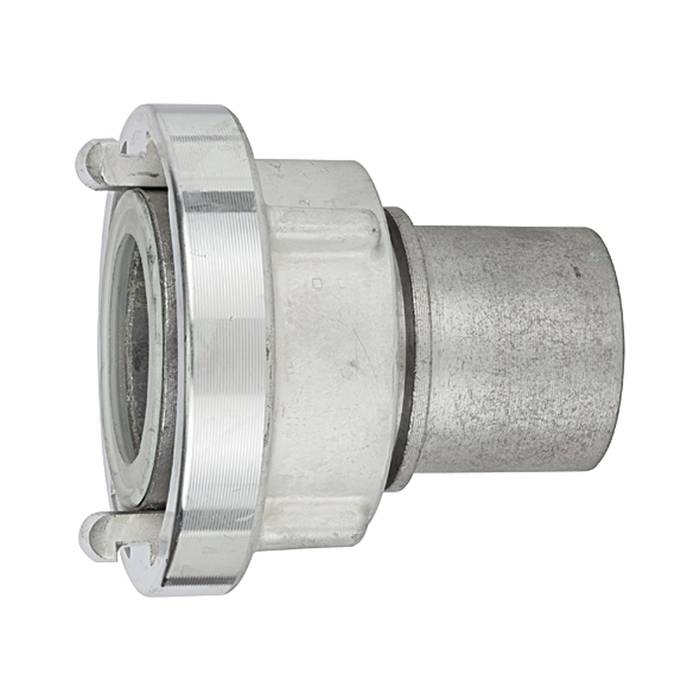

![[108199] RIEGLER Storz coupling, for shell binding, Alu, Storz size 52-C, I.D. 50](/web/image/product.template/192097/image_128/%5B108199%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20Alu%2C%20Storz%20size%2052-C%2C%20I.D.%2050?unique=797155f)
|
Type number: 2402.6650 |
19.94 € | |
![[108200] RIEGLER Storz coupling, for shell binding, Alu, Storz size 75-B, I.D. 75](/web/image/product.template/192098/image_128/%5B108200%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20Alu%2C%20Storz%20size%2075-B%2C%20I.D.%2075?unique=427fb6f)
|
Type number: 2402.8975 |
29.99 € | |
![[108196] RIEGLER Storz coupling, for shell binding, Brass, Storz size 25-D, I.D.19](/web/image/product.template/192094/image_128/%5B108196%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20Brass%2C%20Storz%20size%2025-D%2C%20I.D.19?unique=e7443bf)
|
Type number: 2402.3119 |
51.88 € | |
