RIEGLER Storz coupling, for shell binding, Alu, Storz size 110-A, I.D.100
Type number: 2402.133100
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Storz coupling made of aluminum, for compressed air supply, max. 16 bar - Type 2402.133100
The RIEGLER Storz coupling, spigot, shell cover, aluminum, size 110-A, LW 100 connects hoses quickly using the proven Storz system - symmetrical design. The housing is made of aluminum with NBR seals. Designed for a maximum operating pressure of 16 bar. The operating temperature is between -40 °C and 110 °C. Symmetrical coupling - each side fits on each side.
Field of application
Typical areas of application: Fire department, construction site and water technology.
| Sealing material | NBR |
| Max. operating pressure | 16 bar |
| Material | Aluminum |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 110 °C |
| Length | 157 mm |
| Storz size | 110-A |
| Bend spacing | 133 mm |
| Hose LW | 100 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108198] RIEGLER Storz coupling, for shell binding, Alu, Storz size 52-C, I.D. 38](/web/image/product.template/192096/image_128/%5B108198%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20Alu%2C%20Storz%20size%2052-C%2C%20I.D.%2038?unique=8a8271d)
|
Type number: 2402.6638 |
34.57 € | |
![[108199] RIEGLER Storz coupling, for shell binding, Alu, Storz size 52-C, I.D. 50](/web/image/product.template/192097/image_128/%5B108199%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20Alu%2C%20Storz%20size%2052-C%2C%20I.D.%2050?unique=b54ccd2)
|
Type number: 2402.6650 |
19.62 € | |

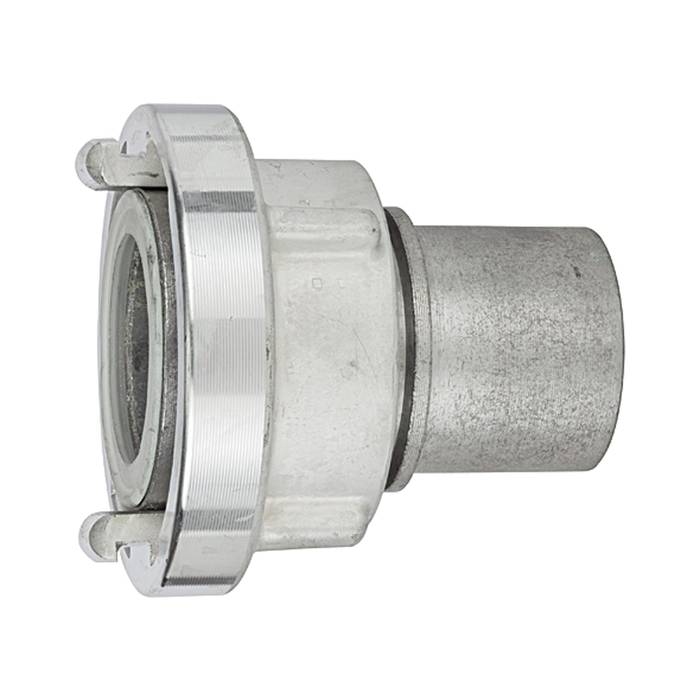

![[108200] RIEGLER Storz coupling, for shell binding, Alu, Storz size 75-B, I.D. 75](/web/image/product.template/192098/image_128/%5B108200%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20Alu%2C%20Storz%20size%2075-B%2C%20I.D.%2075?unique=537c084)
|
Type number: 2402.8975 |
29.50 € | |

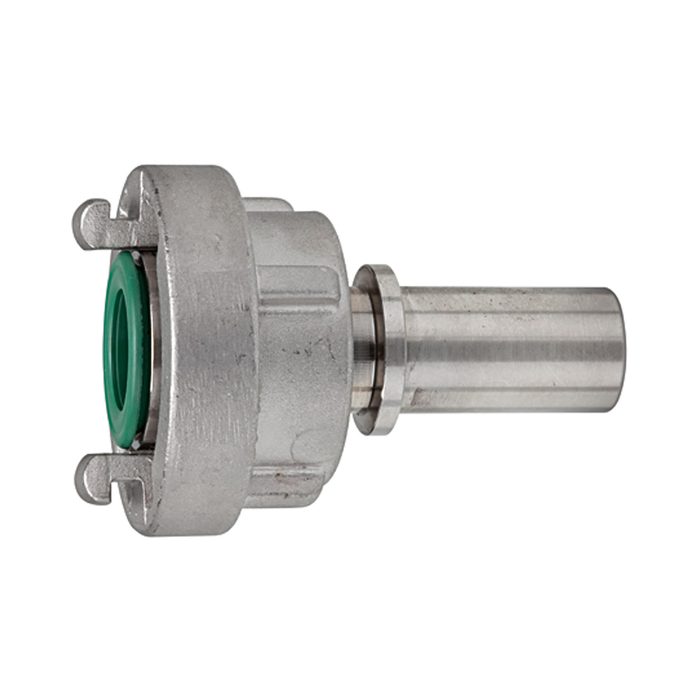

![[108196] RIEGLER Storz coupling, for shell binding, Brass, Storz size 25-D, I.D.19](/web/image/product.template/192094/image_128/%5B108196%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20Brass%2C%20Storz%20size%2025-D%2C%20I.D.19?unique=6bd4e32)
|
Type number: 2402.3119 |
51.04 € | |

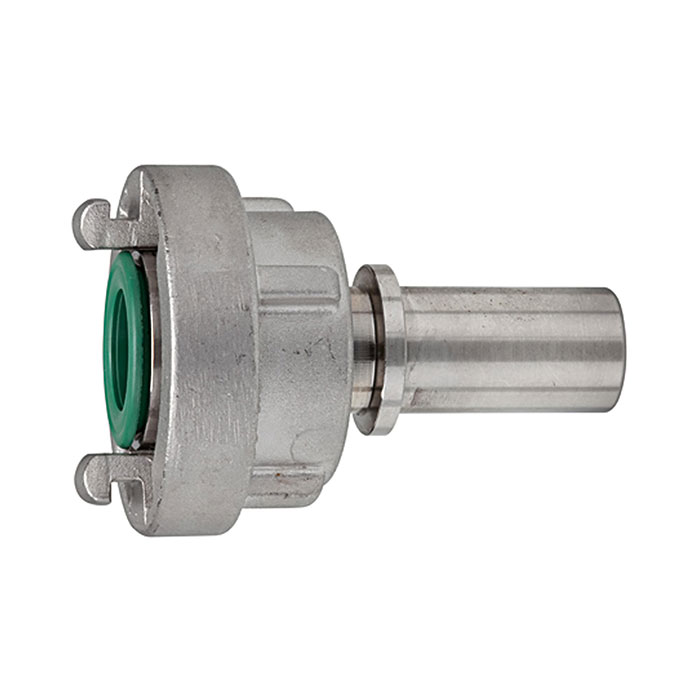

![[108197] RIEGLER Storz coupling, for shell binding, Brass, Storz size 25-D, I.D.25](/web/image/product.template/192095/image_128/%5B108197%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20Brass%2C%20Storz%20size%2025-D%2C%20I.D.25?unique=304c5dc)
|
