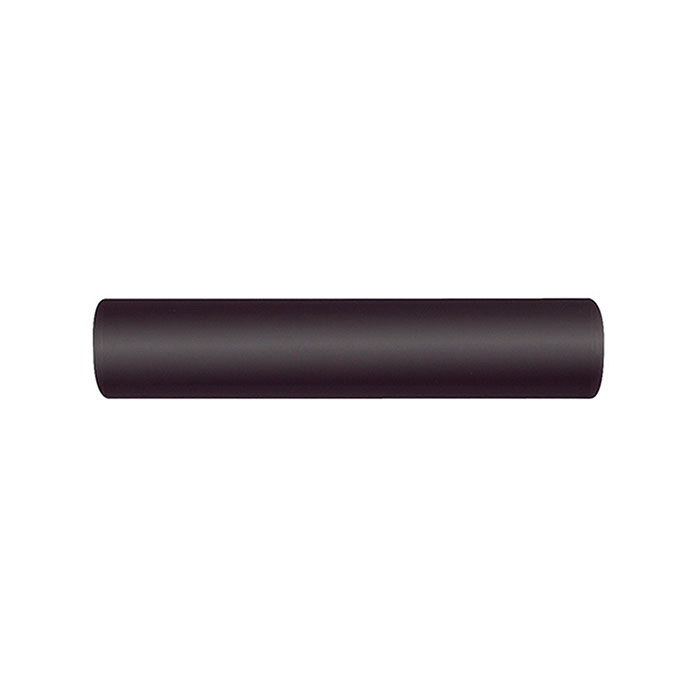

RIEGLER Plug nipple »Blue Series«, plug nipple 6 mm
Type number: 178.006
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Plug-in nipple "Blue series" made of plastic, for pneumatic installation, max. 10 bar - Type 178.006
The RIEGLER plug-in nipple "Blue series", plug-in nipple 6 mm enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Plug nipple | 6 mm |
| L1 | 38 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
