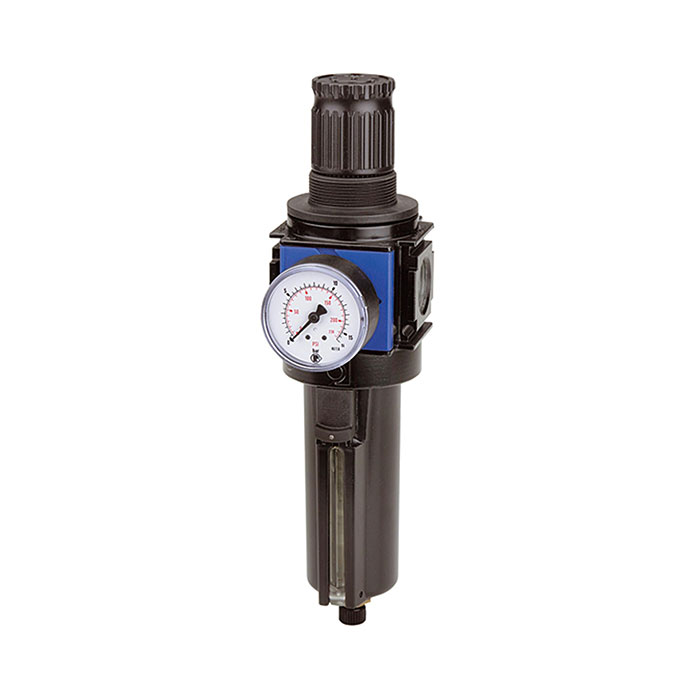

RIEGLER Filter regulator »variobloc« with metal container, Size 1, G 1/4
Type number: VFR 23 M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter regulator »variobloc«, Metal container incl. viewing tube and pressure gauge, Size 1, G 1/4, Input pressure max. 20 bar
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Filter fineness | 40 µm |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Spring cover | POM |
| Thread | G 1/4 |
| Flow rate | 2000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 1 |
| A | 48 mm |
| B | 203 mm |
| C | 68 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125311] RIEGLER Filter regulator »variobloc« with metal container, Size 1, G 3/8](/web/image/product.template/202454/image_128/%5B125311%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%201%2C%20G%203-8?unique=d716f31)
|
Type number: VFR 33 M |
152.63 € | |
![[125314] RIEGLER Filter regulator »variobloc« with metal container, Size 2, G 1](/web/image/product.template/202457/image_128/%5B125314%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%201?unique=8076657)
|
Type number: VFR 63 M |
138.10 € | |
![[125312] RIEGLER Filter regulator »variobloc« with metal container, Size 2, G 1/2](/web/image/product.template/202455/image_128/%5B125312%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%201-2?unique=8076657)
|
Type number: VFR 43 M |
110.49 € | |
![[125313] RIEGLER Filter regulator »variobloc« with metal container, Size 2, G 3/4](/web/image/product.template/202456/image_128/%5B125313%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%203-4?unique=287e775)
|
Type number: VFR 53 M |
165.74 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100662] RIEGLER Polycarbonate container with manual bleeder valve](/web/image/product.template/140097/image_128/%5B100662%5D%20RIEGLER%20Polycarbonate%20container%20with%20manual%20bleeder%20valve?unique=62f43ad)
|
Type number: VZ 501 |
19.05 € | |

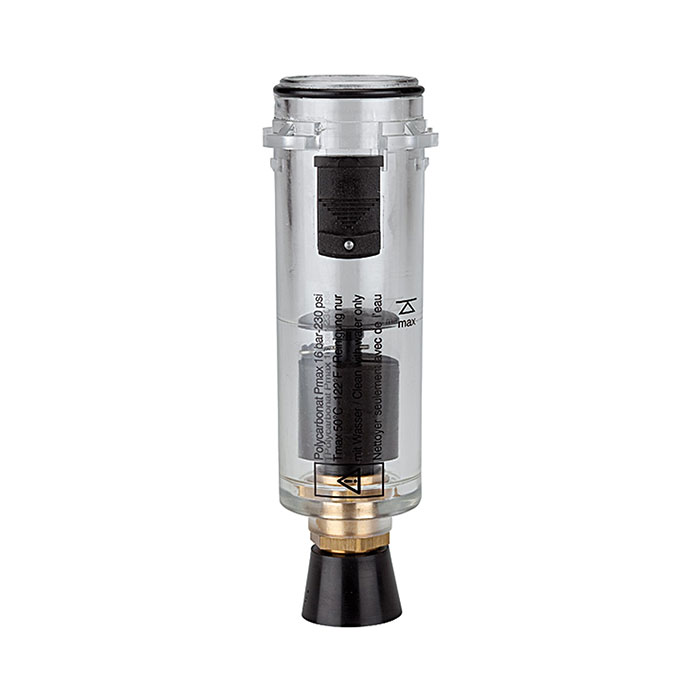

![[100664] RIEGLER PC container, Automatic bleeder valve (integrated design)](/web/image/product.template/140099/image_128/%5B100664%5D%20RIEGLER%20PC%20container%2C%20Automatic%20bleeder%20valve%20%28integrated%20design%29?unique=4d0fed9)
|
Type number: VZ 511 |
34.76 € | |

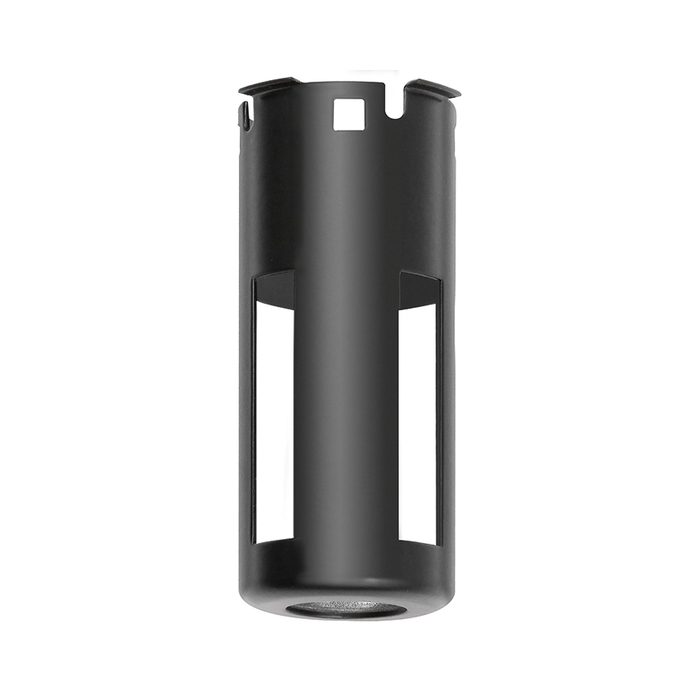

![[100666] RIEGLER Protective cage, for »variobloc«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140101/image_128/%5B100666%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=b0f5820)
|
Type number: VZ 531 |
14.48 € | |

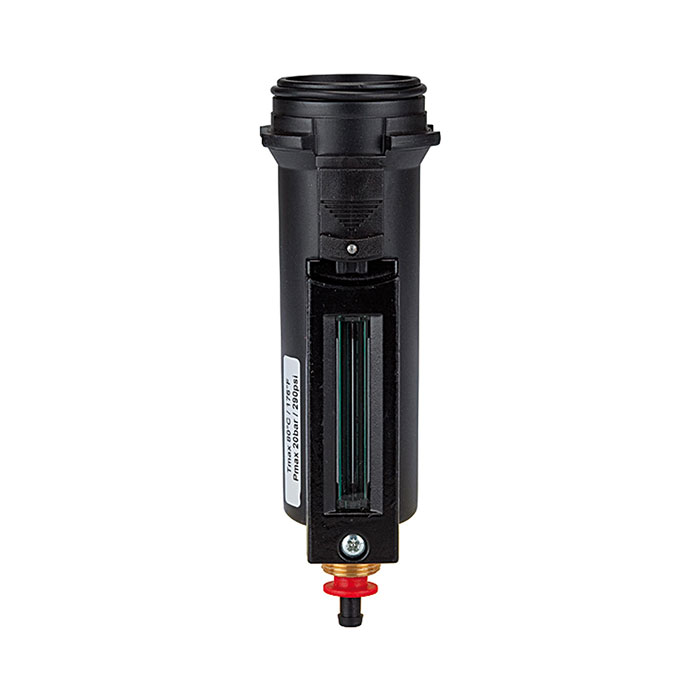

![[100670] RIEGLER Metal container incl. viewing tube, Automatic bleeder valve](/web/image/product.template/140105/image_128/%5B100670%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20Automatic%20bleeder%20valve?unique=1727ae7)
|
Type number: VZ 561 |
65.16 € | |

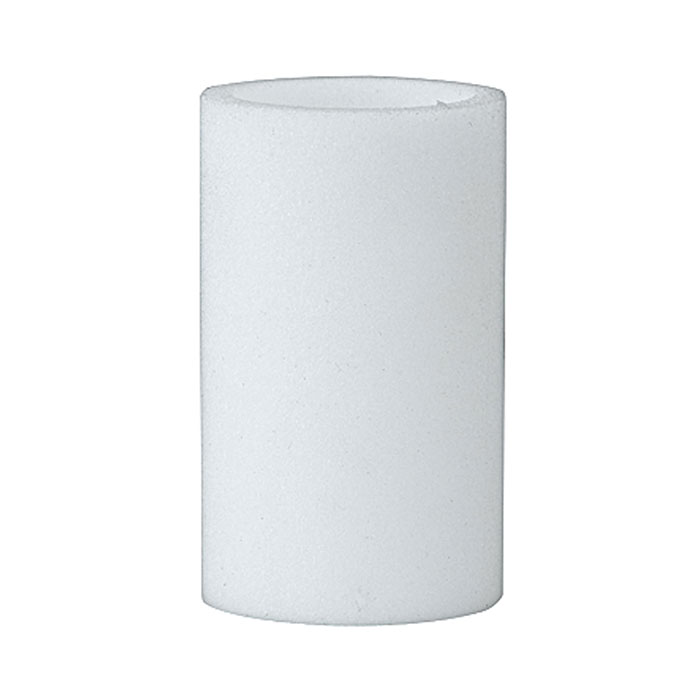

![[100674] RIEGLER Filter element 5 µm, PE sintered](/web/image/product.template/140109/image_128/%5B100674%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20PE%20sintered?unique=5ed41db)
|
Type number: VZ 741/5 |
8.18 € | |

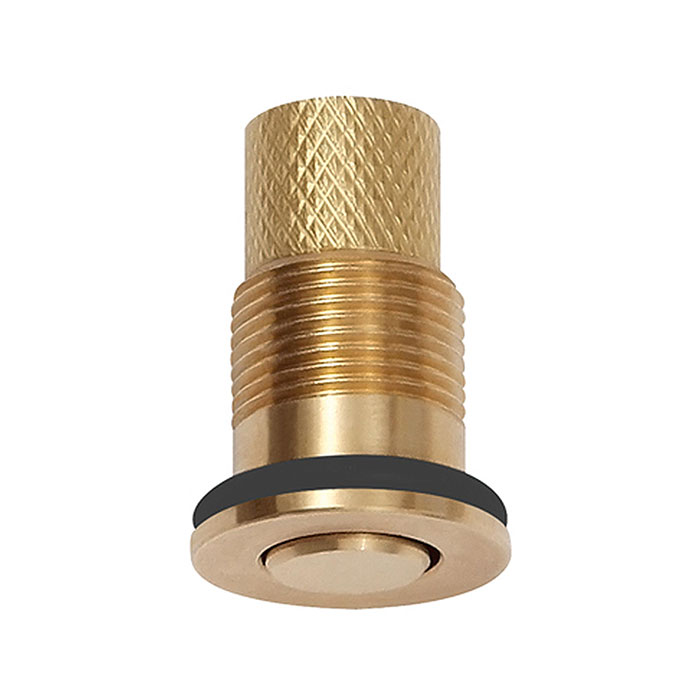

![[100676] RIEGLER Semi automated bleeder valve](/web/image/product.template/140111/image_128/%5B100676%5D%20RIEGLER%20Semi%20automated%20bleeder%20valve?unique=1f333cf)
|
Type number: VZ 751 |
9.63 € | |

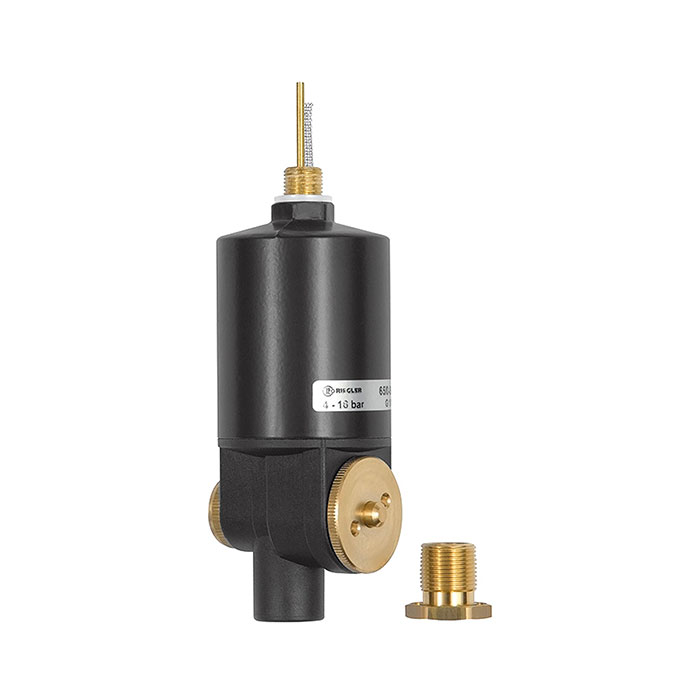

![[100677] RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1](/web/image/product.template/140112/image_128/%5B100677%5D%20RIEGLER%20Fully%20automated%20bleeder%20valve%20incl.%20adapter%20G%201-8%20i.%20x%20M14x1?unique=7ecb4ee)
|
Type number: 65/0-N |
70.29 € | |

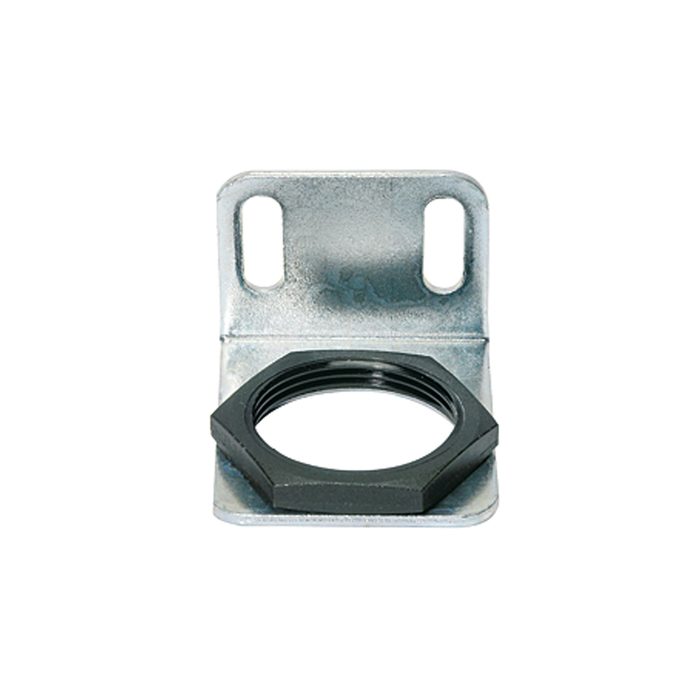

![[100746] RIEGLER Mounting bracket and fastening nut, for »variobloc«, Size 1](/web/image/product.template/140182/image_128/%5B100746%5D%20RIEGLER%20Mounting%20bracket%20and%20fastening%20nut%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=3db0b2a)
|
Type number: 630/1-B |
9.22 € | |
![[100748] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 1](/web/image/product.template/140184/image_128/%5B100748%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=15e14d5)
|
Type number: VZ 718 |
9.32 € | |
![[100750] RIEGLER Compact connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140186/image_128/%5B100750%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=7c96132)
|
Type number: VZ 101 |
9.31 € | |
![[100754] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 1, G 1/4](/web/image/product.template/140190/image_128/%5B100754%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=0788327)
|
Type number: VZ 201 |
9.52 € | |

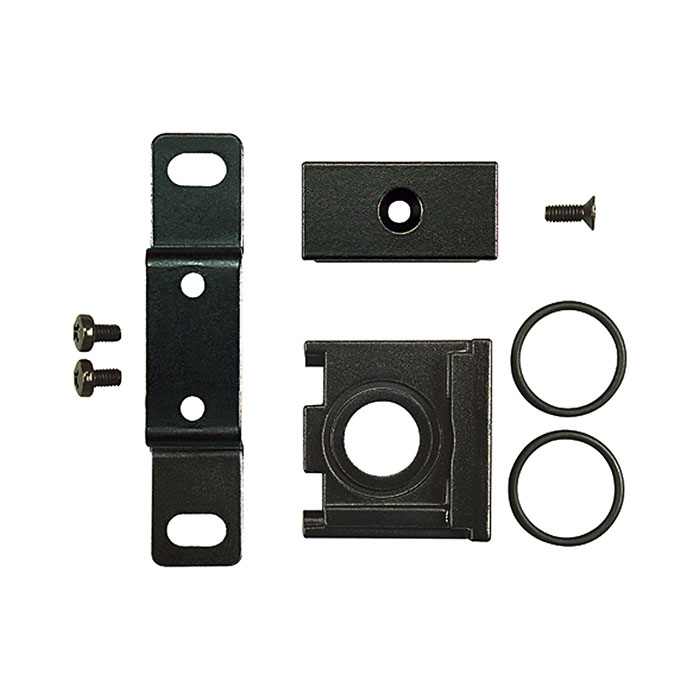

![[100760] RIEGLER Comfort connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140196/image_128/%5B100760%5D%20RIEGLER%20Comfort%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=d3b5c4d)
|
Type number: VZ 401 |
27.87 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100672] RIEGLER Filter element 40 µm, PE sintered](/web/image/product.template/140107/image_128/%5B100672%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20PE%20sintered?unique=3655b68)
|
Type number: VZ 741 |
5.18 € | |

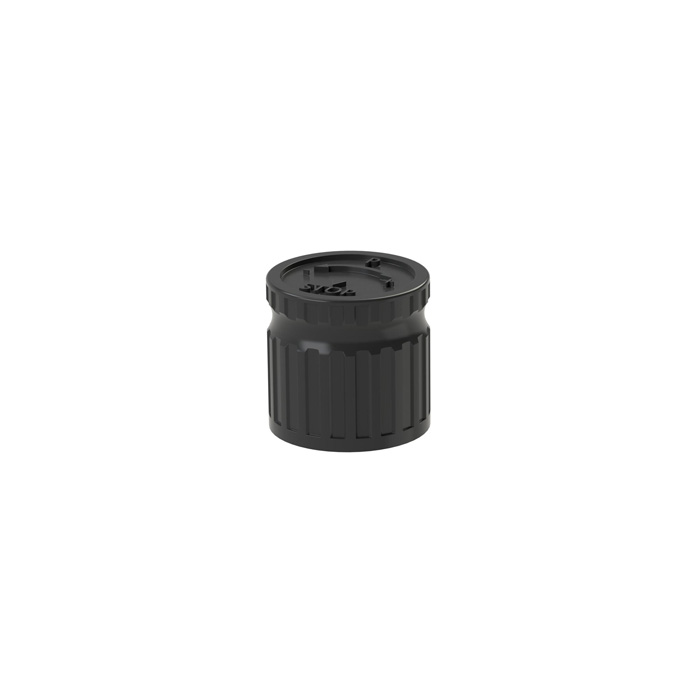

![[118707] RIEGLER Handwheel "variobloc" BG 1 for pressure and filter regulator](/web/image/product.template/280930/image_128/%5B118707%5D%20RIEGLER%20Handwheel%20%22variobloc%22%20BG%201%20for%20pressure%20and%20filter%20regulator?unique=a35c97e)
|
Type number: 423.3.97 |
1.86 € | |
![[100668] RIEGLER Metal container incl. viewing tube, for »variobloc«, Size 1](/web/image/product.template/140103/image_128/%5B100668%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=60eb231)
|
Type number: VZ 551 |
43.61 € | |

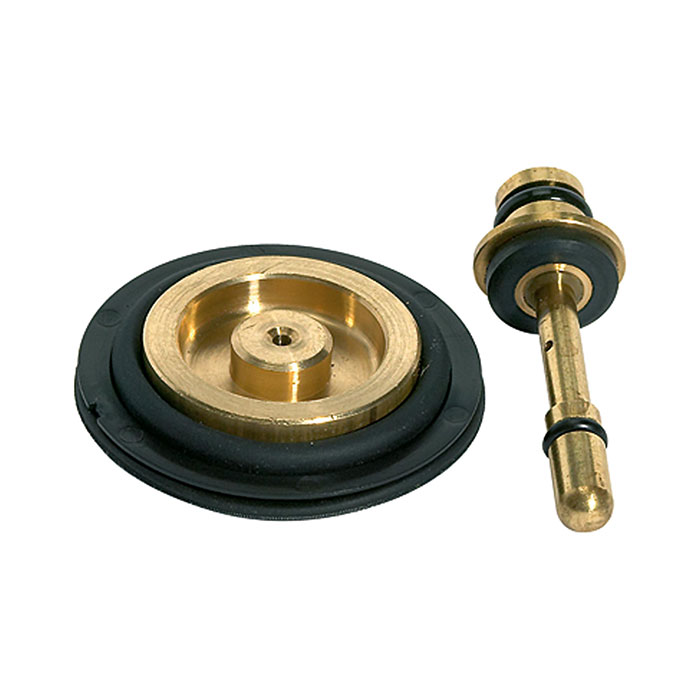

![[100649] RIEGLER Wear part set for »variobloc«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140084/image_128/%5B100649%5D%20RIEGLER%20Wear%20part%20set%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=8a70536)
|
Type number: VZ 781 |
19.16 € | |
