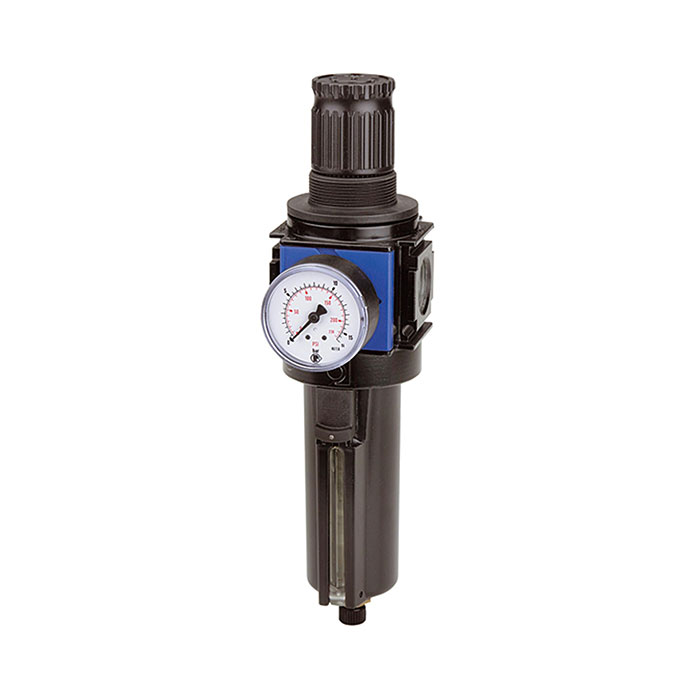

RIEGLER Filter regulator »variobloc« with metal container, Size 1, G 3/8
Type number: VFR 33 M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter regulator »variobloc«, Metal container incl. viewing tube and pressure gauge, Size 1, G 3/8, Input pressure max. 20 bar
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Filter fineness | 40 µm |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Spring cover | POM |
| Thread | G 3/8 |
| Flow rate | 3000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 1 |
| A | 48 mm |
| B | 203 mm |
| C | 68 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125310] RIEGLER Filter regulator »variobloc« with metal container, Size 1, G 1/4](/web/image/product.template/202453/image_128/%5B125310%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%201%2C%20G%201-4?unique=8076657)
|
Type number: VFR 23 M |
152.63 € | |
![[125314] RIEGLER Filter regulator »variobloc« with metal container, Size 2, G 1](/web/image/product.template/202457/image_128/%5B125314%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%201?unique=8076657)
|
Type number: VFR 63 M |
138.10 € | |
![[125312] RIEGLER Filter regulator »variobloc« with metal container, Size 2, G 1/2](/web/image/product.template/202455/image_128/%5B125312%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%201-2?unique=8076657)
|
Type number: VFR 43 M |
110.49 € | |
![[125313] RIEGLER Filter regulator »variobloc« with metal container, Size 2, G 3/4](/web/image/product.template/202456/image_128/%5B125313%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%203-4?unique=287e775)
|
Type number: VFR 53 M |
165.74 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100662] RIEGLER Polycarbonate container with manual bleeder valve](/web/image/product.template/140097/image_128/%5B100662%5D%20RIEGLER%20Polycarbonate%20container%20with%20manual%20bleeder%20valve?unique=62f43ad)
|
Type number: VZ 501 |
19.05 € | |

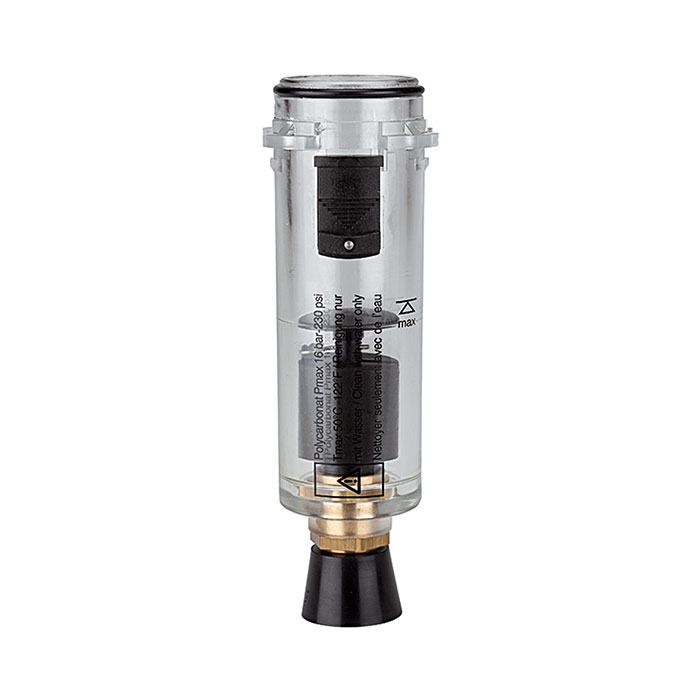

![[100664] RIEGLER PC container, Automatic bleeder valve (integrated design)](/web/image/product.template/140099/image_128/%5B100664%5D%20RIEGLER%20PC%20container%2C%20Automatic%20bleeder%20valve%20%28integrated%20design%29?unique=4d0fed9)
|
Type number: VZ 511 |
34.76 € | |
![[100666] RIEGLER Protective cage, for »variobloc«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140101/image_128/%5B100666%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=b0f5820)
|
Type number: VZ 531 |
14.48 € | |

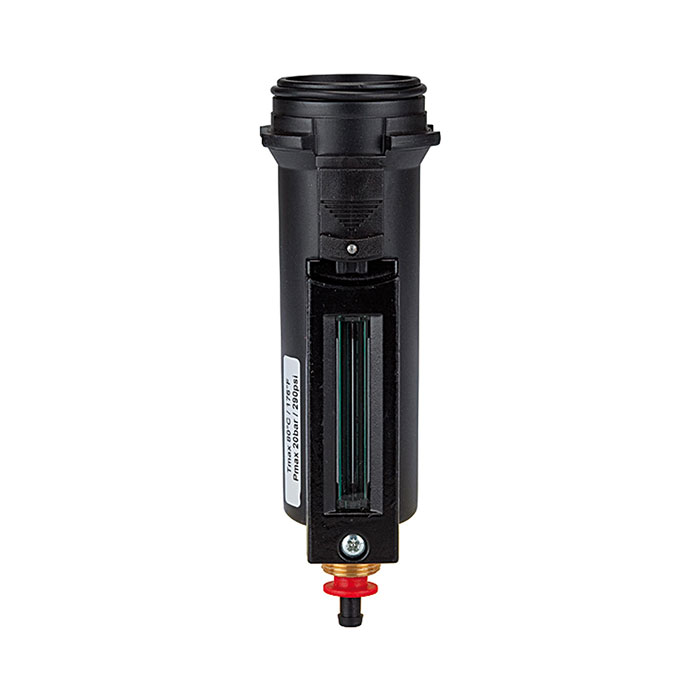

![[100670] RIEGLER Metal container incl. viewing tube, Automatic bleeder valve](/web/image/product.template/140105/image_128/%5B100670%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20Automatic%20bleeder%20valve?unique=1727ae7)
|
Type number: VZ 561 |
65.16 € | |

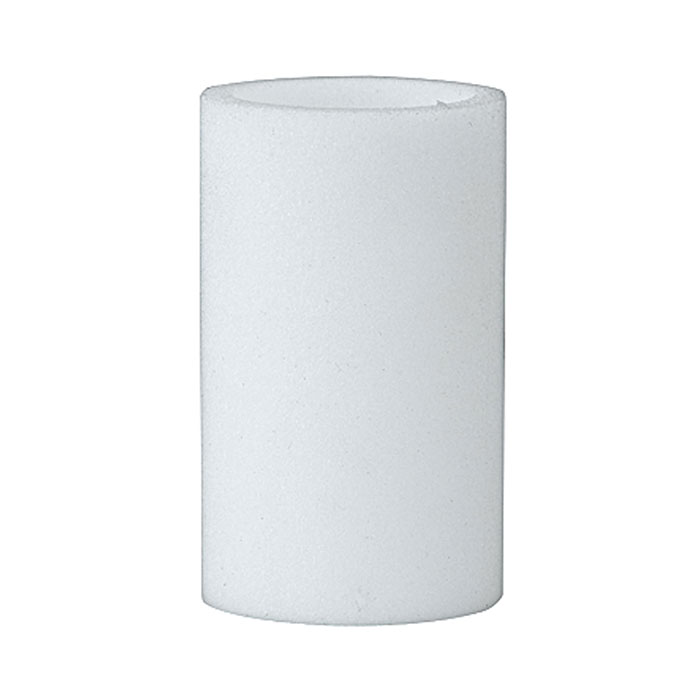

![[100674] RIEGLER Filter element 5 µm, PE sintered](/web/image/product.template/140109/image_128/%5B100674%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20PE%20sintered?unique=5ed41db)
|
Type number: VZ 741/5 |
8.18 € | |

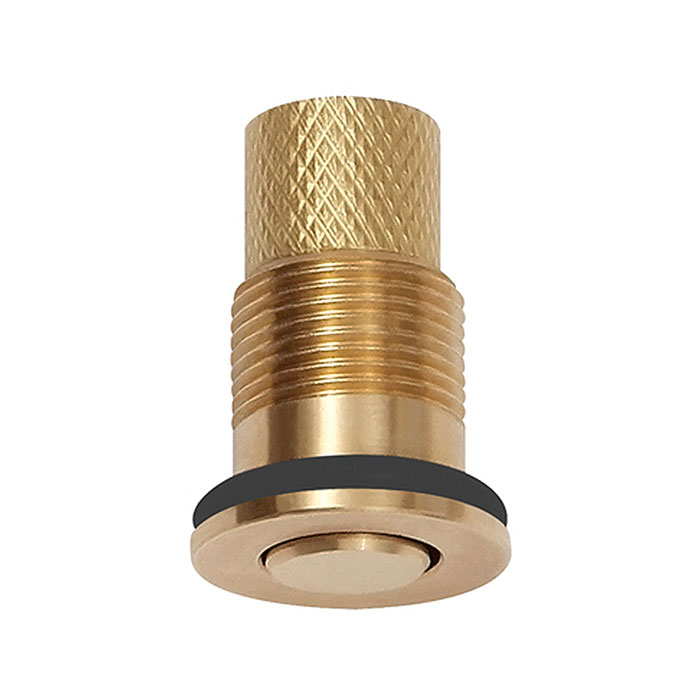

![[100676] RIEGLER Semi automated bleeder valve](/web/image/product.template/140111/image_128/%5B100676%5D%20RIEGLER%20Semi%20automated%20bleeder%20valve?unique=1f333cf)
|
Type number: VZ 751 |
9.63 € | |

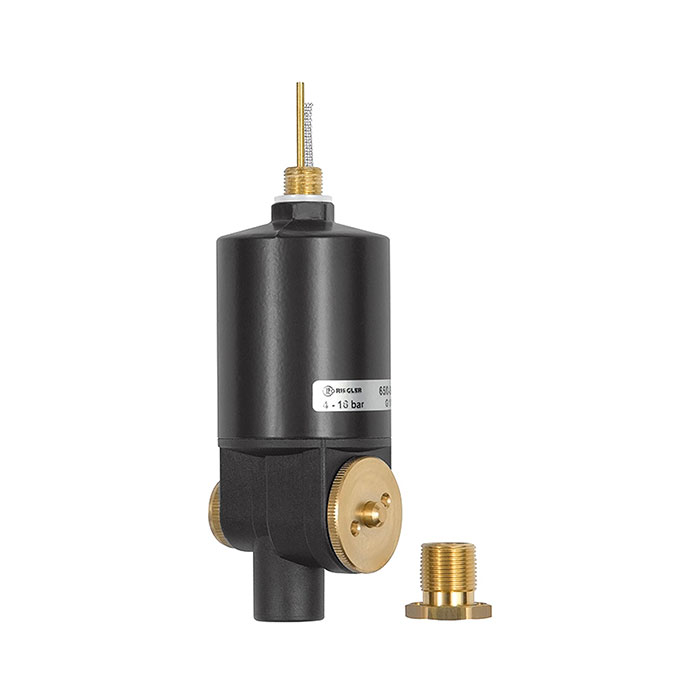

![[100677] RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1](/web/image/product.template/140112/image_128/%5B100677%5D%20RIEGLER%20Fully%20automated%20bleeder%20valve%20incl.%20adapter%20G%201-8%20i.%20x%20M14x1?unique=7ecb4ee)
|
