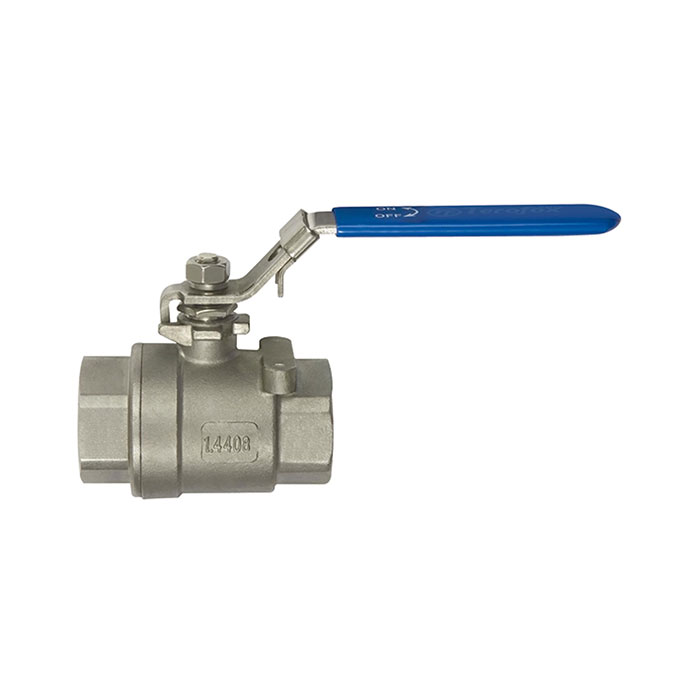

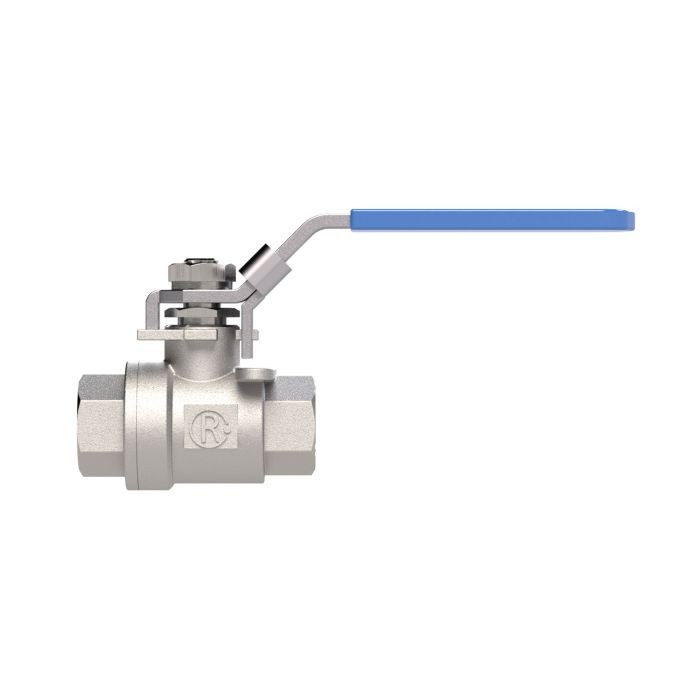

RIEGLER Stainless steel ball valve, 2-piece, IT/IT thread, G 1 1/4, DN 32
Type number: 3395.06
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel ball valve made of stainless steel 1.4408, for industrial systems, G 1 1/4 - Type 3395.06
The RIEGLER stainless steel ball valve, 2-part, female/female thread, G 1 1/4, DN 32 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of stainless steel 1.4408. The operating temperature is between -20 °C and 180 °C. Connection thread G 1 1/4 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | PTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Thread | G 1 1/4 |
| DN | 32 |
| PN | 63 bar |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

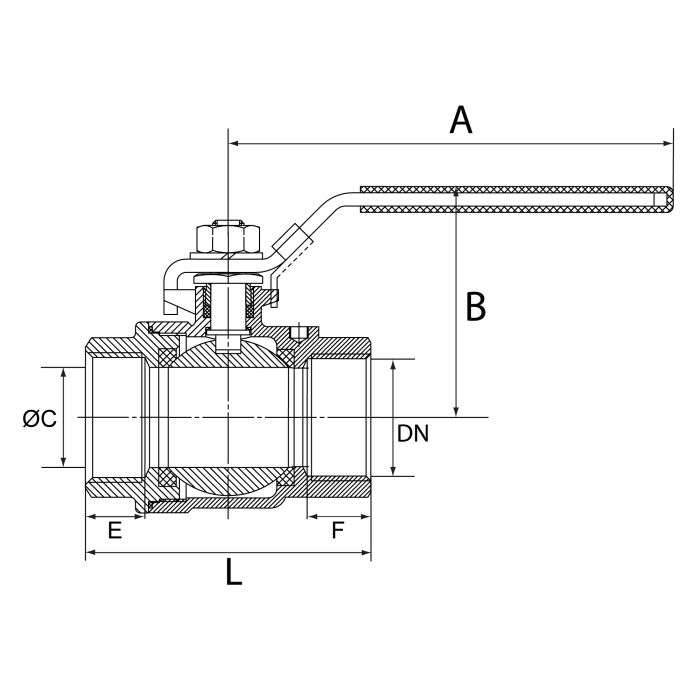

| A | 150 mm |
| B | 84.5 mm |
| L | 88 mm |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 6.0 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135898] RIEGLER Stainless steel ball valve, 2-piece, IT/IT thread, G 1 1/2, DN 40](/web/image/product.template/206251/image_128/%5B135898%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-IT%20thread%2C%20G%201%201-2%2C%20DN%2040?unique=c2cc5e8)
|
Type number: 3395.07 |
69.22 € | |
![[135894] RIEGLER Stainless steel ball valve, 2-piece, IT/IT thread, G 1/2, DN 15](/web/image/product.template/206247/image_128/%5B135894%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-IT%20thread%2C%20G%201-2%2C%20DN%2015?unique=02e8be0)
|
Type number: 3395.03 |
17.58 € | |
![[135892] RIEGLER Stainless steel ball valve, 2-piece, IT/IT thread, G 1/4, DN 8](/web/image/product.template/206245/image_128/%5B135892%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-IT%20thread%2C%20G%201-4%2C%20DN%208?unique=d87b6ec)
|
Type number: 3395.01 |
16.74 € | |
![[135896] RIEGLER Stainless steel ball valve, 2-piece, IT/IT thread, G 1, DN 25](/web/image/product.template/206249/image_128/%5B135896%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-IT%20thread%2C%20G%201%2C%20DN%2025?unique=c965544)
|
Type number: 3395.05 |
35.37 € | |
![[135900] RIEGLER Stainless steel ball valve, 2-piece, IT/IT thread, G 2 1/2, DN 65](/web/image/product.template/206253/image_128/%5B135900%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-IT%20thread%2C%20G%202%201-2%2C%20DN%2065?unique=2ad098c)
|
Type number: 3395.09 |
233.06 € | |
![[135899] RIEGLER Stainless steel ball valve, 2-piece, IT/IT thread, G 2, DN 50](/web/image/product.template/206252/image_128/%5B135899%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-IT%20thread%2C%20G%202%2C%20DN%2050?unique=c39e6b1)
|
Type number: 3395.08 |
109.33 € | |
![[135895] RIEGLER Stainless steel ball valve, 2-piece, IT/IT thread, G 3/4, DN 20](/web/image/product.template/206248/image_128/%5B135895%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-IT%20thread%2C%20G%203-4%2C%20DN%2020?unique=14f51c0)
|
Type number: 3395.04 |
24.81 € | |

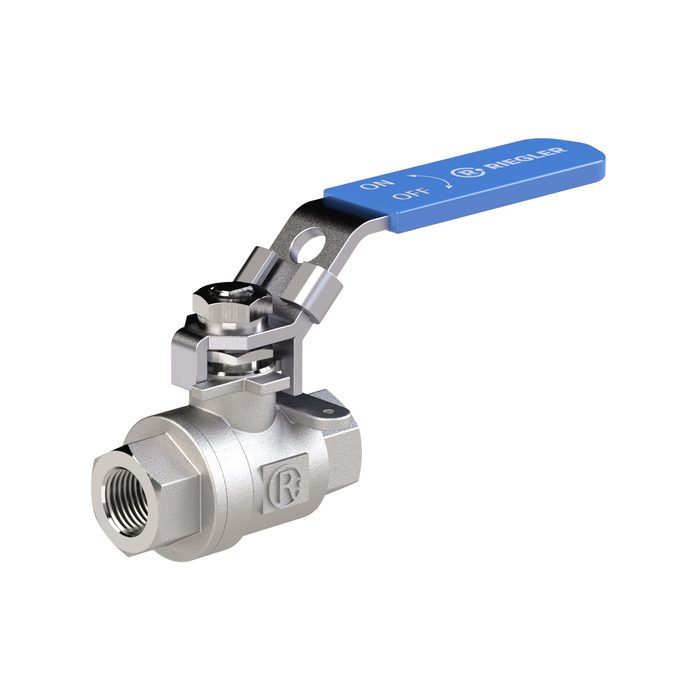

![[135893] RIEGLER Stainless steel ball valve, 2-piece, IT/IT thread, G 3/8, DN 10](/web/image/product.template/206246/image_128/%5B135893%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-IT%20thread%2C%20G%203-8%2C%20DN%2010?unique=1d447a1)
|
