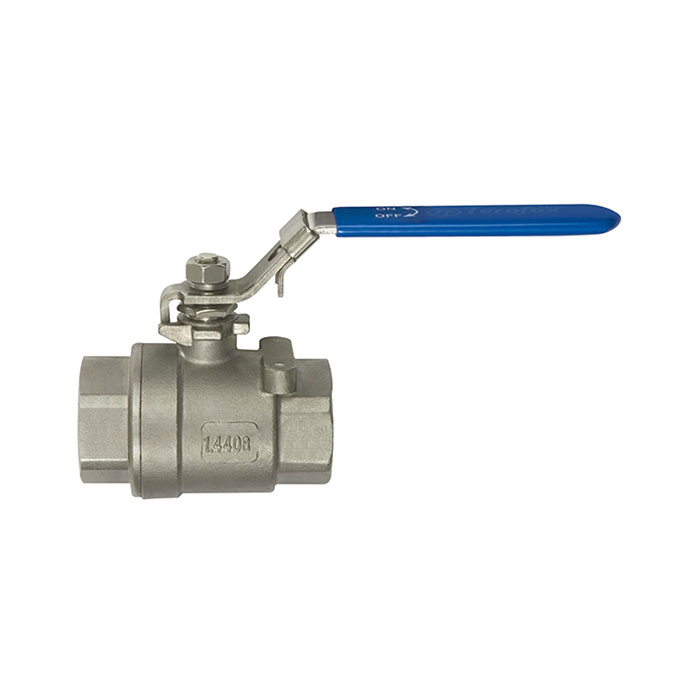

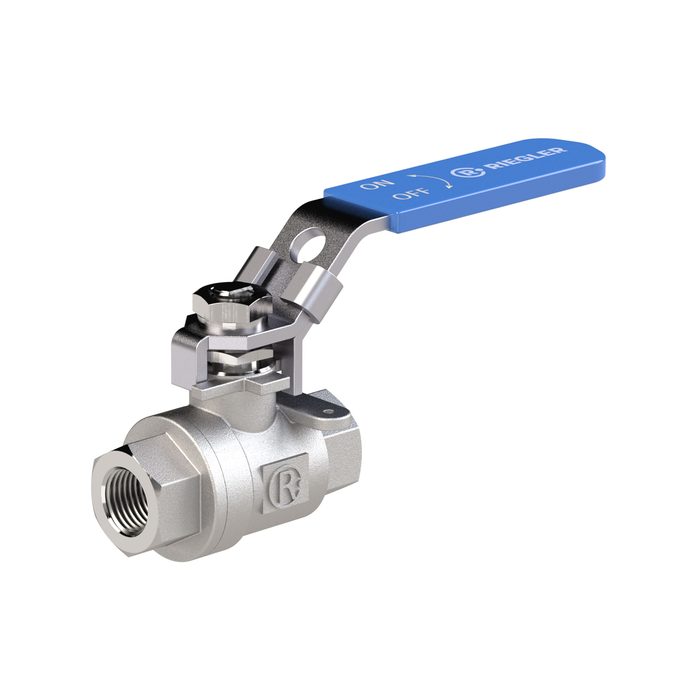

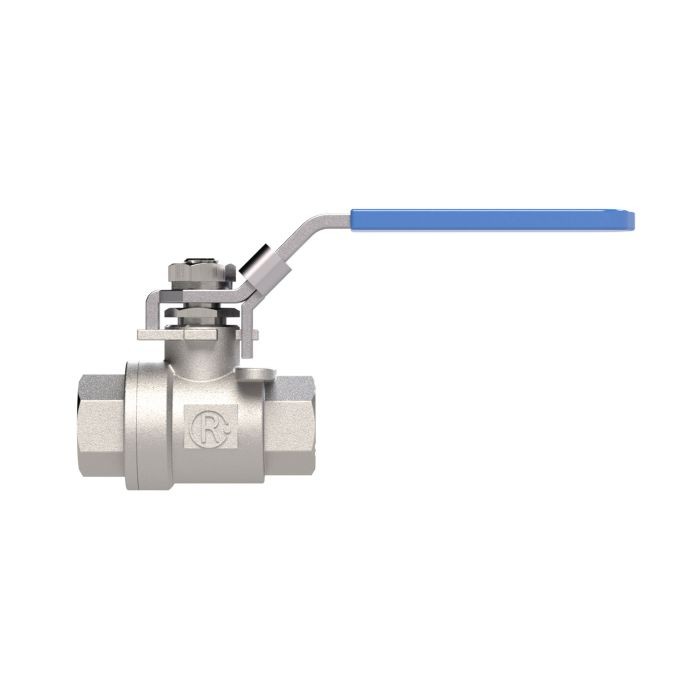

RIEGLER Stainless steel ball valve, 2-piece, IT/IT thread, G 1 1/2, DN 40
Type number: 3395.07
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Stainless steel ball valve, 2-part, female/female thread, G 1 1/2, DN 40, operating temperature -20 °C to 180 °C, PN max. 63 bar
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | PTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Thread | G 1 1/2 |
| DN | 38 |
| PN | 63 bar |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

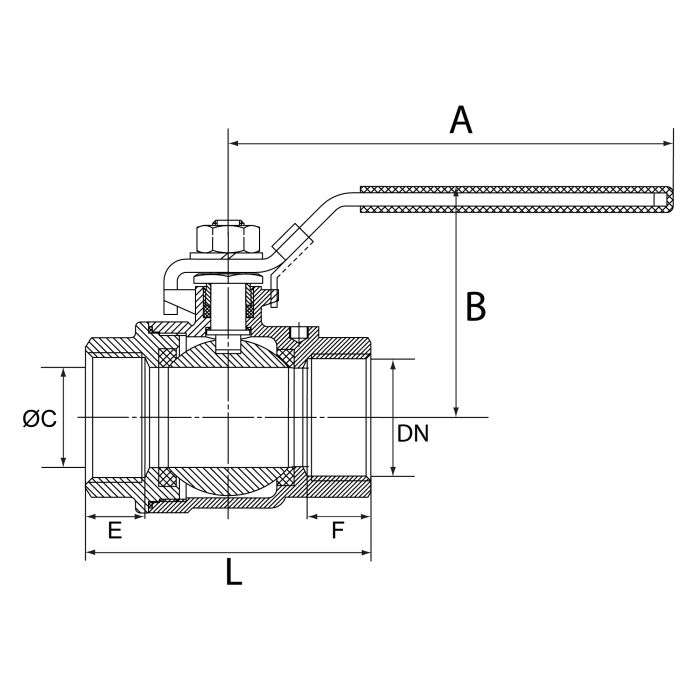

| A | 170 mm |
| B | 103.5 mm |
| L | 98 mm |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 6.0 mm |
