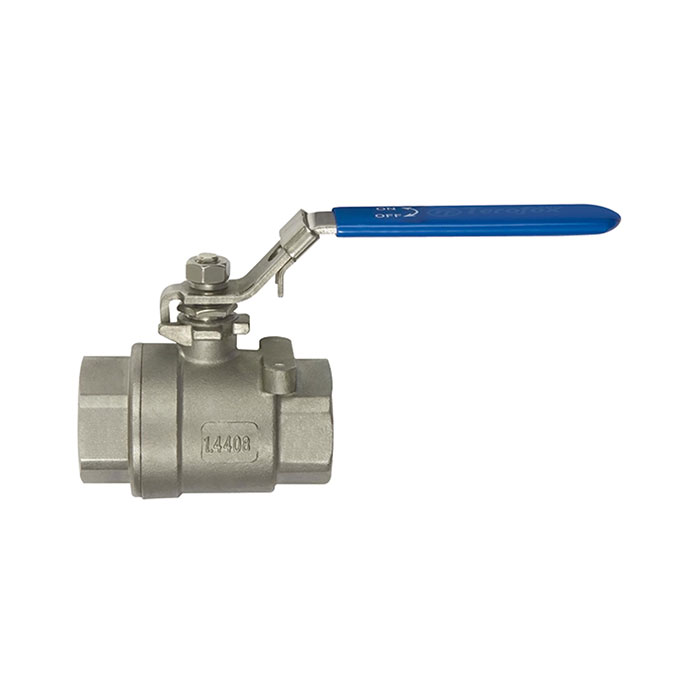

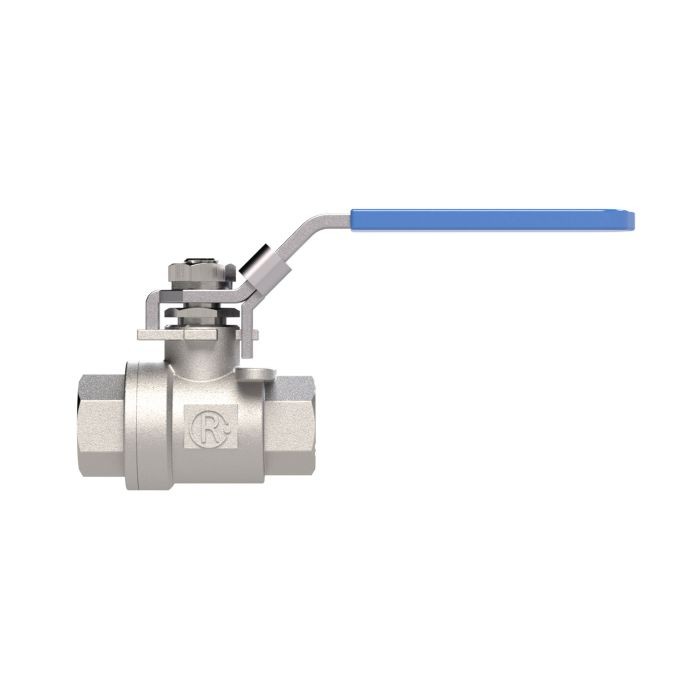

RIEGLER Stainless steel ball valve, 2-piece, IT/IT thread, G 2, DN 50
Type number: 3395.08
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel ball valve made of stainless steel 1.4408, for industrial systems, G 2 - type 3395.08
The RIEGLER stainless steel ball valve, 2-part, female/female thread, G 2, DN 50 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of stainless steel 1.4408. The operating temperature is between -20 °C and 180 °C. Connection thread G 2 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | PTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Thread | G 2 |
| DN | 50 |
| PN | 63 bar |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

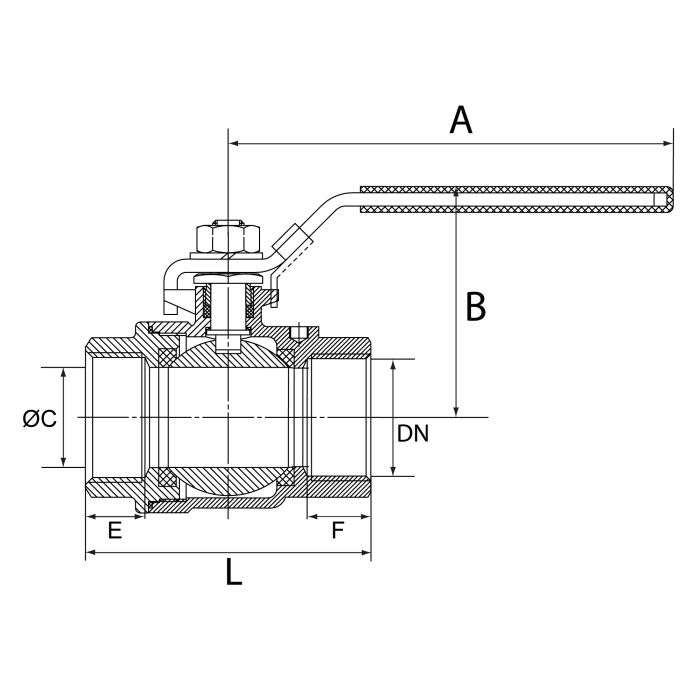

| A | 170 mm |
| B | 111 mm |
| L | 110 mm |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 6.0 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135898] RIEGLER Stainless steel ball valve, 2-piece, IT/IT thread, G 1 1/2, DN 40](/web/image/product.template/206251/image_128/%5B135898%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-IT%20thread%2C%20G%201%201-2%2C%20DN%2040?unique=c2cc5e8)
|
Type number: 3395.07 |
69.22 € | |

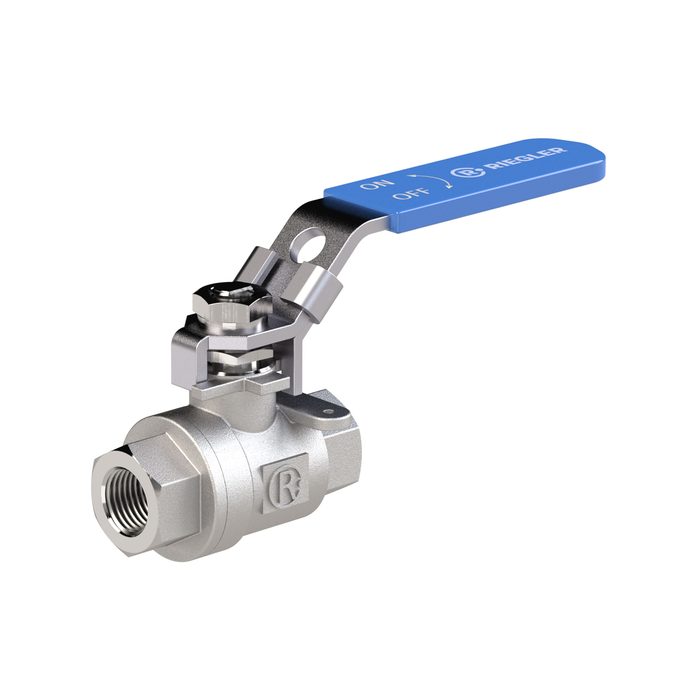

![[135897] RIEGLER Stainless steel ball valve, 2-piece, IT/IT thread, G 1 1/4, DN 32](/web/image/product.template/206250/image_128/%5B135897%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%202-piece%2C%20IT-IT%20thread%2C%20G%201%201-4%2C%20DN%2032?unique=c4d2c0f)
|
