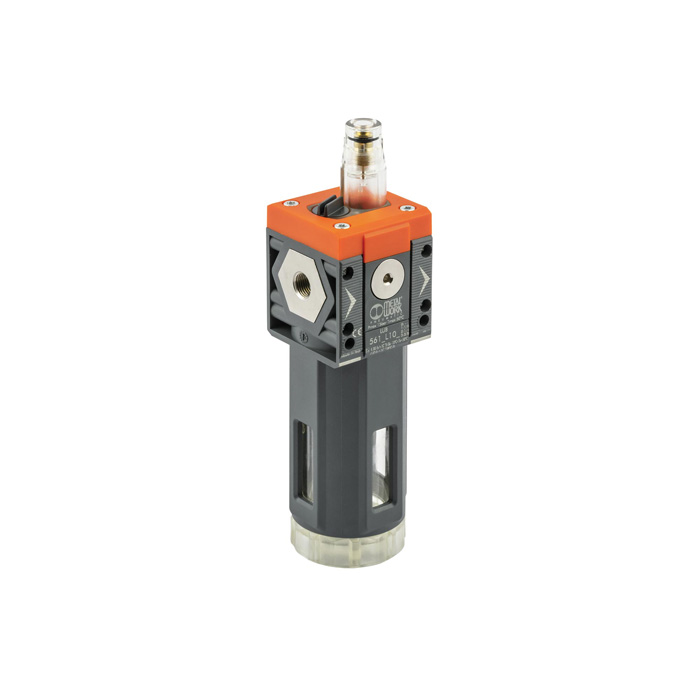

RIEGLER Oiler "SYNTESI", BG 1, without bushes
Type number: 5610L100
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Lubricator »SYNTESI«, size 1, without bushings, p1 max. = 15 bar, T = -10 … 50 °C
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| BG | 1 |
| Input connection | without socket |
| Output connection | without socket |
| A | 42 mm |
| B | 162 mm |
| Flow_1 | 2200 Nl/min |
| Flow rate measurement 1 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Recommended oils | ISO and UNI FD22 (RIEGLER oil type 32, Energol HPL, Spinesso, Mobil DTE, Tellus oil) |
| Series | Syntesi |
| Dropper attachment | Technopolymer |
| F | 25.8 mm |
| Flow_2 | 3650 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144673] RIEGLER Oiler "SYNTESI", BG 1, G 1/4](/web/image/product.template/277863/image_128/%5B144673%5D%20RIEGLER%20Oiler%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4?unique=0c8a03f)
|
Type number: 5612L102 |
34.13 € | |
![[144672] RIEGLER Oiler "SYNTESI", BG 1, G 1/8](/web/image/product.template/277862/image_128/%5B144672%5D%20RIEGLER%20Oiler%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8?unique=0e50389)
|
Type number: 5611L101 |
34.13 € | |
![[144674] RIEGLER Oiler "SYNTESI", BG 1, G 3/8](/web/image/product.template/277864/image_128/%5B144674%5D%20RIEGLER%20Oiler%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8?unique=d066a68)
|
Type number: 5613L103 |
34.13 € | |
![[144679] RIEGLER Oiler "SYNTESI", BG 2, G 1](/web/image/product.template/277869/image_128/%5B144679%5D%20RIEGLER%20Oiler%20%22SYNTESI%22%2C%20BG%202%2C%20G%201?unique=4021ae2)
|
Type number: 5626L106 |
66.65 € | |
![[144676] RIEGLER Oiler "SYNTESI", BG 2, G 3/8](/web/image/product.template/277866/image_128/%5B144676%5D%20RIEGLER%20Oiler%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8?unique=f79d2e8)
|
Type number: 5623L103 |
57.02 € | |
![[144675] RIEGLER Oiler "SYNTESI", BG 2, without bushes](/web/image/product.template/277865/image_128/%5B144675%5D%20RIEGLER%20Oiler%20%22SYNTESI%22%2C%20BG%202%2C%20without%20bushes?unique=51a6c20)
|
Type number: 5620L100 |
45.84 € | |
![[144677] RIEGLER SYNTESI" oiler, BG 2, G 1/2](/web/image/product.template/277867/image_128/%5B144677%5D%20RIEGLER%20SYNTESI%22%20oiler%2C%20BG%202%2C%20G%201-2?unique=d8edae8)
|
Type number: 5624L104 |
57.02 € | |
![[144678] RIEGLER SYNTESI" oiler, BG 2, G 3/4](/web/image/product.template/277868/image_128/%5B144678%5D%20RIEGLER%20SYNTESI%22%20oiler%2C%20BG%202%2C%20G%203-4?unique=bfb32a9)
|
Type number: 5625L105 |
66.65 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=a056128)
|
Type number: 32 |
34.57 € | |
![[144688] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 1/8, incl. 2 screws](/web/image/product.template/277870/image_128/%5B144688%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%20incl.%202%20screws?unique=238ee0c)
|
Type number: 9210001 |
1.88 € | |
![[144689] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 1/4, incl. 2 screws](/web/image/product.template/277871/image_128/%5B144689%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%20incl.%202%20screws?unique=c8e3d45)
|
Type number: 9210002 |
1.88 € | |
![[144690] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 3/8, incl. 2 screws](/web/image/product.template/277872/image_128/%5B144690%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%20incl.%202%20screws?unique=f89095e)
|
Type number: 9210003 |
1.88 € | |
![[144695] RIEGLER Connecting nipple set "SYNTESI", BG 1](/web/image/product.template/279863/image_128/%5B144695%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%201?unique=ece161d)
|
Type number: 9210000 |
2.73 € | |
![[145502] RIEGLER Connecting element 90°, "SYNTESI", BG 1](/web/image/product.template/279258/image_128/%5B145502%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%201?unique=44c5c52)
|
Type number: 9210009 |
4.13 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=062fb2e)
|
Type number: 9210006 |
6.56 € | |
![[145505] RIEGLER Assembly wrench for "SYNTESI" BG 1, "bit" container](/web/image/product.template/279261/image_128/%5B145505%5D%20RIEGLER%20Assembly%20wrench%20for%20%22SYNTESI%22%20BG%201%2C%20%22bit%22%20container?unique=7d8f368)
|
Type number: 9170601 |
5.62 € | |
![[145507] RIEGLER SYNTESI" fixing screw, BG 1](/web/image/product.template/279263/image_128/%5B145507%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%201?unique=373acfd)
|
Type number: 9210030 |
0.26 € | |
![[145658] RIEGLER SYNTESI" mounting bracket, BG 1, standard and anti-corrosion](/web/image/product.template/279315/image_128/%5B145658%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%201%2C%20standard%20and%20anti-corrosion?unique=e9d666b)
|
Type number: 9200716X |
13.64 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=0cf8781)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

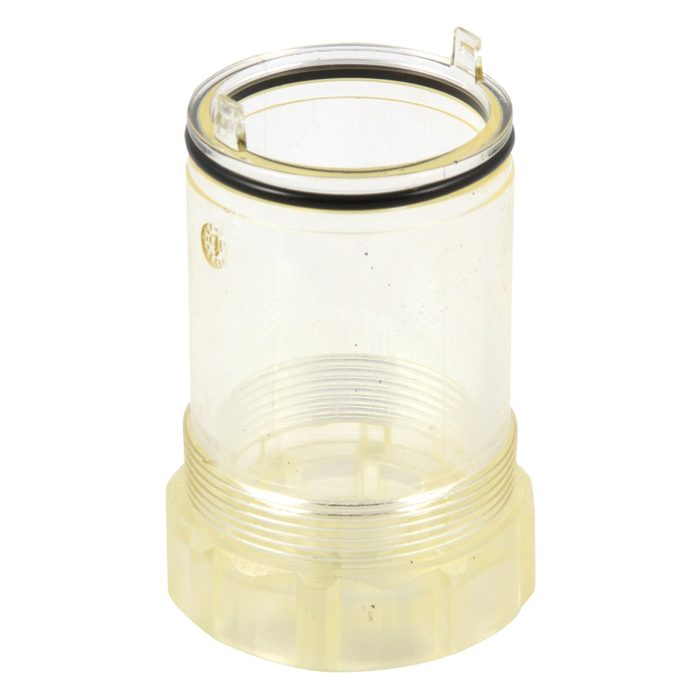

![[145617] RIEGLER Container for oiler "SYNTESI", BG 1](/web/image/product.template/279274/image_128/%5B145617%5D%20RIEGLER%20Container%20for%20oiler%20%22SYNTESI%22%2C%20BG%201?unique=d2ca91f)
|
Type number: 9210110 |
5.18 € | |
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=6527c29)
|
Type number: 233.02-N |
0.42 € | |

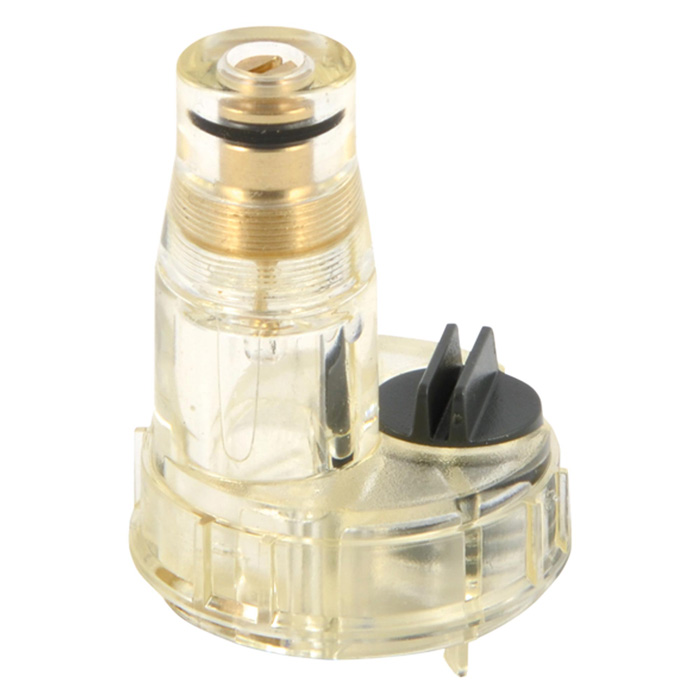

![[145629] RIEGLER Oiler dome (drip cap) "SYNTESI", BG 1, with oil filler plug](/web/image/product.template/279286/image_128/%5B145629%5D%20RIEGLER%20Oiler%20dome%20%28drip%20cap%29%20%22SYNTESI%22%2C%20BG%201%2C%20with%20oil%20filler%20plug?unique=c85bd1b)
|
Type number: 9210180 |
5.43 € | |

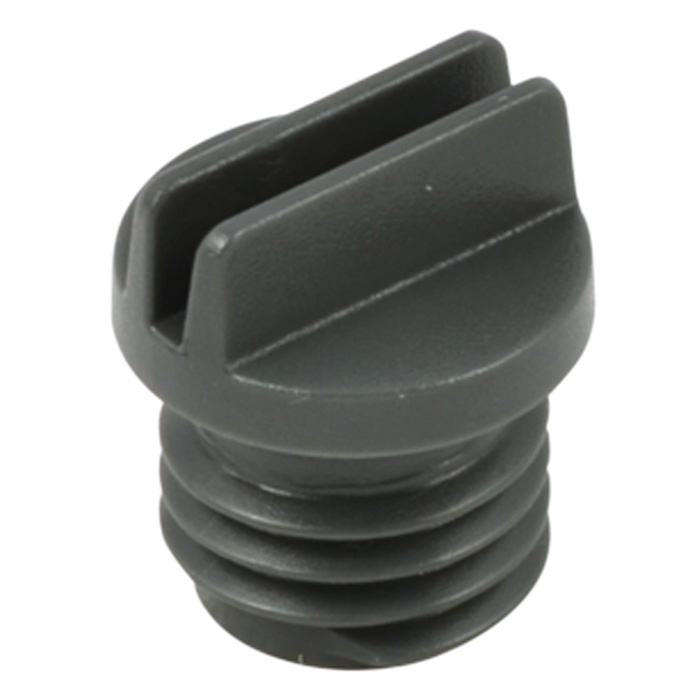

![[145631] RIEGLER Oil filler plug "SYNTESI", BG 1](/web/image/product.template/279288/image_128/%5B145631%5D%20RIEGLER%20Oil%20filler%20plug%20%22SYNTESI%22%2C%20BG%201?unique=874427a)
|
