RIEGLER Oiler "SYNTESI", BG 2, G 3/8
Type number: 5623L103
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Oiler "SYNTESI" made of technopolymer, for compressed air treatment - Type 5623L103
The RIEGLER oiler "SYNTESI", BG 2, G 3/8 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of technopolymer with NBR seals. The maximum inlet pressure is 13 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Tank made of technopolymer. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| BG | 2 |
| Input connection | G 3/8 |
| Output connection | |
| A | 60.5 mm |
| B | 200.5 mm |
| Flow 1 | 2300 Nl/min |
| Flow rate measurement 1 | P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Recommended oils | ISO and UNI FD22 (RIEGLER oil type 32, Energol HPL, Spinesso, Mobil DTE, Tellus oil) |
| Series | Syntesi |
| Dropper attachment | Technopolymer |
| F | 38.2 mm |
| Flow 2 | 3650 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144673] RIEGLER Oiler "SYNTESI", BG 1, G 1/4](/web/image/product.template/277863/image_128/%5B144673%5D%20RIEGLER%20Oiler%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4?unique=38937d3)
|
Type number: 5612L102 |
34.13 € | |
![[144672] RIEGLER Oiler "SYNTESI", BG 1, G 1/8](/web/image/product.template/277862/image_128/%5B144672%5D%20RIEGLER%20Oiler%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8?unique=01ca8b5)
|
Type number: 5611L101 |
34.13 € | |
![[144674] RIEGLER Oiler "SYNTESI", BG 1, G 3/8](/web/image/product.template/277864/image_128/%5B144674%5D%20RIEGLER%20Oiler%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8?unique=4d1cbc4)
|
Type number: 5613L103 |
34.13 € | |

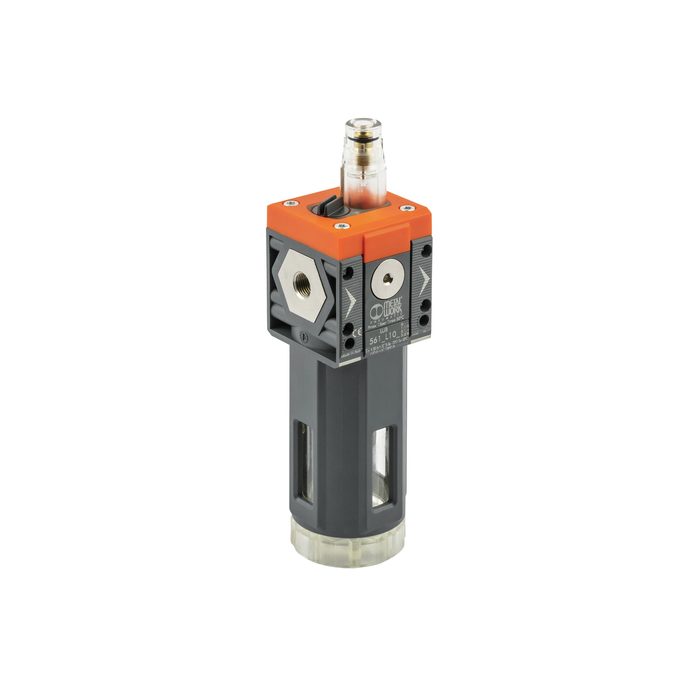

![[144671] RIEGLER Oiler "SYNTESI", BG 1, without bushes](/web/image/product.template/277861/image_128/%5B144671%5D%20RIEGLER%20Oiler%20%22SYNTESI%22%2C%20BG%201%2C%20without%20bushes?unique=bc1499d)
|
Type number: 5610L100 |
31.93 € | |
![[144679] RIEGLER Oiler "SYNTESI", BG 2, G 1](/web/image/product.template/277869/image_128/%5B144679%5D%20RIEGLER%20Oiler%20%22SYNTESI%22%2C%20BG%202%2C%20G%201?unique=ab7c660)
|
Type number: 5626L106 |
65.74 € | |
![[144675] RIEGLER Oiler "SYNTESI", BG 2, without bushes](/web/image/product.template/277865/image_128/%5B144675%5D%20RIEGLER%20Oiler%20%22SYNTESI%22%2C%20BG%202%2C%20without%20bushes?unique=400aaca)
|
Type number: 5620L100 |
45.84 € | |
![[144677] RIEGLER SYNTESI" oiler, BG 2, G 1/2](/web/image/product.template/277867/image_128/%5B144677%5D%20RIEGLER%20SYNTESI%22%20oiler%2C%20BG%202%2C%20G%201-2?unique=cb7849f)
|
Type number: 5624L104 |
57.02 € | |
![[144678] RIEGLER SYNTESI" oiler, BG 2, G 3/4](/web/image/product.template/277868/image_128/%5B144678%5D%20RIEGLER%20SYNTESI%22%20oiler%2C%20BG%202%2C%20G%203-4?unique=cda37af)
|
Type number: 5625L105 |
65.74 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=36a168c)
|
Type number: 32 |
34.09 € | |
![[144696] RIEGLER Connecting nipple set "SYNTESI", BG 2](/web/image/product.template/279864/image_128/%5B144696%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%202?unique=73131c1)
|
Type number: 9210010 |
6.79 € | |
![[145503] RIEGLER Connecting element 90°, "SYNTESI", BG 2](/web/image/product.template/279259/image_128/%5B145503%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%202?unique=ac25f6d)
|
Type number: 9210019 |
6.39 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=2aee9a4)
|
Type number: 9210006 |
6.47 € | |
![[145506] RIEGLER Assembly wrench for "SYNTESI" container, BG 2](/web/image/product.template/279262/image_128/%5B145506%5D%20RIEGLER%20Assembly%20wrench%20for%20%22SYNTESI%22%20container%2C%20BG%202?unique=43b4780)
|
Type number: 9210050 |
78.43 € | |
![[145508] RIEGLER SYNTESI" fixing screw, BG 2](/web/image/product.template/279264/image_128/%5B145508%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%202?unique=505cc44)
|
Type number: 9210031 |
0.76 € | |
![[145659] RIEGLER SYNTESI" mounting bracket, BG 2, standard and anti-corrosion](/web/image/product.template/279316/image_128/%5B145659%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%202%2C%20standard%20and%20anti-corrosion?unique=5ced545)
|
Type number: 9200717X |
15.47 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=ec7b43d)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

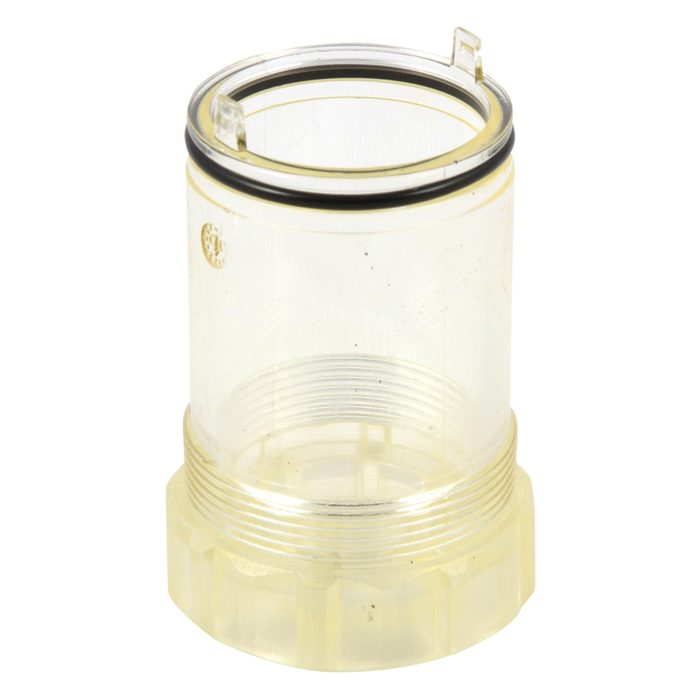

![[145618] RIEGLER Container for oiler "SYNTESI", BG 2](/web/image/product.template/279275/image_128/%5B145618%5D%20RIEGLER%20Container%20for%20oiler%20%22SYNTESI%22%2C%20BG%202?unique=c24052f)
|
Type number: 9210115 |
11.75 € | |
![[111410] RIEGLER Locking screw, Hexagonal socket 6 mm, G 1/4, nickel-plated brass](/web/image/product.template/183331/image_128/%5B111410%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%206%20mm%2C%20G%201-4%2C%20nickel-plated%20brass?unique=cb486b8)
|
Type number: 233.03-N |
0.62 € | |

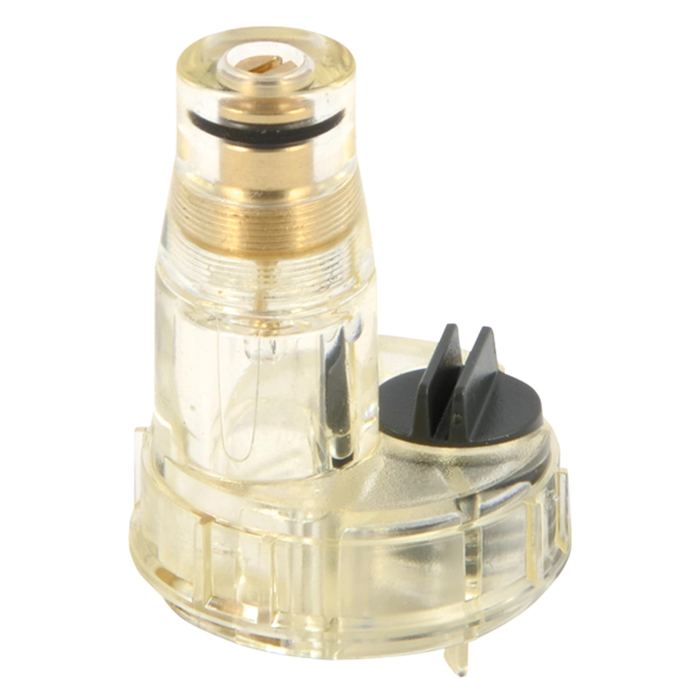

![[145630] RIEGLER Oiler dome (drip cap) "SYNTESI", BG 2, with oil filler plug](/web/image/product.template/279287/image_128/%5B145630%5D%20RIEGLER%20Oiler%20dome%20%28drip%20cap%29%20%22SYNTESI%22%2C%20BG%202%2C%20with%20oil%20filler%20plug?unique=c76a263)
|
Type number: 9210185 |
10.23 € | |

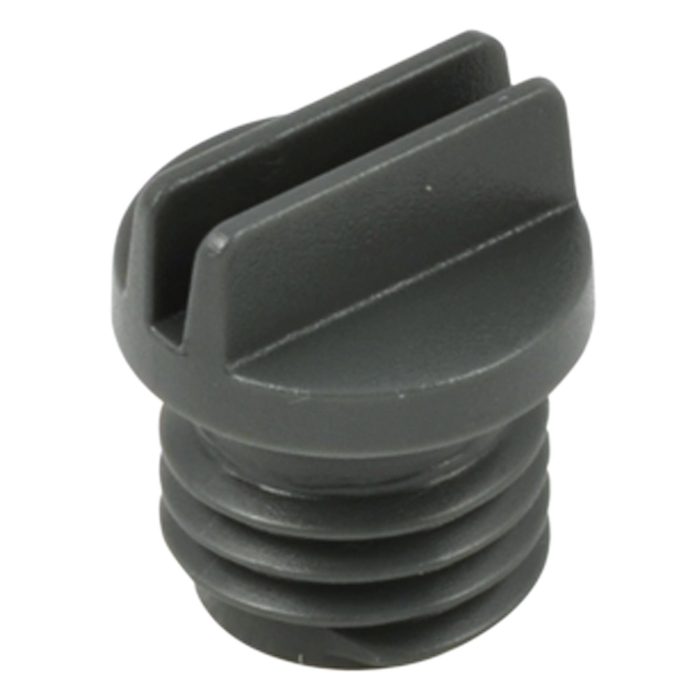

![[145632] RIEGLER Oil filler plug "SYNTESI", BG 2](/web/image/product.template/279289/image_128/%5B145632%5D%20RIEGLER%20Oil%20filler%20plug%20%22SYNTESI%22%2C%20BG%202?unique=c591b39)
|
Type number: 9210186 |
2.18 € | |
![[144691] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 3/8, incl. 2 screws](/web/image/product.template/277873/image_128/%5B144691%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%20incl.%202%20screws?unique=f7d3af9)
|
Type number: 9210011 |
5.77 € | |
