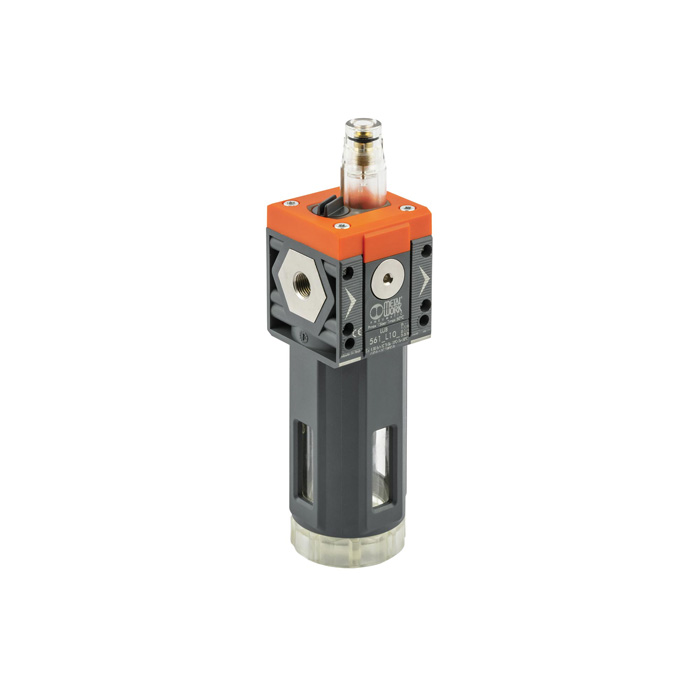

RIEGLER Oiler "SYNTESI", BG 2, G 1
Type number: 5626L106
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Lubricator »SYNTESI«, size 2, G 1, p1 max. = 13 bar, T = -10 … 50 °C
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| BG | 2 |
| Input connection | G 1 |
| Output connection | G 1 |
| A | 60.5 mm |
| B | 200.5 mm |
| Flow_2 | 6100 Nl/min |
| Flow rate measurement 1 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| A1 | 95.0 mm |
| Recommended oils | ISO and UNI FD22 (RIEGLER oil type 32, Energol HPL, Spinesso, Mobil DTE, Tellus oil) |
| Series | Syntesi |
| Dropper attachment | Technopolymer |
| F | 38.2 mm |
| Flow_1 | 3900 Nl/min |
