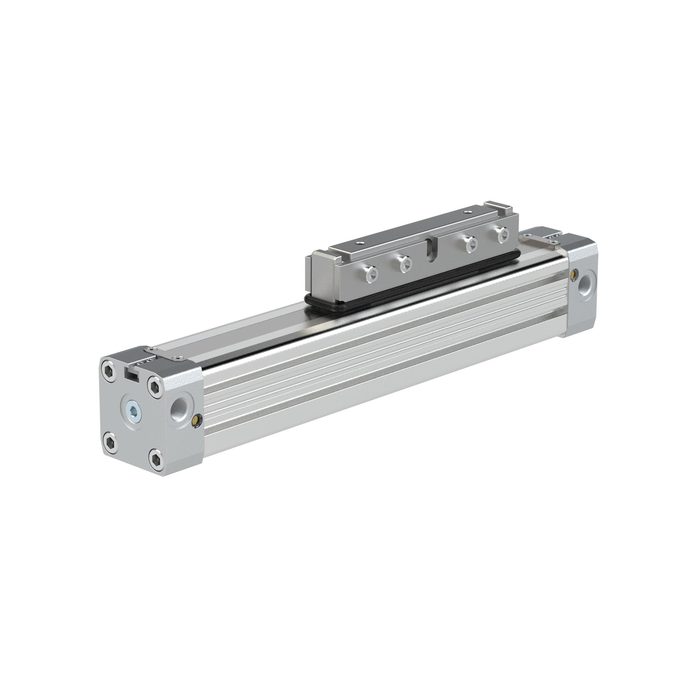

RIEGLER Piston rod, left cylinder, ZRL1C, Ø 32, stroke 1700, proven load clutch
Type number: ZRL1C.321700.KBW
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER ZRL1C Rodless Cylinder (Pneumatic Cylinder) for automation technology, for automation technology – Type ZRL1C.321700.KBW
The RIEGLER ZRL1C rodless cylinder, Ø 32, stroke 1700, with a movable load coupling, enables long strokes in a compact installation space and precise linear movements. The seals are made of oil-resistant synthetic rubber (NBR). The permissible medium temperature ranges from -10 °C to 80 °C. G 1/4 connection—compatible with common industrial standards. Suitable for filtered compressed air (max. 50 µm). The compact design saves installation space while delivering full performance.
Scope of Application
Typical applications: Linear actuators, rodless cylinders, and rodless cylinders in compressed air and pneumatic systems.
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Medium | Filtered compressed air (max. 50 µm) |
| Working pressure min. | 0.5 bar |
| Working pressure max. | 8 bar |
| Installation position | any |
| Sealing tapes | Stainless steel |
| Piston Ø | 32 mm |
| Function | double-acting |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | with adjustable damping |
| Piston caps and sliding parts | abrasion-resistant plastic |
| Stand Material Compliance | 44621 |
| Air connection | 3-fold on both sides |
| Screws | Steel 10.9 galvanized |
| Sealing material | Oil-resistant plastic (NBR) |
| Stroke | 1700 mm |
| RoHS Directive | 2011/65/EU 2015/863/EU 2018/741/EU |
| Load clutch | Movable |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[130867] RIEGLER Piston rod, left cylinder, ZRL1C, Ø 16, stroke 650, standard](/web/image/product.template/273205/image_128/%5B130867%5D%20RIEGLER%20Piston%20rod%2C%20left%20cylinder%2C%20ZRL1C%2C%20%C3%98%2016%2C%20stroke%20650%2C%20standard?unique=c7111f6)
|
Type number: ZRL1C.160650 |
362.65 € | |
![[147063] RIEGLER Piston rod, left cylinder, ZRL1C, Ø 25, stroke 1420, standard](/web/image/product.template/284053/image_128/%5B147063%5D%20RIEGLER%20Piston%20rod%2C%20left%20cylinder%2C%20ZRL1C%2C%20%C3%98%2025%2C%20stroke%201420%2C%20standard?unique=c7111f6)
|
Type number: ZRL1C.251420 |
465.52 € | |
![[147199] RIEGLER Piston rod, left cylinder, ZRL1C, Ø 25, stroke 1500, standard](/web/image/product.template/284111/image_128/%5B147199%5D%20RIEGLER%20Piston%20rod%2C%20left%20cylinder%2C%20ZRL1C%2C%20%C3%98%2025%2C%20stroke%201500%2C%20standard?unique=c7111f6)
|
Type number: ZRL1C.251500 |
474.06 € | |
![[145735] RIEGLER Piston rod, left cylinder, ZRL1C, Ø 25, stroke 1860, FPM seals](/web/image/product.template/279355/image_128/%5B145735%5D%20RIEGLER%20Piston%20rod%2C%20left%20cylinder%2C%20ZRL1C%2C%20%C3%98%2025%2C%20stroke%201860%2C%20FPM%20seals?unique=c7111f6)
|
Type number: ZRL1C.251860.F |
544.78 € | |
![[129680] RIEGLER Rodless Cylinder ZRL1C, Ø 16, stroke 100, standard](/web/image/product.template/273031/image_128/%5B129680%5D%20RIEGLER%20Rodless%20Cylinder%20ZRL1C%2C%20%C3%98%2016%2C%20stroke%20100%2C%20standard?unique=c7111f6)
|
Type number: ZRL1C.160100 |
290.50 € | |
![[145465] RIEGLER Rodless Cylinder ZRL1C, Ø 25, stroke 1000, FPM seals](/web/image/product.template/279222/image_128/%5B145465%5D%20RIEGLER%20Rodless%20Cylinder%20ZRL1C%2C%20%C3%98%2025%2C%20stroke%201000%2C%20FPM%20seals?unique=c7111f6)
|
Type number: ZRL1C.251000.F |
453.02 € | |
![[129681] RIEGLER Rodless Cylinder ZRL1C, Ø 25, stroke 100, standard](/web/image/product.template/273032/image_128/%5B129681%5D%20RIEGLER%20Rodless%20Cylinder%20ZRL1C%2C%20%C3%98%2025%2C%20stroke%20100%2C%20standard?unique=c7111f6)
|
Type number: ZRL1C.250100 |
309.22 € | |
![[129682] RIEGLER Rodless Cylinder ZRL1C, Ø 32, stroke 100, standard](/web/image/product.template/273033/image_128/%5B129682%5D%20RIEGLER%20Rodless%20Cylinder%20ZRL1C%2C%20%C3%98%2032%2C%20stroke%20100%2C%20standard?unique=c7111f6)
|
Type number: ZRL1C.320100 |
437.36 € | |
![[129683] RIEGLER Rodless Cylinder ZRL1C, Ø 40, stroke 100, standard](/web/image/product.template/273034/image_128/%5B129683%5D%20RIEGLER%20Rodless%20Cylinder%20ZRL1C%2C%20%C3%98%2040%2C%20stroke%20100%2C%20standard?unique=c7111f6)
|
Type number: ZRL1C.400100 |
535.39 € | |
![[129859] RIEGLER Rodless Cylinder ZRL1C, Ø 40, stroke 1600, standard](/web/image/product.template/273073/image_128/%5B129859%5D%20RIEGLER%20Rodless%20Cylinder%20ZRL1C%2C%20%C3%98%2040%2C%20stroke%201600%2C%20standard?unique=c7111f6)
|
Type number: ZRL1C.401600 |
823.65 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[129638] RIEGLER REED sensor, 2-wire, 5-meter cable, 5–130 V AC/DC, 6 W, NO, LED](/web/image/product.template/273848/image_128/%5B129638%5D%20RIEGLER%20REED%20sensor%2C%202-wire%2C%205-meter%20cable%2C%205%E2%80%93130%20V%20AC-DC%2C%206%20W%2C%20NO%2C%20LED?unique=c7111f6)
|
Type number: RS.ZRL1.K5 |
22.06 € | |
![[129639] RIEGLER HALL sensor, 3-wire, M8 plug, 10–30 V DC, 4 W, NO, PNP, LED](/web/image/product.template/273849/image_128/%5B129639%5D%20RIEGLER%20HALL%20sensor%2C%203-wire%2C%20M8%20plug%2C%2010%E2%80%9330%20V%20DC%2C%204%20W%2C%20NO%2C%20PNP%2C%20LED?unique=c7111f6)
|
Type number: HS.ZRL1.PNP.M8 |
36.19 € | |
![[129642] RIEGLER Foot Mounting for Rodless Cylinder ZRL1 Ø32](/web/image/product.template/273852/image_128/%5B129642%5D%20RIEGLER%20Foot%20Mounting%20for%20Rodless%20Cylinder%20ZRL1%20%C3%9832?unique=c7111f6)
|
Type number: FB.ZRL1.32 |
43.67 € | |
![[129643] RIEGLER Foot Mounting for Piston Rod, Cyl. ZRL1 Ø32, Vertical](/web/image/product.template/273853/image_128/%5B129643%5D%20RIEGLER%20Foot%20Mounting%20for%20Piston%20Rod%2C%20Cyl.%20ZRL1%20%C3%9832%2C%20Vertical?unique=c7111f6)
|
Type number: FB.ZRL1.32V |
51.59 € | |
![[129649] RIEGLER Center Mounting for Rodless Cylinders ZRL1 Ø32](/web/image/product.template/273001/image_128/%5B129649%5D%20RIEGLER%20Center%20Mounting%20for%20Rodless%20Cylinders%20ZRL1%20%C3%9832?unique=c7111f6)
|
Type number: MB.ZRL1.32 |
40.36 € | |

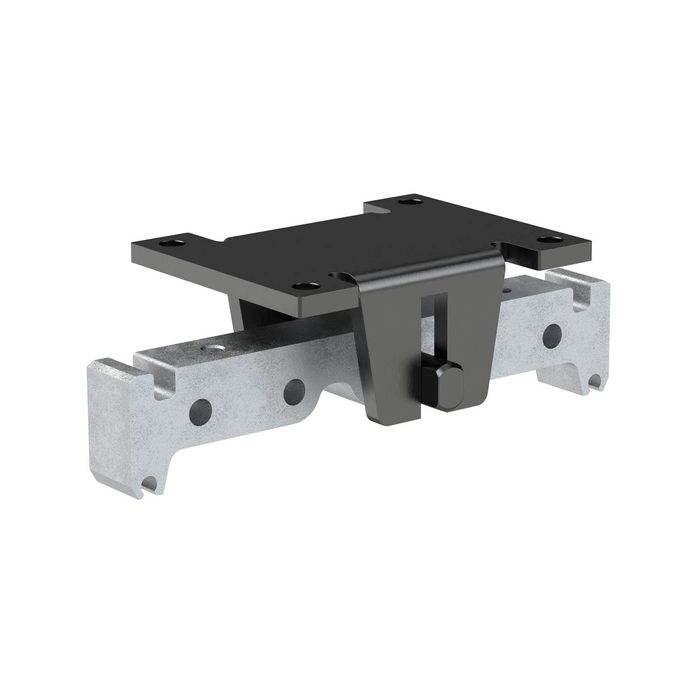

![[129659] RIEGLER Movable Load Clutch for Piston Rod, Cyl. ZRL1C, Ø32](/web/image/product.template/273011/image_128/%5B129659%5D%20RIEGLER%20Movable%20Load%20Clutch%20for%20Piston%20Rod%2C%20Cyl.%20ZRL1C%2C%20%C3%9832?unique=c7111f6)
|
