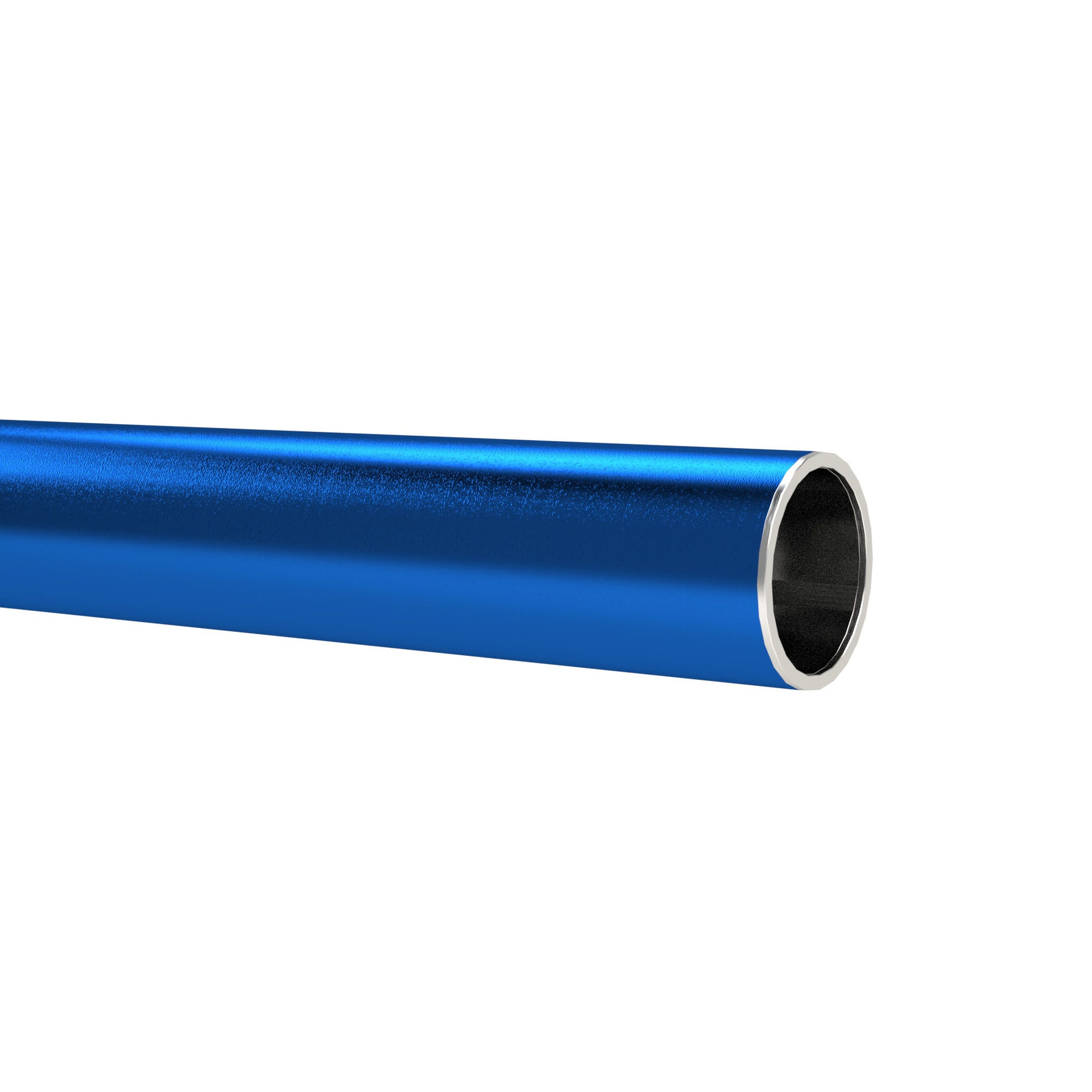

RIEGLER aluminum tube, blue, tube-ø 15x13, 3 m
Typennummer: ALR1513.3
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Aluminum tube made of surface-coated aluminum, for compressed air distribution, max. 20 bar - Type ALR1513.3
The RIEGLER aluminum pipe, blue, pipe ø 15x13, 3 m conducts compressed air and media flexibly or permanently installed. The housing is made of surface-coated aluminum. The operating pressure range is -0.95 bar to 20 bar. The operating temperature is between -20 °C and 65 °C. Flexible and pressure-resistant.
Field of application
Typical areas of application: Compressed air distribution and media lines.
| RoHS material information | Rohs compliant |
| Colour | blue |
| Working pressure min. | -0.95 bar |
| Operating temperature min. | -20 °C |
| Tube inside Ø | 13 mm |
| Tube outer Ø | 15 mm |
| Working pressure max. | 20 bar |
| Pipe length | 3 m |
| Operating temperature max. | 65 °C |
| REACH Info | no SVHC substance contained |
| Material | surface-coated aluminum |
| Class name | PLUS |
