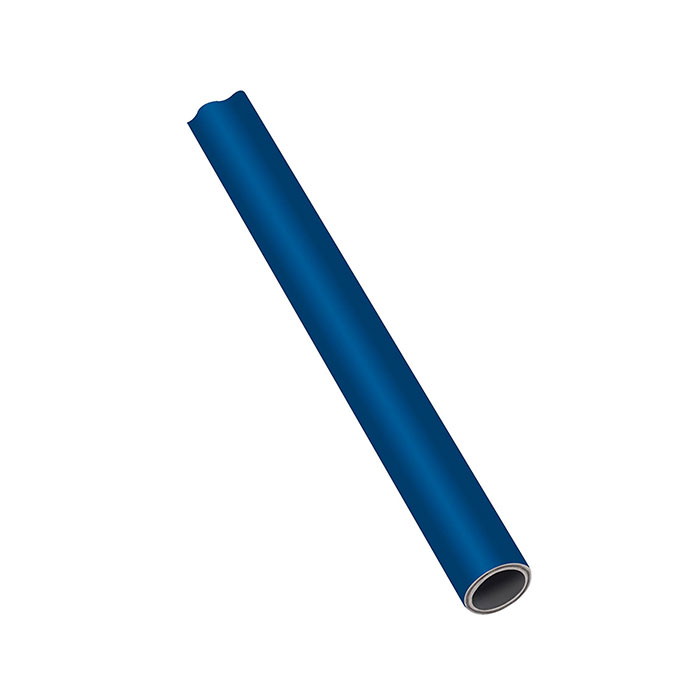

RIEGLER Aluminium pipe, blue, Pipe Ø 15x13, PU 10 pcs., Length 3 m
Typennummer: 90.1513-BE-10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Aluminum tube made of surface-coated aluminum, for compressed air distribution, max. 20 bar - Type 90.1513-BE-10
The RIEGLER aluminum pipe, blue, pipe ø 15x13, PU 10 pcs, 3 m forms the fixed line network for compressed air distribution. The housing is made of surface-coated aluminum. The operating pressure range is -0.95 bar to 20 bar. The operating temperature is between -20 °C and 65 °C. Durable and low-leakage.
Field of application
Typical areas of application: Stationary compressed air distribution.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 20 bar |
| Material | surface-coated aluminum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 65 °C |
| Pipe length | 3 m |
| Colour | blue |
| Tube outer Ø | 15 mm |
| Tube inside Ø | 13 mm |
| PU | 10 pcs |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[152263] RIEGLER Aluminium pipe, blue, Pipe Ø 15x13, PU 20 pcs., Length 3 m](/web/image/product.template/211160/image_128/%5B152263%5D%20RIEGLER%20Aluminium%20pipe%2C%20blue%2C%20Pipe%20%C3%98%2015x13%2C%20PU%2020%20pcs.%2C%20Length%203%20m?unique=d5347f4)
|
Typennummer: 90.1513-BE |
429.45 € | |

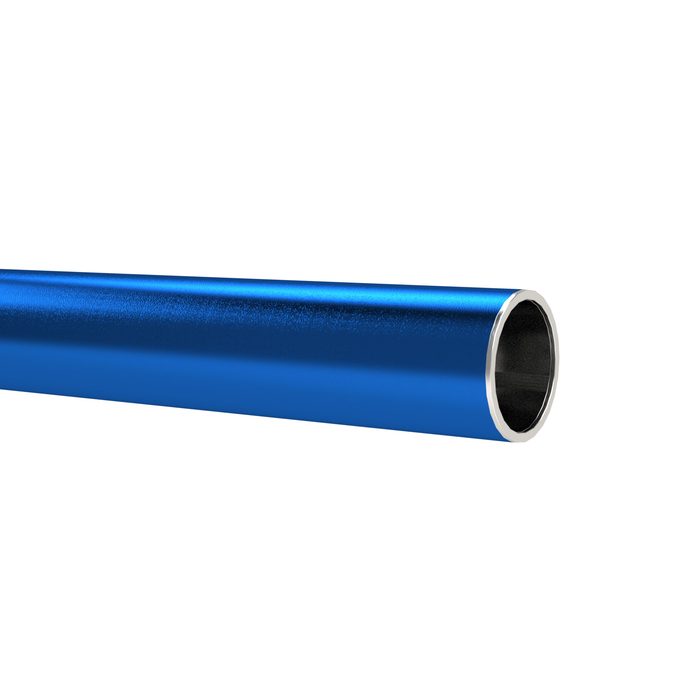

![[152293] RIEGLER Aluminium pipe, blue, Pipe Ø 18x16, PU 10 pcs., Length 3 m](/web/image/product.template/211165/image_128/%5B152293%5D%20RIEGLER%20Aluminium%20pipe%2C%20blue%2C%20Pipe%20%C3%98%2018x16%2C%20PU%2010%20pcs.%2C%20Length%203%20m?unique=d5347f4)
|
