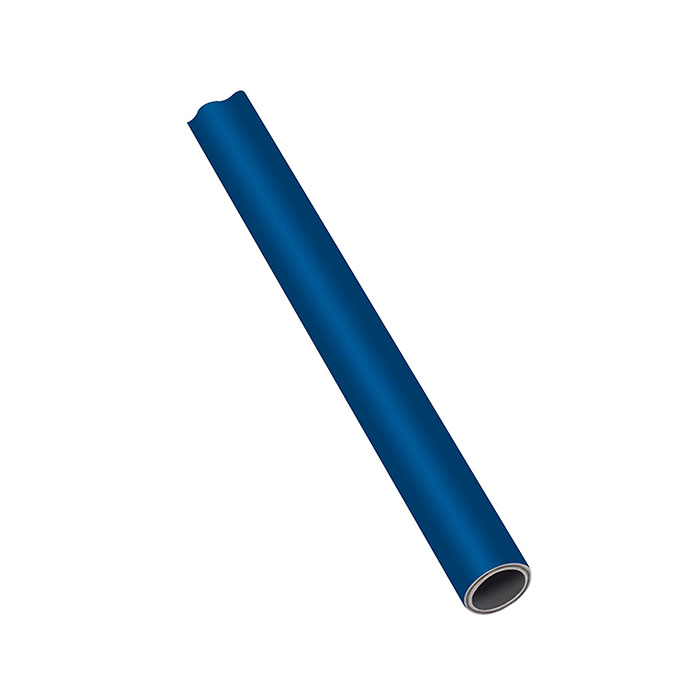

RIEGLER Aluminium pipe, blue, Pipe Ø 15x13, PU 20 pcs., Length 3 m
Typennummer: 90.1513-BE
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Aluminum tube made of surface-coated aluminum, for compressed air distribution, max. 20 bar - Type 90.1513-BE
The RIEGLER aluminum pipe, blue, pipe ø 15x13, PU 20 pcs, 3 m forms the fixed line network for compressed air distribution. The housing is made of surface-coated aluminum. The operating pressure range is -0.95 bar to 20 bar. The operating temperature is between -20 °C and 65 °C. Durable and low-leakage.
Field of application
Typical areas of application: Stationary compressed air distribution.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 20 bar |
| Material | surface-coated aluminum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 65 °C |
| Pipe length | 3 m |
| Colour | blue |
| Tube outer Ø | 15 mm |
| Tube inside Ø | 13 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| PU | 20 pcs |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[152287] RIEGLER Aluminium pipe, blue, Pipe Ø 15x13, PU 10 pcs., Length 3 m](/web/image/product.template/211164/image_128/%5B152287%5D%20RIEGLER%20Aluminium%20pipe%2C%20blue%2C%20Pipe%20%C3%98%2015x13%2C%20PU%2010%20pcs.%2C%20Length%203%20m?unique=34d466e)
|
Typennummer: 90.1513-BE-10 |
195.06 € | |
![[152293] RIEGLER Aluminium pipe, blue, Pipe Ø 18x16, PU 10 pcs., Length 3 m](/web/image/product.template/211165/image_128/%5B152293%5D%20RIEGLER%20Aluminium%20pipe%2C%20blue%2C%20Pipe%20%C3%98%2018x16%2C%20PU%2010%20pcs.%2C%20Length%203%20m?unique=34d466e)
|
Typennummer: 90.1816-BE-10 |
224.29 € | |
![[152264] RIEGLER Aluminium pipe, blue, Pipe Ø 18x16, PU 20 pcs., Length 3 m](/web/image/product.template/211161/image_128/%5B152264%5D%20RIEGLER%20Aluminium%20pipe%2C%20blue%2C%20Pipe%20%C3%98%2018x16%2C%20PU%2020%20pcs.%2C%20Length%203%20m?unique=34d466e)
|
Typennummer: 90.1816-BE |
492.86 € | |

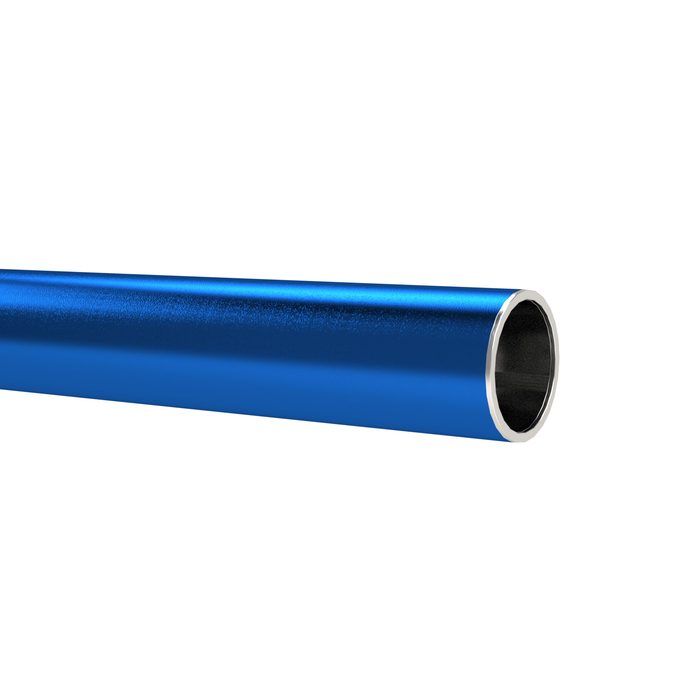

![[152294] RIEGLER Aluminium pipe, blue, Pipe Ø 22x20, PU 10 pcs., Length 3 m](/web/image/product.template/211166/image_128/%5B152294%5D%20RIEGLER%20Aluminium%20pipe%2C%20blue%2C%20Pipe%20%C3%98%2022x20%2C%20PU%2010%20pcs.%2C%20Length%203%20m?unique=34d466e)
|
