RIEGLER 5/3-way valve, elpn, external control, center closed, G 1/8, 230VAC
Model Number: 517.53.18.E.CC.230A
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
147307EAN :
4047322790338Category :
Valves Electropneumatically OperatedWeight :
0.01 kgRIEGLER 5/3-way valve for pneumatic control, max. 10 bar, G 1/8 - Type 517.53.18.E.CC.230A
The RIEGLER 5/3-way valve, elpn, ext. control, center closed, G 1/8, 230VAC controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is -0.99 bar to 10 bar. The permissible medium temperature is between -10 °C and 60 °C. G 1/8 connection thread - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. Operating voltage 230 V AC. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Execution | electropneumatic |
| Control air supply | external |
| Tension | 230 V AC |
| Symbol | 61 |
| Scope of delivery | with plug and coil |
| Frequency | 50/60 Hz |
| Pilot air connection | M5 |
| Series | Series 70 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow 2 | 550 Nl/min |
| Flow 1 | 400 Nl/min |
| Function | 5/3 |
| Actuation | Center closed |
| DN | 5 |
| Operating pressure min. | -0.99 bar |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control pressure max. | 10 bar |
| Max. operating pressure | 10 bar |
| Control pressure min. | 2.5 bar |
| Ambient temperature max. | 50 °C |
| Medium temperature max. | 60 °C |
| Connection | G 1/8 |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[147420] RIEGLER 2x3/2-way valve, elpn, ext. control, mono, G 1/8, NC, 230 V AC](/web/image/product.template/284300/image_128/%5B147420%5D%20RIEGLER%202x3-2-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20mono%2C%20G%201-8%2C%20NC%2C%20230%20V%20AC?unique=3f7dc0e)
|
Part Number: 517.232.18.E.NC.230A |
130.42 € | |
![[147410] RIEGLER 2x3/2-way valve, elpn, ext. control, mono, G 1/8, NO, 230 V AC](/web/image/product.template/284290/image_128/%5B147410%5D%20RIEGLER%202x3-2-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20mono%2C%20G%201-8%2C%20NO%2C%20230%20V%20AC?unique=6f78578)
|
Part Number: 517.232.18.E.NO.230A |
130.42 € | |
![[147247] RIEGLER 3/2-way valve, elpn., ext. control air, bistable, G 1/8, 230 V AC](/web/image/product.template/284142/image_128/%5B147247%5D%20RIEGLER%203-2-way%20valve%2C%20elpn.%2C%20ext.%20control%20air%2C%20bistable%2C%20G%201-8%2C%20230%20V%20AC?unique=0c015e7)
|
Part Number: 517.32.18.E.B.230A |
105.84 € | |

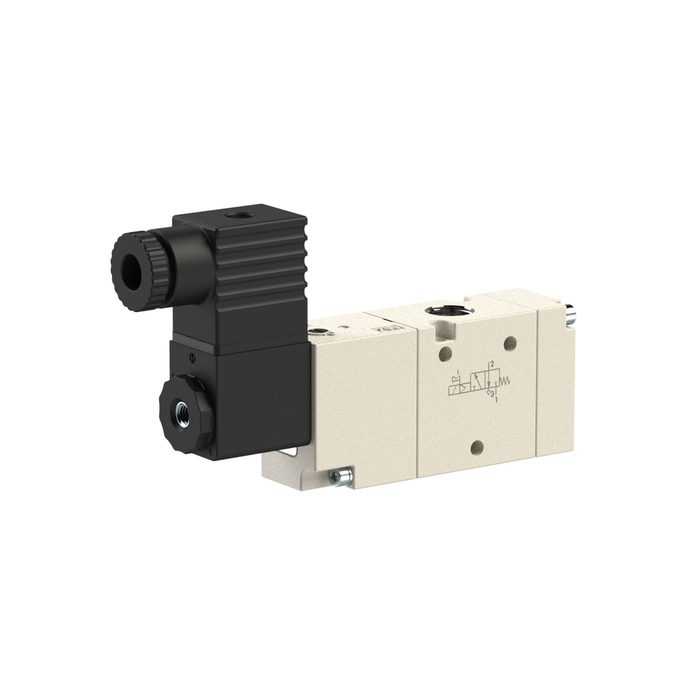

![[147227] RIEGLER 3/2-way valve, elpn., ext. control, mono, G 1/8, NC, 230 V AC](/web/image/product.template/284122/image_128/%5B147227%5D%20RIEGLER%203-2-way%20valve%2C%20elpn.%2C%20ext.%20control%2C%20mono%2C%20G%201-8%2C%20NC%2C%20230%20V%20AC?unique=fb673ef)
|
Part Number: 517.32.18.E.NC.230A |
74.15 € | |
![[147287] RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/8, 230 V AC](/web/image/product.template/284182/image_128/%5B147287%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%20air%2C%20bistable%2C%20G%201-8%2C%20230%20V%20AC?unique=e488f17)
|
Part Number: 517.52.18.E.B.230A |
109.38 € | |

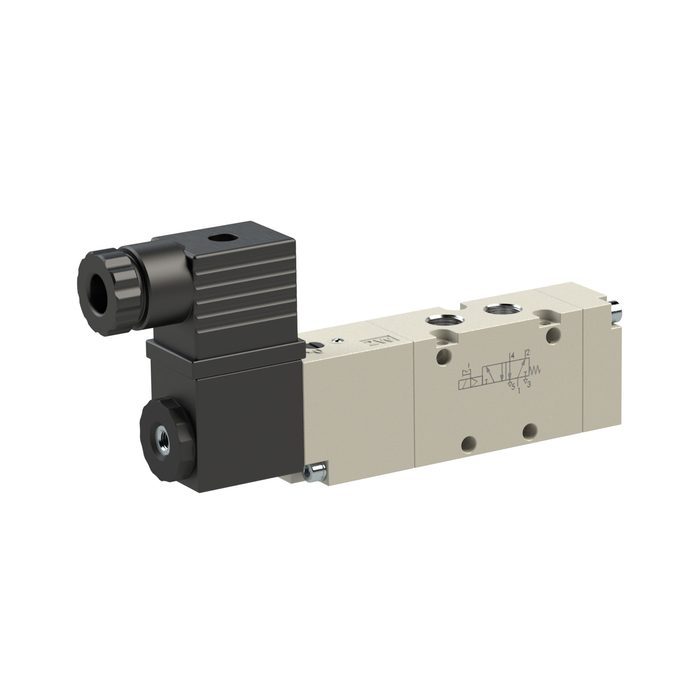

![[147267] RIEGLER 5/2-way valve, elpn., ext. control, monostable, G 1/8, 230 V AC](/web/image/product.template/284162/image_128/%5B147267%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%2C%20monostable%2C%20G%201-8%2C%20230%20V%20AC?unique=5cf8f37)
|
