RIEGLER 2x3/2-way valve, elpn, ext. control, mono, G 1/4, NO, 24 V DC

https://www.filcom-technik.de/web/image/product.template/284289/image_1920?unique=2e01ce2

Typennummer: 517.232.14.E.NO.24D

154.80 € 154.8 EUR 154.80 € VAT Included

180.66 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

147409

EAN :

4047322791205

Category :

Valves Electropneumatically Operated

Weight :

0.01 kg

2x3/2-way valve, electropneumatic, ext. control, monostable, G 1/4, NO, 24 V DC, p= vacuum?10 bar, control pressure 2.5?10 bar, aluminum

Execution electropneumatic
Control air supply external
Symbol 67
Scope of delivery with plug and coil
Function 2x3/2 NO
Series Series 70
Flow rate measurement 1 Flow rate at 6 bar and ∆p 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar
Flow 2 1100 Nl/min
Flow 1 750 Nl/min
Actuation monostable
DN 8
Operating pressure min. -0.99 bar
Ambient temperature min. -10 °C
Medium temperature min. -10 °C
Control pressure max. 10 bar
Max. operating pressure 10 bar
Control pressure min. 2.5 bar
Tension 24 V DC
Ambient temperature max. 50 °C
Medium temperature max. 60 °C
Connection G 1/4
Pilot air connection G 1/8
Medium Filtered compressed air with or without lubrication. If lubricated, then continuous.
Sealing material NBR
Class name PLUS
Manual override resting

Maintenance, wear and spare parts

Product Price

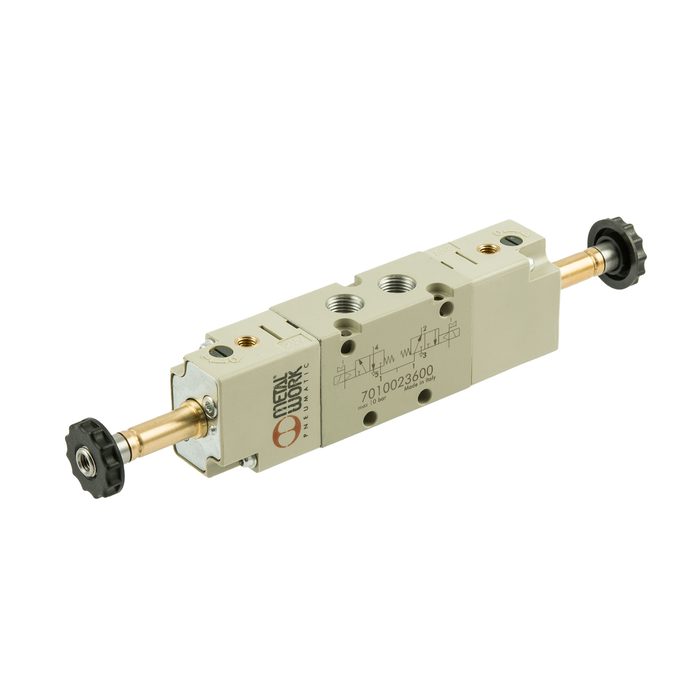

[147148] RIEGLER 2x3/2-way valve, electropneumatic, ext. control, mono, G 1/4, NO

Typennummer: 7020023500

 143.45 €
[117313] RIEGLER Device plug, 22 mm, type B

Type number: 1920.9P

 1.48 €
[118632] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V DC, 2 W

Type number: 400-514-42

 9.87 €
