RIEGLER 2x3/2-way valve, elpn, ext. control, mono, G 1/4, NC, 24 V DC
Typennummer: 517.232.14.E.NC.24D
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
147419EAN :
4047322791304Category :
Valves Electropneumatically OperatedWeight :
0.01 kgRIEGLER 2x3/2-way valve for pneumatic control, max. 10 bar, G 1/4 - Type 517.232.14.E.NC.24D
The RIEGLER 2x3/2-way valve, elpn, ext. control, mono, G 1/4, NC, 24 V DC controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is -0.99 bar to 10 bar. The permissible medium temperature is between -10 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. Operating voltage 24 V DC. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Execution | electropneumatic |
| Control air supply | external |
| Symbol | 68 |
| Scope of delivery | with plug and coil |
| Function | 2x3/2 NC |
| Series | Series 70 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow 2 | 1100 Nl/min |
| Flow 1 | 750 Nl/min |
| Actuation | monostable |
| DN | 8 |
| Operating pressure min. | -0.99 bar |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control pressure max. | 10 bar |
| Max. operating pressure | 10 bar |
| Control pressure min. | 2.5 bar |
| Tension | 24 V DC |
| Ambient temperature max. | 50 °C |
| Medium temperature max. | 60 °C |
| Connection | G 1/4 |
| Pilot air connection | G 1/8 |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

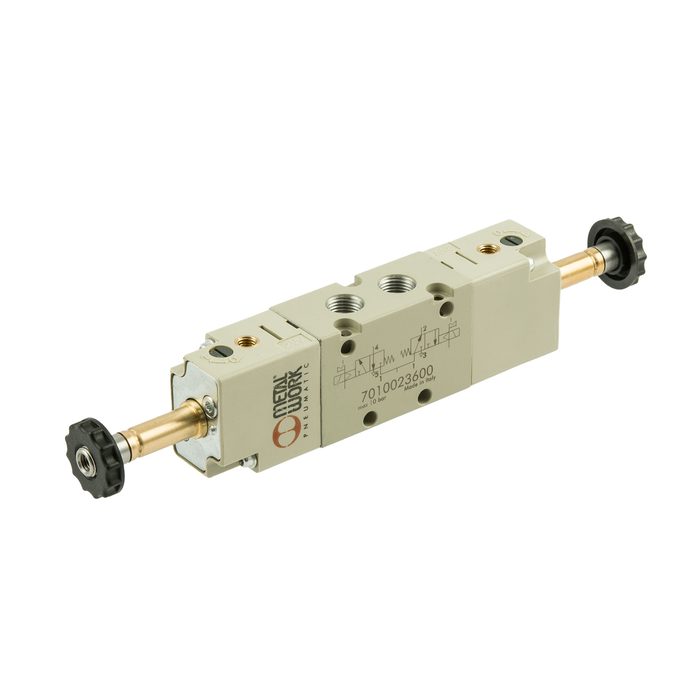

![[147150] RIEGLER 2x3/2-way valve, electropn., ext. control, mono, G 1/4, NC](/web/image/product.template/284092/image_128/%5B147150%5D%20RIEGLER%202x3-2-way%20valve%2C%20electropn.%2C%20ext.%20control%2C%20mono%2C%20G%201-4%2C%20NC?unique=3ec11ea)
|
Typennummer: 7020023400 |
143.45 € | |
![[117313] RIEGLER Device plug, 22 mm, type B](/web/image/product.template/274839/image_128/%5B117313%5D%20RIEGLER%20Device%20plug%2C%2022%20mm%2C%20type%20B?unique=4bd6d96)
|
Type number: 1920.9P |
1.48 € | |
![[118632] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V DC, 2 W](/web/image/product.template/275048/image_128/%5B118632%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20DC%2C%202%20W?unique=0560891)
|
Type number: 400-514-42 |
9.87 € | |
