RIEGLER 2x3/2-way valve, elpn, ext. control, mono, G 1/4, NC-NO, 24 VDC
Part Number: 517.232.14.E.NCNO.24D
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
147429EAN :
4047322791403Category :
Valves Electropneumatically OperatedWeight :
0.01 kgRIEGLER 2x3/2-way valve for pneumatic control, max. 10 bar, G 1/4 - Type 517.232.14.E.NCNO.24D
The RIEGLER 2x3/2-way valve, elpn, ext. control, mono, G 1/4, NC-NO, 24 VDC controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is -0.99 bar to 10 bar. The permissible medium temperature is between -10 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. Operating voltage 24 V DC. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Execution | electropneumatic |
| Control air supply | external |
| Symbol | 69 |
| Scope of delivery | with plug and coil |
| Function | 2x3/2 NC-NO |
| Series | Series 70 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow 2 | 1100 Nl/min |
| Flow 1 | 750 Nl/min |
| Actuation | monostable |
| DN | 8 |
| Operating pressure min. | -0.99 bar |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control pressure max. | 10 bar |
| Max. operating pressure | 10 bar |
| Control pressure min. | 2.5 bar |
| Tension | 24 V DC |
| Ambient temperature max. | 50 °C |
| Medium temperature max. | 60 °C |
| Connection | G 1/4 |
| Pilot air connection | G 1/8 |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[147419] RIEGLER 2x3/2-way valve, elpn, ext. control, mono, G 1/4, NC, 24 V DC](/web/image/product.template/284299/image_128/%5B147419%5D%20RIEGLER%202x3-2-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20mono%2C%20G%201-4%2C%20NC%2C%2024%20V%20DC?unique=1a1ae7c)
|
Part Number: 517.232.14.E.NC.24D |
156.94 € | |
![[147433] RIEGLER 2x3/2-way valve, elpn, ext. control, mono, G 1/4, NC-NO, 12 VDC](/web/image/product.template/284313/image_128/%5B147433%5D%20RIEGLER%202x3-2-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20mono%2C%20G%201-4%2C%20NC-NO%2C%2012%20VDC?unique=1f7bb45)
|
Part Number: 517.232.14.E.NCNO.12D |
156.94 € | |
![[147409] RIEGLER 2x3/2-way valve, elpn, ext. control, mono, G 1/4, NO, 24 V DC](/web/image/product.template/284289/image_128/%5B147409%5D%20RIEGLER%202x3-2-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20mono%2C%20G%201-4%2C%20NO%2C%2024%20V%20DC?unique=9f39266)
|
Part Number: 517.232.14.E.NO.24D |
156.94 € | |
![[147244] RIEGLER 3/2-way valve, elpn., ext. control air, bistable, G 1/4, 24 V DC](/web/image/product.template/284139/image_128/%5B147244%5D%20RIEGLER%203-2-way%20valve%2C%20elpn.%2C%20ext.%20control%20air%2C%20bistable%2C%20G%201-4%2C%2024%20V%20DC?unique=a63089c)
|
Part Number: 517.32.14.E.B.24D |
108.35 € | |
![[147224] RIEGLER 3/2-way valve, elpn., ext. control, mono, G 1/4, NC, 24 V DC](/web/image/product.template/284119/image_128/%5B147224%5D%20RIEGLER%203-2-way%20valve%2C%20elpn.%2C%20ext.%20control%2C%20mono%2C%20G%201-4%2C%20NC%2C%2024%20V%20DC?unique=e3284b9)
|
Part Number: 517.32.14.E.NC.24D |
83.34 € | |
![[147284] RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/4, 24 V DC](/web/image/product.template/284179/image_128/%5B147284%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%20air%2C%20bistable%2C%20G%201-4%2C%2024%20V%20DC?unique=c737cea)
|
Part Number: 517.52.14.E.B.24D |
113.81 € | |
![[147264] RIEGLER 5/2-way valve, elpn., ext. control, monostable, G 1/4, 24 V DC](/web/image/product.template/284159/image_128/%5B147264%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%2C%20monostable%2C%20G%201-4%2C%2024%20V%20DC?unique=8481a99)
|
Part Number: 517.52.14.E.M.24D |
88.83 € | |
![[147344] RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/4, 24 VDC](/web/image/product.template/284239/image_128/%5B147344%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20center%20vented%2C%20G%201-4%2C%2024%20VDC?unique=6eef1d0)
|
Part Number: 517.53.14.E.PC.24D |
140.22 € | |
![[147324] RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/4, 24VDC](/web/image/product.template/284219/image_128/%5B147324%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20center%20vented%2C%20G%201-4%2C%2024VDC?unique=fad9819)
|
Model Number: 517.53.14.E.OC.24D |
140.22 € | |
![[147304] RIEGLER 5/3-way valve, elpn, external control, center closed, G 1/4, 24 VDC](/web/image/product.template/284199/image_128/%5B147304%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20external%20control%2C%20center%20closed%2C%20G%201-4%2C%2024%20VDC?unique=058ecad)
|
Model Number: 517.53.14.E.CC.24D |
140.22 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[106607] RIEGLER Mounting bracket set for way valves, Height 120 mm, G 1/4](/web/image/product.template/175664/image_128/%5B106607%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%20120%20mm%2C%20G%201-4?unique=a6a1414)
|
Type number: 518.120-14 |
18.04 € | |
![[106608] RIEGLER Mounting bracket set for way valves, Height 60 mm, G 1/4](/web/image/product.template/175665/image_128/%5B106608%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%2060%20mm%2C%20G%201-4?unique=e5fbac2)
|
Type number: 518.60-14 |
16.53 € | |
![[106609] RIEGLER Mounting bracket set for way valves, Height 30 mm, G 1/4](/web/image/product.template/175666/image_128/%5B106609%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%2030%20mm%2C%20G%201-4?unique=fa99bee)
|
Type number: 518.30-14 |
16.53 € | |
![[106616] RIEGLER Supply strip for the way valves, with 2 valve positions, G 1/4](/web/image/product.template/175673/image_128/%5B106616%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%202%20valve%20positions%2C%20G%201-4?unique=6a0bf49)
|
Type number: 519.02-14 |
16.01 € | |
![[106617] RIEGLER Supply strip for the way valves, with 3 valve positions, G 1/4](/web/image/product.template/175674/image_128/%5B106617%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%203%20valve%20positions%2C%20G%201-4?unique=0d3727f)
|
Type number: 519.03-14 |
21.63 € | |
![[106618] RIEGLER Supply strip for the way valves, with 4 valve positions, G 1/4](/web/image/product.template/175675/image_128/%5B106618%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%204%20valve%20positions%2C%20G%201-4?unique=4a9a2c4)
|
Type number: 519.04-14 |
25.97 € | |
![[106619] RIEGLER Supply strip for the way valves, with 5 valve positions, G 1/4](/web/image/product.template/175676/image_128/%5B106619%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%205%20valve%20positions%2C%20G%201-4?unique=b04ee13)
|
Type number: 519.05-14 |
32.69 € | |
![[106620] RIEGLER Supply strip for the way valves, with 6 valve positions, G 1/4](/web/image/product.template/175677/image_128/%5B106620%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%206%20valve%20positions%2C%20G%201-4?unique=dc327b6)
|
Type number: 519.06-14 |
39.28 € | |
![[106621] RIEGLER Supply strip for the way valves, with 7 valve positions, G 1/4](/web/image/product.template/175678/image_128/%5B106621%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%207%20valve%20positions%2C%20G%201-4?unique=d81b5c5)
|
Type number: 519.07-14 |
48.28 € | |
![[106632] RIEGLER Multi-base plate for the way valves, 2 valve positions, G 1/4](/web/image/product.template/175689/image_128/%5B106632%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%202%20valve%20positions%2C%20G%201-4?unique=b3bd4b4)
|
Type number: 520.02-14 |
52.66 € | |
![[106633] RIEGLER Multi-base plate for the way valves, 3 valve positions, G 1/4](/web/image/product.template/175690/image_128/%5B106633%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%203%20valve%20positions%2C%20G%201-4?unique=fe7bbe4)
|
Type number: 520.03-14 |
63.51 € | |
![[106634] RIEGLER Multi-base plate for the way valves, 4 valve positions, G 1/4](/web/image/product.template/175691/image_128/%5B106634%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%204%20valve%20positions%2C%20G%201-4?unique=94c1bbe)
|
Type number: 520.04-14 |
76.53 € | |
![[106635] RIEGLER Multi-base plate for the way valves, 5 valve positions, G 1/4](/web/image/product.template/175692/image_128/%5B106635%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%205%20valve%20positions%2C%20G%201-4?unique=5987bf2)
|
Type number: 520.05-14 |
91.50 € | |
![[106636] RIEGLER Multi-base plate for the way valves, 6 valve positions, G 1/4](/web/image/product.template/175693/image_128/%5B106636%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%206%20valve%20positions%2C%20G%201-4?unique=5316791)
|
Type number: 520.06-14 |
104.26 € | |
![[106637] RIEGLER Multi-base plate for the way valves, 7 valve positions, G 1/4](/web/image/product.template/175694/image_128/%5B106637%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%207%20valve%20positions%2C%20G%201-4?unique=0d75d35)
|
Type number: 520.07-14 |
119.36 € | |
![[106638] RIEGLER Multi-base plate for the way valves, 8 valve positions, G 1/4](/web/image/product.template/175695/image_128/%5B106638%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%208%20valve%20positions%2C%20G%201-4?unique=c28d137)
|
Type number: 520.08-14 |
140.74 € | |
![[106639] RIEGLER Multi-base plate for the way valves, 9 valve positions, G 1/4](/web/image/product.template/175696/image_128/%5B106639%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%209%20valve%20positions%2C%20G%201-4?unique=4209668)
|
Type number: 520.09-14 |
170.40 € | |
![[106640] RIEGLER Multi-base plate for the way valves, 10 valve positions, G 1/4](/web/image/product.template/175697/image_128/%5B106640%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%2010%20valve%20positions%2C%20G%201-4?unique=925a876)
|
Type number: 520.10-14 |
212.96 € | |
![[117314] RIEGLER Appliance plug with LED, 230 V, 22 mm, type B](/web/image/product.template/274840/image_128/%5B117314%5D%20RIEGLER%20Appliance%20plug%20with%20LED%2C%20230%20V%2C%2022%20mm%2C%20type%20B?unique=da7f3fa)
|
Type number: 1920.9PL.17 |
6.57 € | |
![[117316] RIEGLER Device plug with LED, 24 V, 22 mm, type B](/web/image/product.template/274841/image_128/%5B117316%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%2024%20V%2C%2022%20mm%2C%20type%20B?unique=13d8dfe)
|
Type number: 1920.9PL.42 |
6.57 € | |
![[117317] RIEGLER Device plug with LED, varistor 230 V, 22 mm, type B](/web/image/product.template/274842/image_128/%5B117317%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%20230%20V%2C%2022%20mm%2C%20type%20B?unique=41597e2)
|
Type number: 1920.9PLV17 |
6.57 € | |
![[117318] RIEGLER Device plug with LED, varistor 24 V, 22 mm, type B](/web/image/product.template/274843/image_128/%5B117318%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%2024%20V%2C%2022%20mm%2C%20type%20B?unique=2a16143)
|
Type number: 1920.9PLV42 |
6.57 € | |
![[118628] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275044/image_128/%5B118628%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=6a147c8)
|
Type number: 400-514-01 |
10.00 € | |
![[118629] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275045/image_128/%5B118629%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20110%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=f71b96f)
|
Type number: 400-514-07 |
10.00 € | |
![[118630] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 230 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275046/image_128/%5B118630%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20230%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=bd5e844)
|
Type number: 400-514-17 |
10.00 € | |
![[118631] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 12 V DC, 2 W](/web/image/product.template/275047/image_128/%5B118631%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2012%20V%20DC%2C%202%20W?unique=a72af14)
|
Type number: 400-514-41 |
10.00 € | |
![[118633] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V AC, 50/60 Hz, 5 VA](/web/image/product.template/275049/image_128/%5B118633%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20AC%2C%2050-60%20Hz%2C%205%20VA?unique=a956bba)
|
Type number: 400-517-01 |
10.00 € | |
![[118634] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 5 VA](/web/image/product.template/280914/image_128/%5B118634%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20110%20V%20AC%2C%2050-60%20Hz%2C%205%20VA?unique=a299739)
|
Type number: 400-517-07 |
10.00 € | |
![[118635] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 230 V AC, 50/60 Hz, 5 VA](/web/image/product.template/280915/image_128/%5B118635%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20230%20V%20AC%2C%2050-60%20Hz%2C%205%20VA?unique=dfa8fc9)
|
Type number: 400-517-17 |
10.00 € | |
![[118636] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 12 V DC, 5 W](/web/image/product.template/280916/image_128/%5B118636%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2012%20V%20DC%2C%205%20W?unique=10bfd04)
|
Type number: 400-517-41 |
10.00 € | |
![[118637] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V DC, 5 W](/web/image/product.template/280917/image_128/%5B118637%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20DC%2C%205%20W?unique=4024fc8)
|
Type number: 400-517-42 |
10.00 € | |
![[129849] RIEGLER Device plug with LED, varistor 110 V, 22 mm, type B](/web/image/product.template/273069/image_128/%5B129849%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%20110%20V%2C%2022%20mm%2C%20type%20B?unique=1d2fcce)
|
Type number: 1920.9PLV110 |
6.57 € | |
![[146739] RIEGLER Modular base plate for valves G 1/4, base plate system](/web/image/product.template/275990/image_128/%5B146739%5D%20RIEGLER%20Modular%20base%20plate%20for%20valves%20G%201-4%2C%20base%20plate%20system?unique=395f275)
|
Part Number: 0226005150 |
18.80 € | |
![[146740] RIEGLER Outlet plate without seals, G 1/4, base plate system](/web/image/product.template/275991/image_128/%5B146740%5D%20RIEGLER%20Outlet%20plate%20without%20seals%2C%20G%201-4%2C%20base%20plate%20system?unique=9945bc5)
|
Part Number: 0226005201 |
13.82 € | |
![[146741] RIEGLER Inlet plate with seals, G 1/4, base plate system](/web/image/product.template/275992/image_128/%5B146741%5D%20RIEGLER%20Inlet%20plate%20with%20seals%2C%20G%201-4%2C%20base%20plate%20system?unique=a9fc256)
|
Part Number: 0226005200 |
17.70 € | |
![[146742] RIEGLER Intermediate plate G 1/4, base plate system](/web/image/product.template/275993/image_128/%5B146742%5D%20RIEGLER%20Intermediate%20plate%20G%201-4%2C%20base%20plate%20system?unique=b1289ca)
|
Part Number: 0226005300 |
18.35 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

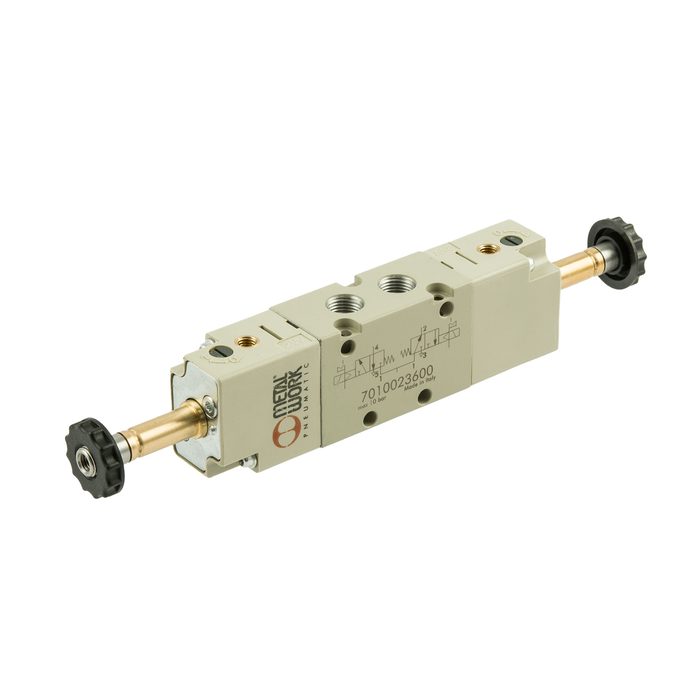

![[147152] RIEGLER 2x3/2-way valve, electropn., ext. control, mono, G 1/4, NC-NO](/web/image/product.template/284094/image_128/%5B147152%5D%20RIEGLER%202x3-2-way%20valve%2C%20electropn.%2C%20ext.%20control%2C%20mono%2C%20G%201-4%2C%20NC-NO?unique=beb9495)
|
