RIEGLER Heavy-Duty Ball Valve, Hand Lever, Female/Male Threads, Galvanized Steel, G 1/4
Part Number: 3350.22-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Heavy-duty nickel-plated brass ball valve for compressed air, water, and neutral media – Type 3350.22-1
The RIEGLER heavy-duty ball valve, with hand lever, female/male threads, nickel-plated brass, G 1/4, shuts off lines quickly, safely, and with full flow. The body is made of nickel-plated brass. The permissible medium temperature ranges from -20 °C to 130 °C. G 1/4 connection—compatible with common industrial standards. Suitable for use with compressed air, water, neutral and non-toxic gases, as well as EL and S heating oil, lubricating oils, and diesel fuels. The full bore minimizes pressure losses in the system.
Scope of Application
Typical applications: Shut-off valves, gas ball valves in compressed air and pneumatic systems.
| Housing | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE |
| Hand lever | Aluminum, painted black |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 130 °C |
| Thread | G 1/4 |

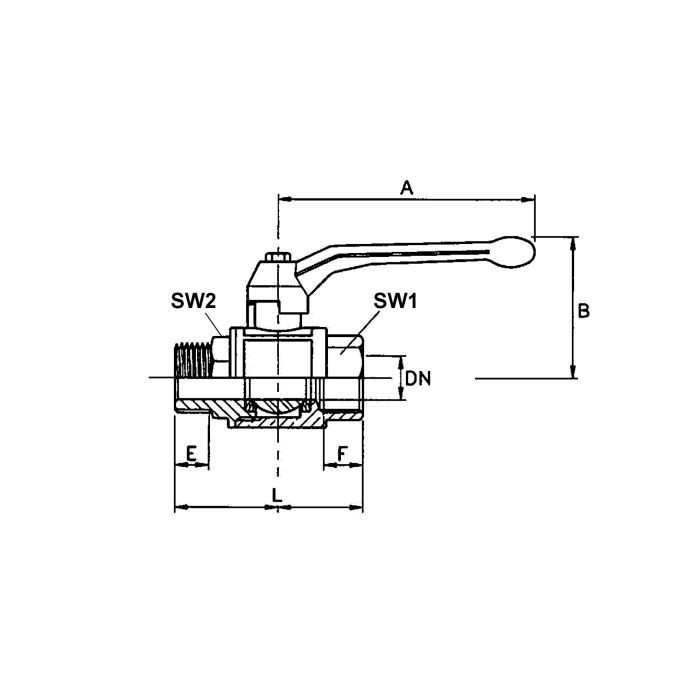

| DN | 8 mm |
| SW 1 | 18 mm |
| SW 2 | 18 mm |
| PN | 80 bar |
| Thread standard | DIN EN ISO 228-1 |
| A | 75 mm |
| B | 52 mm |
| L1 | 47 mm |
| E | 6.5 mm |
| F | 6.5 mm |
| Thread material | Brass bright |
| Class name | MAX |
