RIEGLER Heavy-Duty Ball Valve, Hand Lever, Female/Male Threads, Galvanized Steel, G 1/2
Part Number: 3350.44-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Heavy-duty nickel-plated brass ball valve for compressed air, water, and neutral media – Type 3350.44-1
The RIEGLER heavy-duty ball valve, with hand lever, female/male threads, nickel-plated brass, G 1/2, shuts off lines quickly, safely, and with full flow capacity. The body is made of nickel-plated brass. The permissible medium temperature ranges from -20 °C to 130 °C. G 1/2 connection—compatible with common industrial standards. Suitable for use with compressed air, water, neutral and non-toxic gases, as well as EL and S heating oil, lubricating oils, and diesel fuels. The full bore minimizes pressure losses in the system.
Scope of Application
Typical applications: Shut-off valves, gas ball valves in compressed air and pneumatic systems.
| Housing | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE |
| Hand lever | Aluminum, painted black |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 130 °C |
| Thread | G 1/2 |

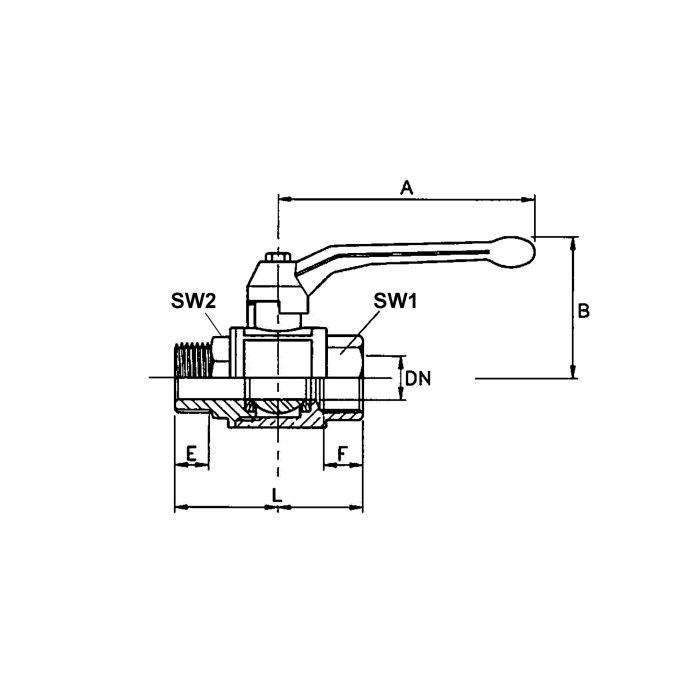

| DN | 15 mm |
| SW 1 | 26 mm |
| SW 2 | 26 mm |
| PN | 80 bar |
| Thread standard | DIN EN ISO 228-1 |
| A | 100 mm |
| B | 64 mm |
| L1 | 66 mm |
| E | 9.5 mm |
| F | 9.5 mm |
| Thread material | Brass bright |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[147608] RIEGLER ball valve, heavy-duty design, hand lever, IG/AG, MS nickel-plated, G 1 1/2](/web/image/product.template/284396/image_128/%5B147608%5D%20RIEGLER%20ball%20valve%2C%20heavy-duty%20design%2C%20hand%20lever%2C%20IG-AG%2C%20MS%20nickel-plated%2C%20G%201%201-2?unique=4f36a62)
|
Part Number: 3350.88-1 |
61.57 € | |
![[147603] RIEGLER ball valve, heavy-duty design, hand lever, IG/AG, MS nickel-plated, G 3/8](/web/image/product.template/284395/image_128/%5B147603%5D%20RIEGLER%20ball%20valve%2C%20heavy-duty%20design%2C%20hand%20lever%2C%20IG-AG%2C%20MS%20nickel-plated%2C%20G%203-8?unique=964c0f2)
|
Part Number: 3350.33-1 |
11.03 € | |

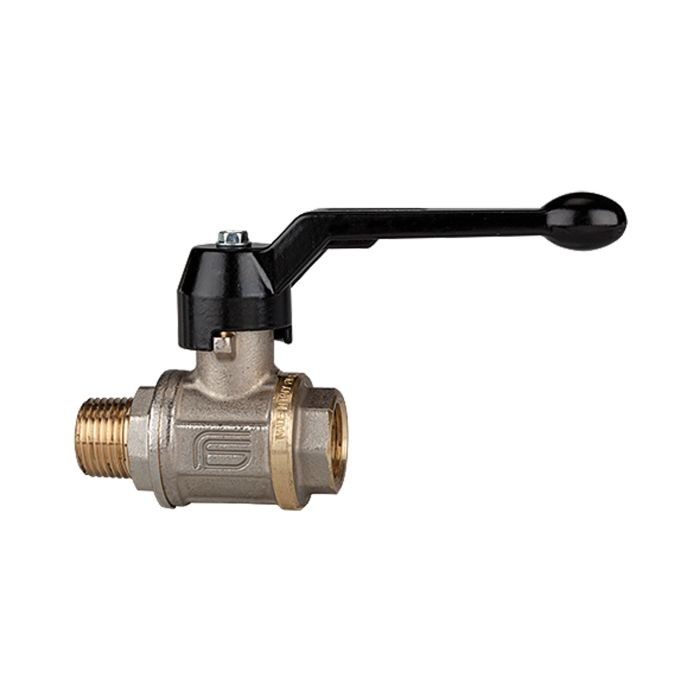

![[147606] RIEGLER Heavy-Duty Ball Valve, Hand Lever, Female/Male Threads, Galvanized Steel, G 1](/web/image/product.template/336392/image_128/%5B147606%5D%20RIEGLER%20Heavy-Duty%20Ball%20Valve%2C%20Hand%20Lever%2C%20Female-Male%20Threads%2C%20Galvanized%20Steel%2C%20G%201?unique=aa67a3d)
|
