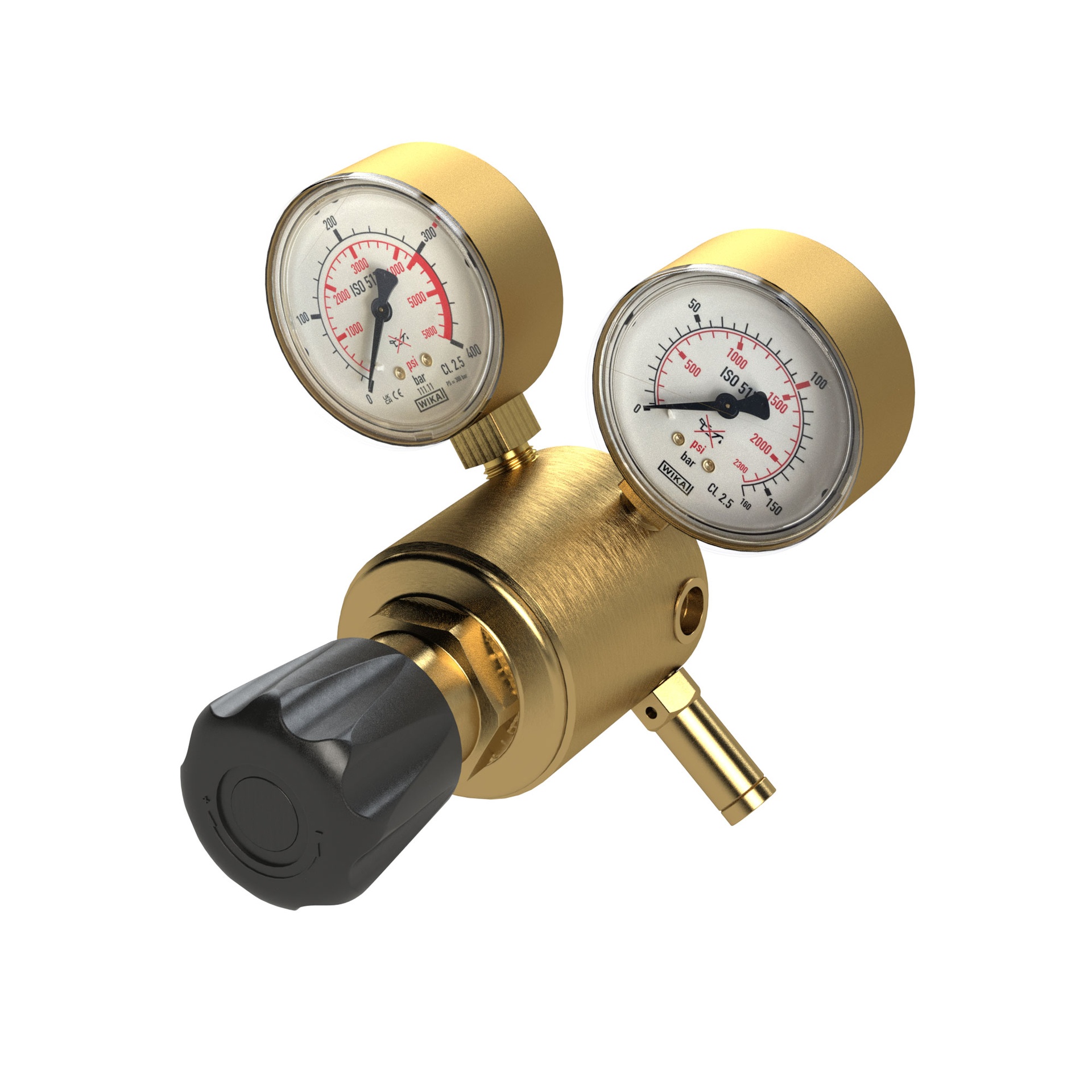

RIEGLER line pressure regulator 300 bar, incl. Mano, G 1/4 IG, 1 - 100 bar
Type number: DRL.G14.1-100
EAN: 4047322798914
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Coaxial valve, pneumatically operated, single-acting NC, MS vern. FKM, operating temp. -20 °C to 150 °C, control pressure 4.2 - 8 bar, Rp 1 1/2, DN 40
| Flow_1 | 5000 l/min |
| Flow rate | 5000 l/min at 100 bar |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Control range max. | 100 bar |
| Operating temperature min. | -20 °C |
| Control range min. | 1 bar |
| B | 146 mm |
| A | 148 mm |
| Max. operating pressure | 300 bar |
| Operating temperature max. | 60 °C |
| D | 69 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Class name | FLEX |
| Thread | G 1/4 FEMALE THREAD |
| Housing | Brass |
| Sealing material | NBR |
