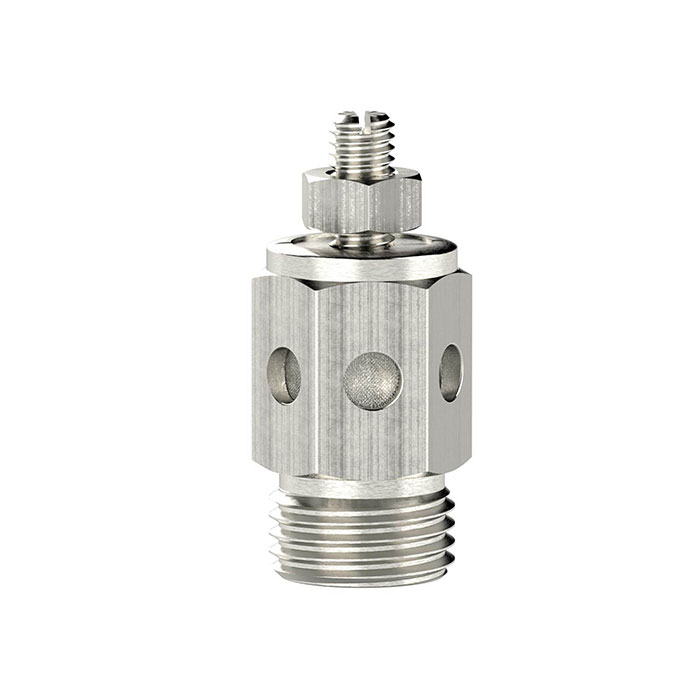

RIEGLER Silencer, stainless steel,sintered damper element,adjustable,G1/4
Typennummer: SD14ESEB
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Silencer made of stainless steel 1.4401, for noise protection, max. 20 bar - type SD14ESEB
The RIEGLER silencer, sintered silencer element, ES housing, once.bar, G1/4 significantly reduces the blow-off noise of pneumatic valves and cylinders. The housing is made of stainless steel 1.4401. Designed for a maximum operating pressure of 20 bar. The operating temperature is between -10 °C and 600 °C. G 1/4 connection thread - suitable for common industry standards. Significant noise reduction for better occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 20 bar |
| Material | Stainless steel 1.4401 |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 600 °C |
| Thread | G 1/4 |

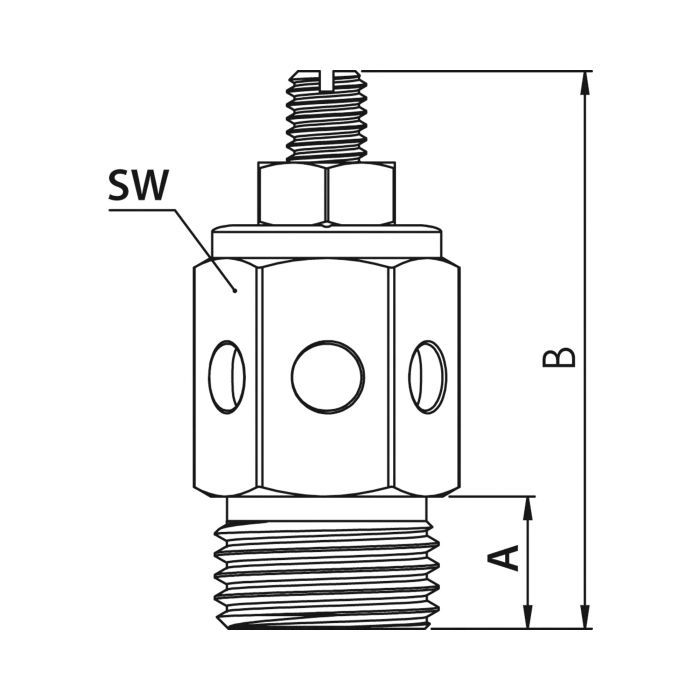

| SW | 14 mm |
| A | 8.5 mm |
| B | 35.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
