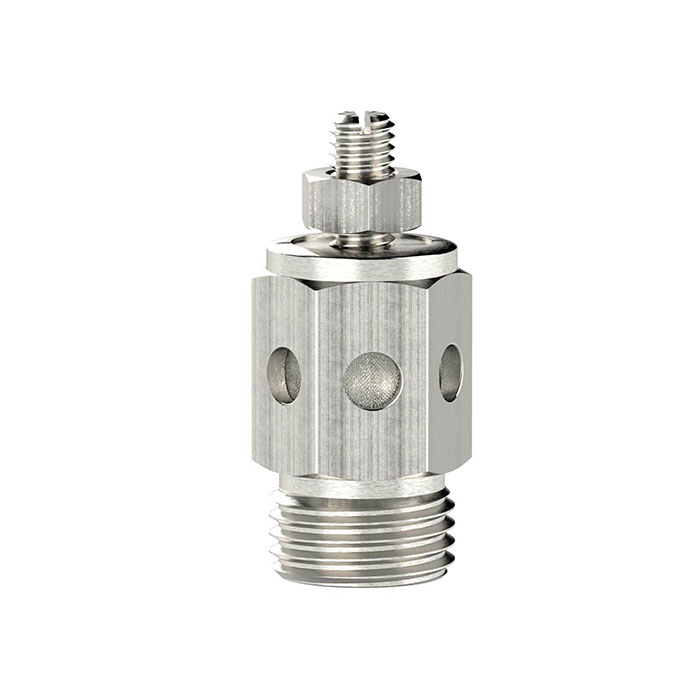

RIEGLER Silencer, stainless steel,sintered damper element,adjustable,G 1
Typennummer: SD1ESEB
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Silencer, sintered damper element, ES housing, adjustable, G 1, operating pressure 0 - 20 bar, operating temp. -10 °C to 600 °C
| Max. operating pressure | 20 bar |
| Material | Stainless steel 1.4401 |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 600 °C |
| Thread | G 1 |

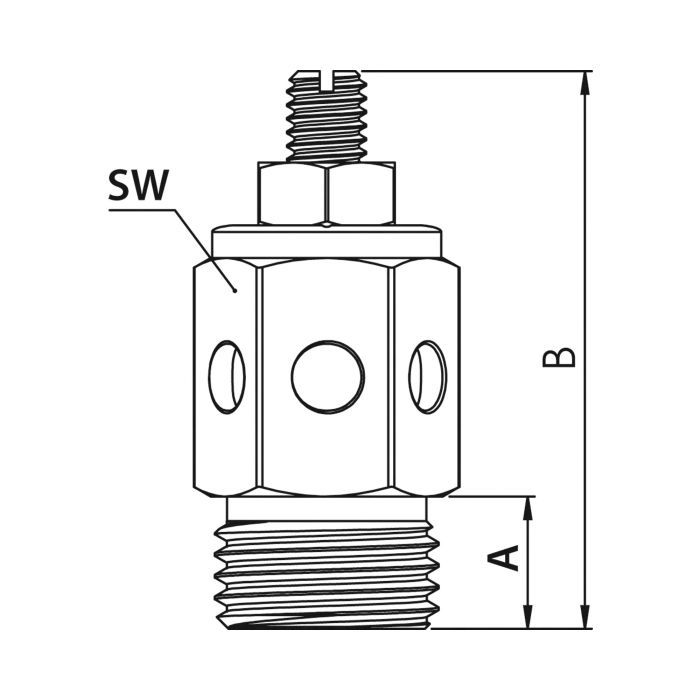

| SW | 34 mm |
| A | 15.5 mm |
| B | 51.5 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[156527] RIEGLER Silencer, stainless steel,sintered damper element,adjustable,G1/2](/web/image/product.template/213317/image_128/%5B156527%5D%20RIEGLER%20Silencer%2C%20stainless%20steel%2Csintered%20damper%20element%2Cadjustable%2CG1-2?unique=fbec9ae)
|
Typennummer: SD12ESEB |
39.50 € | |
![[156525] RIEGLER Silencer, stainless steel,sintered damper element,adjustable,G1/4](/web/image/product.template/213315/image_128/%5B156525%5D%20RIEGLER%20Silencer%2C%20stainless%20steel%2Csintered%20damper%20element%2Cadjustable%2CG1-4?unique=99c003b)
|
Typennummer: SD14ESEB |
23.07 € | |
![[156524] RIEGLER Silencer, stainless steel,sintered damper element,adjustable,G1/8](/web/image/product.template/213314/image_128/%5B156524%5D%20RIEGLER%20Silencer%2C%20stainless%20steel%2Csintered%20damper%20element%2Cadjustable%2CG1-8?unique=b3e473e)
|
Typennummer: SD18ESEB |
18.14 € | |
![[156528] RIEGLER Silencer, stainless steel,sintered damper element,adjustable,G3/4](/web/image/product.template/213318/image_128/%5B156528%5D%20RIEGLER%20Silencer%2C%20stainless%20steel%2Csintered%20damper%20element%2Cadjustable%2CG3-4?unique=708a9fe)
|
Typennummer: SD34ESEB |
45.32 € | |
![[156526] RIEGLER Silencer, stainless steel,sintered damper element,adjustable,G3/8](/web/image/product.template/213316/image_128/%5B156526%5D%20RIEGLER%20Silencer%2C%20stainless%20steel%2Csintered%20damper%20element%2Cadjustable%2CG3-8?unique=81304d8)
|
Typennummer: SD38ESEB |
29.69 € | |
