RIEGLER Silencer, stainless steel,sintered damper element,adjustable,G3/4
Typennummer: SD34ESEB
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

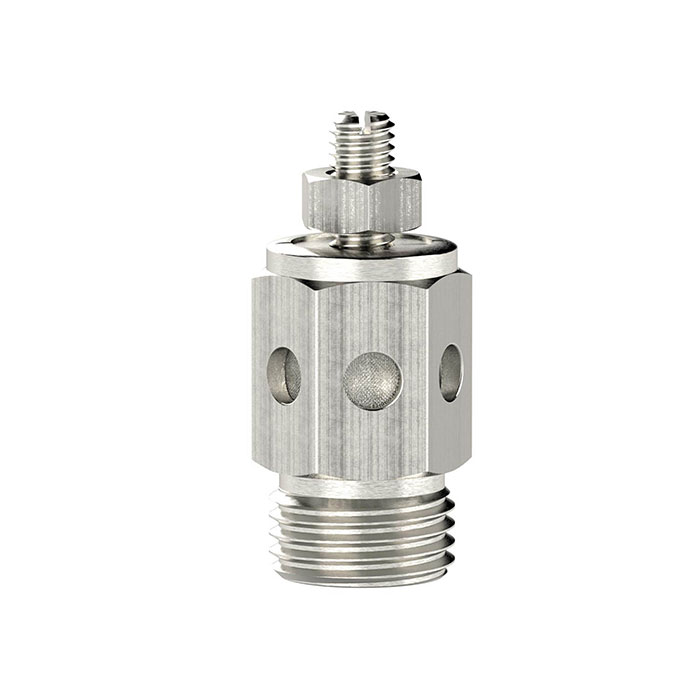

RIEGLER Silencer made of stainless steel 1.4401, for noise protection, max. 20 bar - Type SD34ESEB
The RIEGLER silencer, sintered silencer element, ES housing, once.bar, G3/4 significantly reduces the blow-off noise of pneumatic valves and cylinders. The housing is made of stainless steel 1.4401. Designed for a maximum operating pressure of 20 bar. The operating temperature is between -10 °C and 600 °C. Connection thread G 3/4 - suitable for common industry standards. Significant noise reduction for better occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 20 bar |
| Material | Stainless steel 1.4401 |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 600 °C |
| Thread | G 3/4 |

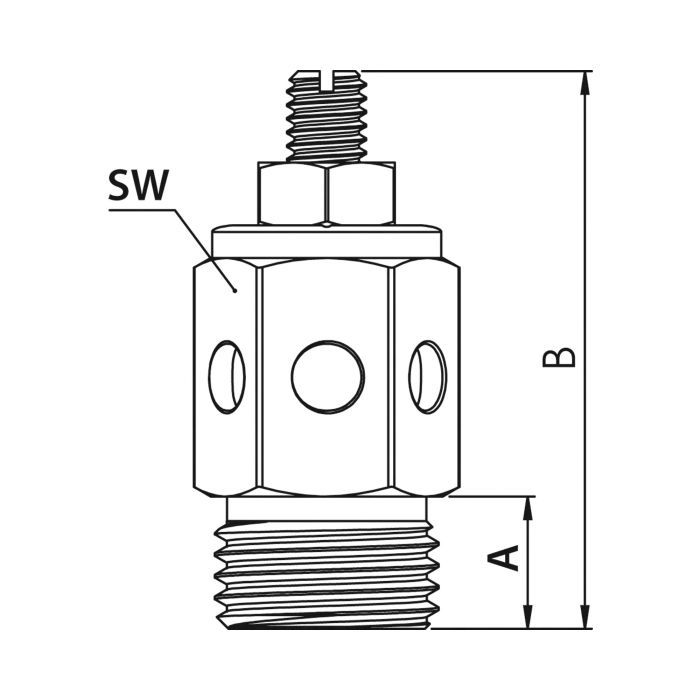

| SW | 27 mm |
| A | 13.5 mm |
| B | 49.5 mm |
| Class name | STAINLESS STEEL |
