RIEGLER Adjustable T screw fitting, Pipe ext. Ø 10, galvanised steel
Typennummer: ETAV10LST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

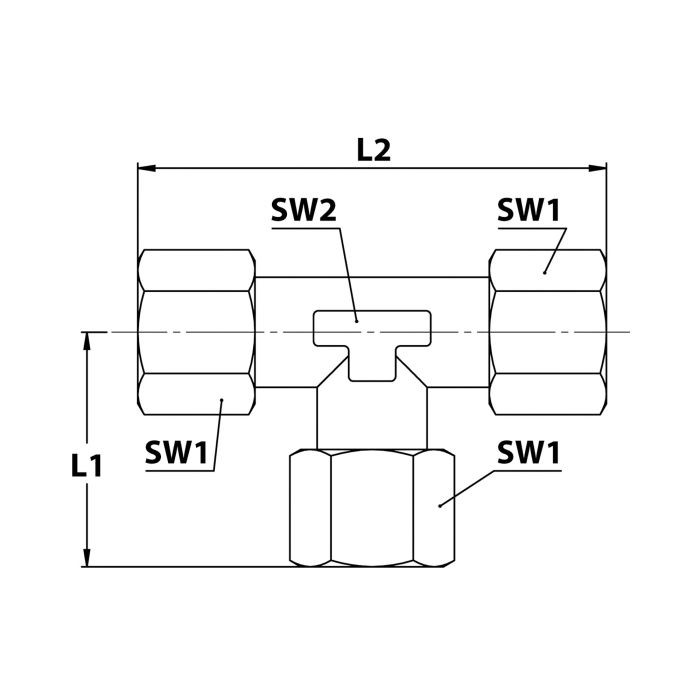

Inst. T-connection fitting, sealing cone, 360° rotatable, nut M16x1.5 i., pipe outer Ø 10 mm, PN max. 315 bar, galvanized steel
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 19 mm |
| SW 2 | 14 mm |
| Tube outer Ø | 10 mm |
| PN | 315 bar |
| Female nut thread | M16x1.5 |
| L1 | 60 mm |
| L2 | 29 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

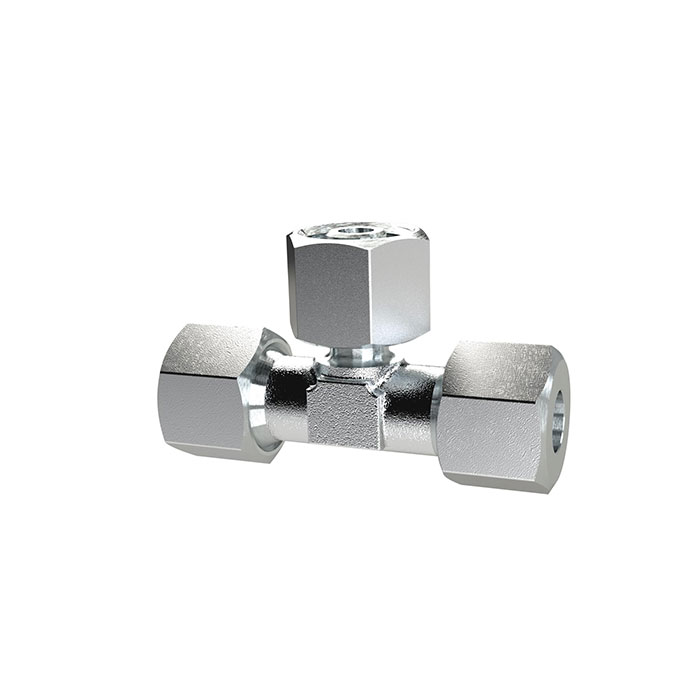

![[159018] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 12, galvanised steel](/web/image/product.template/214887/image_128/%5B159018%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%2012%2C%20galvanised%20steel?unique=fa9b815)
|
