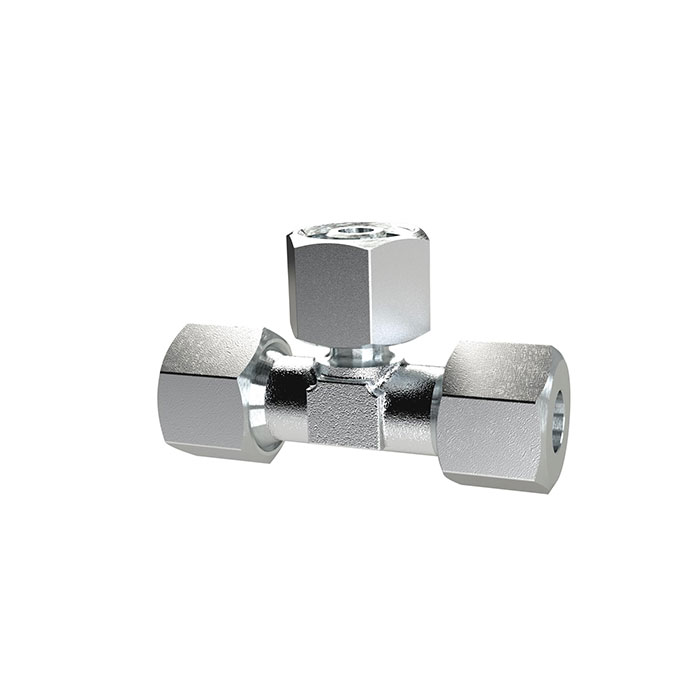

RIEGLER Adjustable T screw fitting, Pipe ext. Ø 22, galvanised steel
Typennummer: ETAV22LST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Inst. T-connection fitting, sealing cone, 360° rotatable, nut M30x2.0 i., outer pipe Ø 22 mm, PN max. 160 bar, galvanized steel

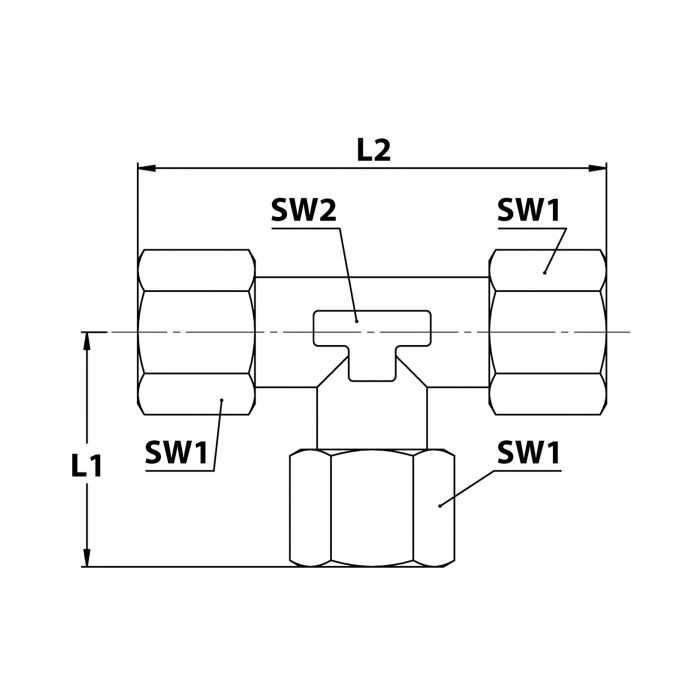

| Material | Galvanized steel (DIN 2353) |
| SW 1 | 36 mm |
| SW 2 | 27 mm |
| Tube outer Ø | 22 mm |
| PN | 160 bar |
| Female nut thread | M30x2.0 |
| L1 | 88 mm |
| L2 | 38.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[159017] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 10, galvanised steel](/web/image/product.template/214886/image_128/%5B159017%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%2010%2C%20galvanised%20steel?unique=0e0e9ac)
|
Typennummer: ETAV10LST |
9.70 € | |
![[159018] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 12, galvanised steel](/web/image/product.template/214887/image_128/%5B159018%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%2012%2C%20galvanised%20steel?unique=fa9b815)
|
Typennummer: ETAV12LST |
10.23 € | |
![[159019] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 15, galvanised steel](/web/image/product.template/214888/image_128/%5B159019%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%2015%2C%20galvanised%20steel?unique=0b39916)
|
Typennummer: ETAV15LST |
13.71 € | |
![[159020] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 18, galvanised steel](/web/image/product.template/214889/image_128/%5B159020%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%2018%2C%20galvanised%20steel?unique=6ae0d59)
|
Typennummer: ETAV18LST |
18.65 € | |
![[159022] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 28, galvanised steel](/web/image/product.template/214891/image_128/%5B159022%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%2028%2C%20galvanised%20steel?unique=7759c19)
|
Typennummer: ETAV28LST |
44.47 € | |
![[159015] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 6, galvanised steel](/web/image/product.template/214884/image_128/%5B159015%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%206%2C%20galvanised%20steel?unique=94eb4c3)
|
Typennummer: ETAV6LST |
8.04 € | |
![[159016] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 8, galvanised steel](/web/image/product.template/214885/image_128/%5B159016%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%208%2C%20galvanised%20steel?unique=1f502c7)
|
Typennummer: ETAV8LST |
8.43 € | |
