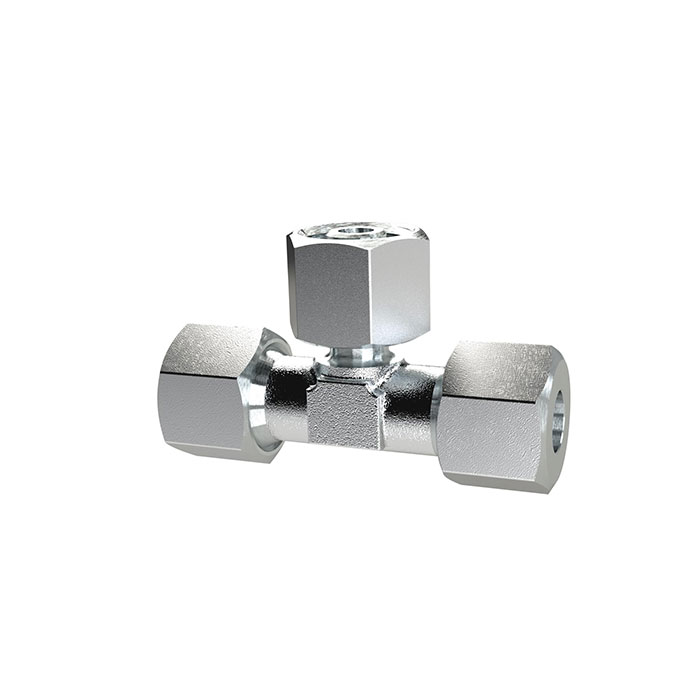

RIEGLER Adjustable T screw fitting, Pipe ext. Ø 28, galvanised steel
Typennummer: ETAV28LST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Inst. T-connection fitting, sealing cone, 360° rotatable, nut M36x2.0 i., pipe outer Ø 28 mm, PN max. 160 bar, galvanized steel

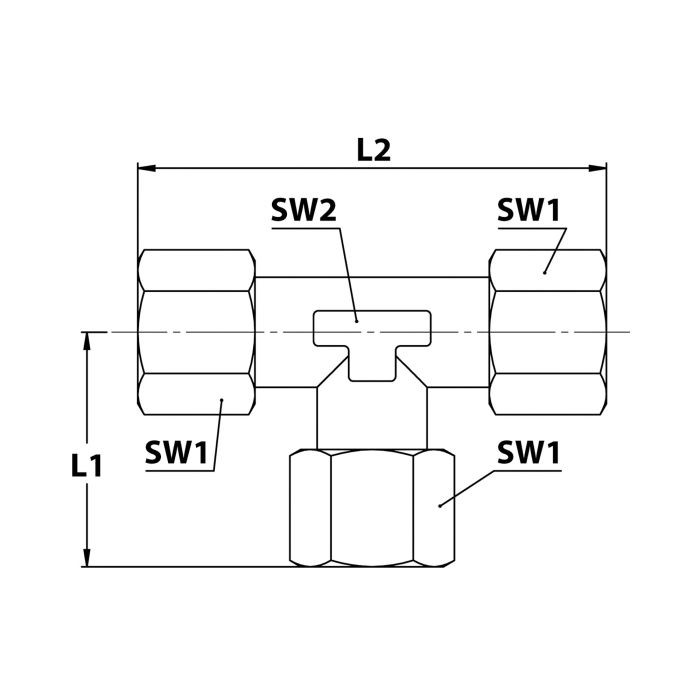

| Material | Galvanized steel (DIN 2353) |
| SW 1 | 41 mm |
| SW 2 | 36 mm |
| Tube outer Ø | 28 mm |
| PN | 160 bar |
| Female nut thread | M36x2.0 |
| L1 | 94 mm |
| L2 | 41.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
