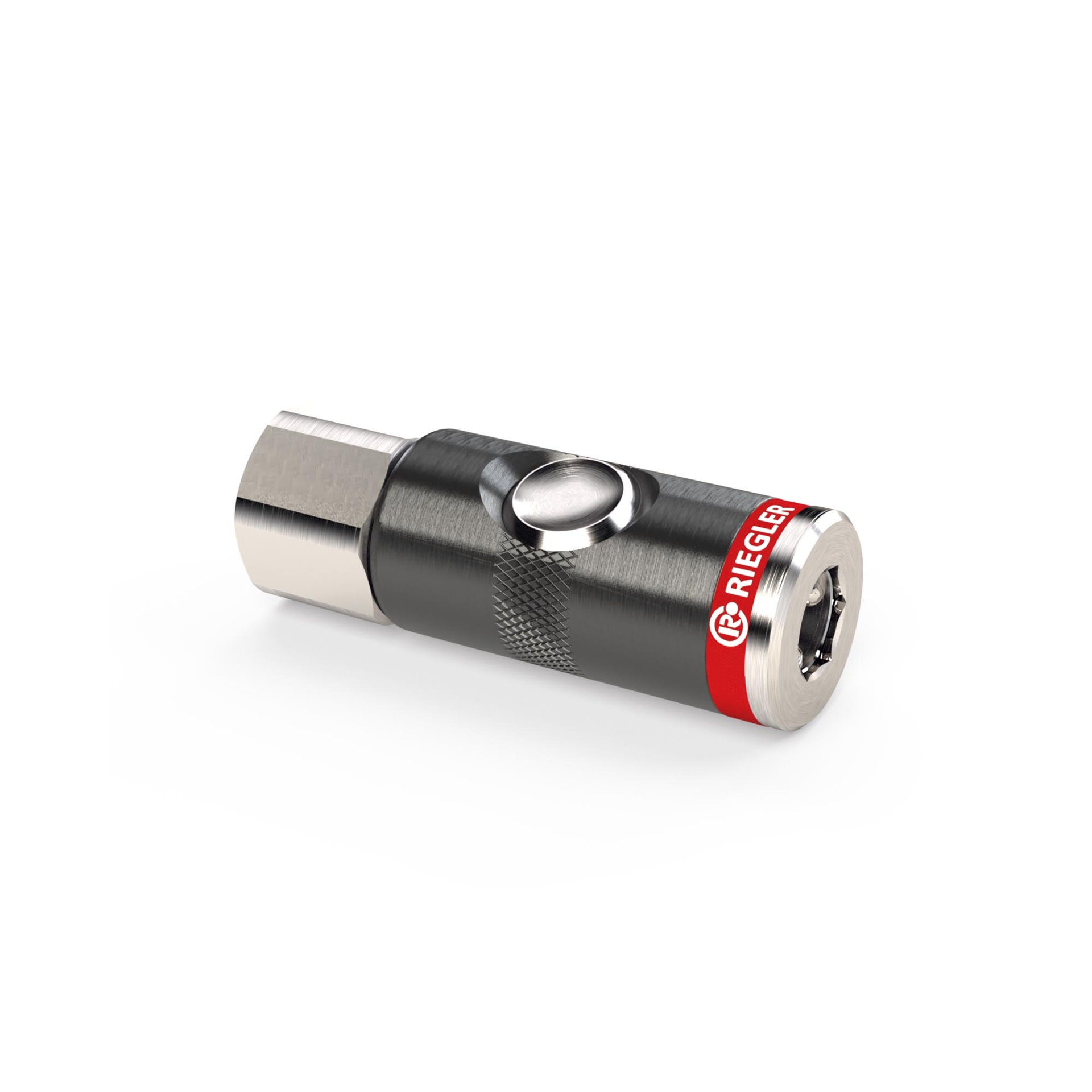

RIEGLER Pushbutton safety coupling I.D. 7.4, G 3/8 IT
Typennummer: DKSKIG38
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Push-button safety coupling made of aluminium, anodized, for compressed air supply - type DKSKIG38
The RIEGLER push-button safety coupling NW 7.4, G3/8IG disconnects the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of anodized aluminium with NBR seals. Designed for a maximum operating pressure of 12 bar. The permissible medium temperature is between -20 °C and 70 °C. Connection thread G 3/8 IG - suitable for common industry standards. The flow rate is 1600 l/min (air) (at 6 bar and Δp = 1 bar). Maximum safety thanks to controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Housing | Aluminum, anodized |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 12 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 70 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 70 °C |
| Flow rate | 1600 l/min (air) |
| Interior parts | Stainless steel 1.4301 |
| Threaded piece | Nickel-plated brass |
| Valve | Hardened and galvanized steel |
| Button | Hardened and galvanized steel |
| SW | 21 mm |
| NW | 7.4 |
| Length | 72.3 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/8 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, AL2011 |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[199981] RIEGLER Push-button safety coupling NW 7,4, G1/2IG](/web/image/product.template/267905/image_128/%5B199981%5D%20RIEGLER%20Push-button%20safety%20coupling%20NW%207%2C4%2C%20G1-2IG?unique=a663083)
|
Typennummer: DKSKIG12 |
19.10 € | |

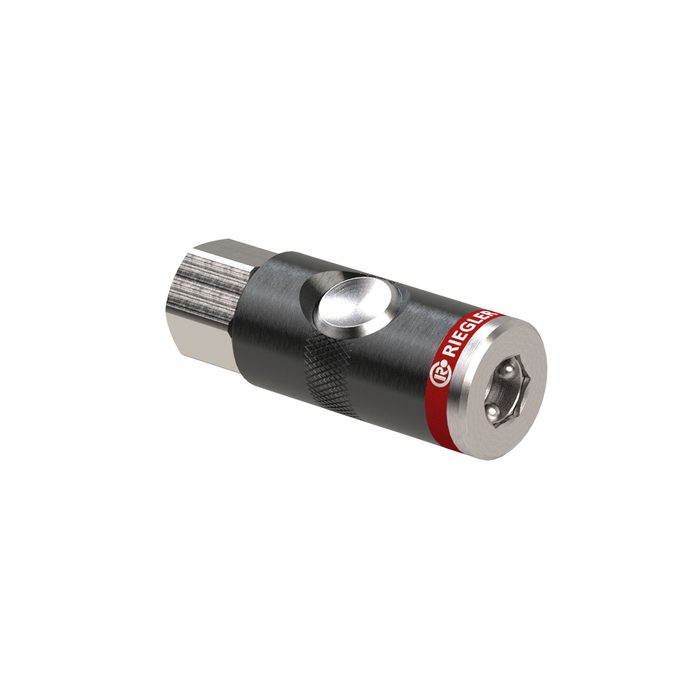

![[199979] RIEGLER Push-button safety coupling NW 7,4, G1/4IG](/web/image/product.template/267896/image_128/%5B199979%5D%20RIEGLER%20Push-button%20safety%20coupling%20NW%207%2C4%2C%20G1-4IG?unique=ff36998)
|
