BEKO Active Oil-water separator QWIK-PURE 30 (with 3 meter power cable)
BEKO QWIK-PURE 30 - Active condensate treatment up to 30 m³/min with dual cartridge system. Maximum efficiency thanks to intelligent compressed air support and easy installation thanks to factory-fitted 3-meter power cable.
- Performance: Designed for compressors up to 30 m³/min.
- Connection: Includes 3-meter power cable for flexible placement.
- Technology: Active reprocessing prevents bacteria formation and clogging.
- Hygiene: Hermetically sealed cartridges for clean replacement.
- Certified: Legally compliant thanks to DIBt approval (max. 10 mg/l).
For over thirty years, BEKO TECHNOLOGIES has been synonymous with powerful compressed air and compressed gas technology, tested worldwide. We represent quality "made in Germany" and values that are lived by BEKO TECHNOLOGIES
BEKO QWIK-PURE 30: Active condensate treatment with maximum flexibility
The BEKO oil-water separator model QWIK-PURE 30 with 3-meter power cable (item no. 4055900) redefines efficiency in larger compressed air stations. While conventional separators work purely passively, the QWIK-PURE 30 uses light blasts of compressed air to actively guide the condensate through the two filter cartridges. The integrated 3-meter power cable ensures uncomplicated commissioning and allows flexible installation in your station.
The system is the ideal choice for demanding industrial applications: With its capacity of 30 m³/min, it offers maximum safety for your compressed air treatment.
Your benefits with the active QWIK-PURE 30:
- Active mode of operation: The condensate is pressed through the filters in a controlled manner. This effectively suppresses the formation of impermeable boundary layers and bacterial cultures, even at high throughput rates.
- Hygienic & safe: The hermetically sealed cartridges protect personnel from contamination. Free oils are bound directly inside, making open oil containers a thing of the past.
- Dual cartridge system: The load is optimally distributed across two units, which maximizes service life and significantly increases process reliability.
- Flexible connection: The factory-fitted 3-meter power cable allows simple electrical connection without complex additional installations.
- Ergonomic handling: Despite being fully saturated, each cartridge weighs a maximum of 25 kg. The inlet tube serves as a sturdy handle for convenient replacement.
- Certified legal certainty: The DIBt approval confirms reliable compliance with the legal discharge values (max. 10 mg/l residual oil content).
Maintenance & service for QWIK-PURE 30:
- No pre-soaking: The standard cartridges are ready for immediate use - there is no need for time-consuming pre-soaking.
- Maintenance without downtime: Inflowing condensate is buffered in the large pressure relief chamber during the cartridge change.
- Clean change: The integrated bottom valve closes automatically when removed. The cartridges are securely sealed for removal with the blind plugs supplied.
- Sustainability: The filter material of both cartridges is fully utilized thanks to the active flow. This leads to longer service lives with an optimized environmental balance.
| Max. Condensate flow rate (l/h) | 38 |
| Min/max. temperature (°C) | +5 ... +50 |
| Relative humidity of the environment | ≤10 ... 80 %, without condensation |
| Weight (kg) | 31 |
| Min. / max. operating pressure (bar) | 3 ... 15 |
| Cleanliness class, compressed air | 2:4:2 |
| Operating voltage | 90 ... 264 VAC / 24 VDC |
| Frequency range (Hz) | 50 ... 60 |
| Max. Compressor capacity (m³/min) | 30,9 |
| Operating mode | active |
| Condensate inlet connection | 3 x G1/2", external | 1 x G1", external | Hose nozzle |
| Condensate drain connection | 1 x 23 mm (0.91 in), external, hose nozzle |
| Media | Compressor condensate, containing oil |
| Max. Oil concentration at | 10 |
| Max. Operating pressure at condensate inlet | 16 |
| Required number of replacement cartridges | 2 |
| Compressed air connection | 8 mm (0.31 in), external, hose nozzle |
| Power consumption (VA) | 28 |
| Protection class (IP) | 54 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

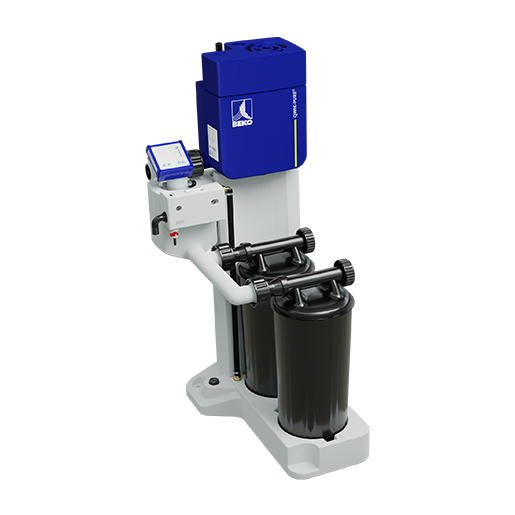

![[4058161] BEKO Active Oil-water separator QWIK-PURE 30 (with M12 plug)](/web/image/product.template/236902/image_128/%5B4058161%5D%20BEKO%20Active%20Oil-water%20separator%20QWIK-PURE%2030%20%28with%20M12%20plug%29?unique=e146847)
|
BEKO QWIK-PURE 30 (M12) - Active condensate treatment up to 30 m³/min with dual cartridge system. Maximum process reliability and predictive maintenance planning thanks to intelligent connection to external control systems.
|
2,787.81 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

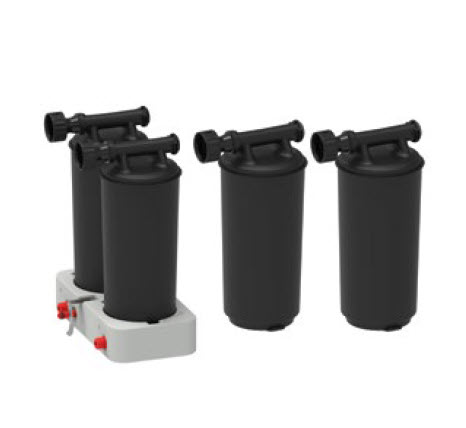

![[4058557] BEKO Upgrade Kit QWIK-PURE® 30 to 60](/web/image/product.template/237458/image_128/%5B4058557%5D%20BEKO%20Upgrade%20Kit%20QWIK-PURE%C2%AE%2030%20to%2060?unique=37bf459)
|
Maximize your capacity with the BEKO upgrade kit from QWIK-PURE 30 to 60. This modular upgrade kit doubles the capacity of your existing system to 60 m³/min by simply plugging in the add-on unit.
|
1,832.60 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[4051809] BEKO QWIK-PURE cartridge](/web/image/product.template/236908/image_128/%5B4051809%5D%20BEKO%20QWIK-PURE%20cartridge?unique=a2bcb1b)
|
Original BEKO QWIK-PURE unit cartridge - The intelligent replacement solution for the entire QWIK-PURE model range. Enables a clean, tool-free filter change in seconds without direct contact with the condensate.
|
282.74 € | |
