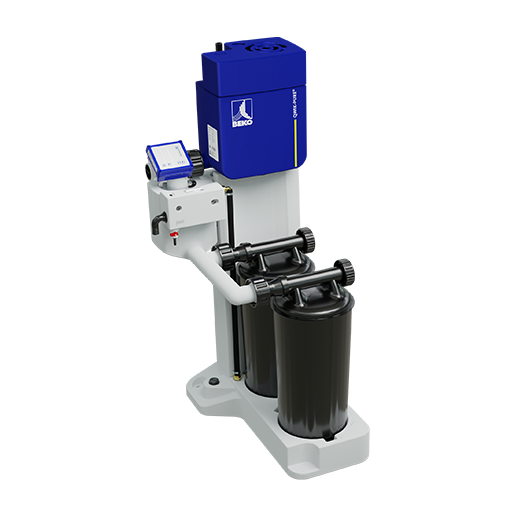

BEKO Active Oil-water separator QWIK-PURE 30 (with M12 plug)
BEKO QWIK-PURE 30 (M12) - Active condensate treatment up to 30 m³/min with dual cartridge system. Maximum process reliability and predictive maintenance planning thanks to intelligent connection to external control systems.
- Performance: Designed for compressors up to 30 m³/min.
- Intelligence: Integrated M12 connector for capacity monitoring.
- Technology: Active flow against bacteria formation and clogging.
- Hygiene: Hermetically sealed cartridges for clean replacement.
- Legally safe: DIBt-certified for safe discharge (max. 10 mg/l).
For over thirty years, BEKO TECHNOLOGIES has been synonymous with powerful compressed air and compressed gas technology, tested worldwide. We represent quality "made in Germany" and values that are lived by BEKO TECHNOLOGIES
BEKO QWIK-PURE 30: Active conditioning with M12 plug
The BEKO oil-water separator model QWIK-PURE 30 with M12 connector (item no. 4055899) represents the state of the art in condensate treatment. In contrast to passive systems, this separator uses light blasts of compressed air to actively guide the condensate through the two filter cartridges. The integrated M12 connector allows communication with an FRC controller, which means that the remaining capacity of the filters can be precisely monitored at all times.
This system is the ideal solution for companies that do not want to compromise on operational safety and want to be able to plan service calls.
Your benefits with the active QWIK-PURE 30:
- Active mode of operation: The condensate is pressed through the filters in a controlled manner. This effectively suppresses the formation of impermeable boundary layers and bacterial cultures, even at high flow rates.
- Intelligent connection: The status is transmitted to the control unit via the M12 connector. This enables needs-based maintenance instead of fixed intervals.
- Hygienic & safe: The hermetically sealed cartridges protect personnel from direct contact with harmful substances. Free oils are safely bound inside.
- Dual cartridge system: The load distribution over two units maximizes the filter service life and ensures constant cleaning performance.
- Future-proof: As demand grows, the system can be expanded modularly to 60 or 90 m³/min by simply plugging in additional units.
- Certified legal certainty: The DIBt approval guarantees compliance with the legal discharge values (max. 10 mg/l residual oil content).
Maintenance & service for QWIK-PURE 30:
- No pre-soaking: The standard cartridges are ready for immediate use - there is no need for time-consuming pre-soaking.
- Maintenance without downtime: Inflowing condensate is buffered in the pressure relief chamber during the changeover so that your compressed air station continues to run without interruption.
- Clean change: The integrated bottom valve closes automatically when removed. The cartridge is securely sealed for removal with the blind plugs supplied.
- Ergonomic handling: Each saturated cartridge weighs a maximum of 25 kg and can be easily replaced using the inlet tube as a sturdy handle.
| Max. Condensate flow rate (l/h) | 38 |
| Min/max. temperature (°C) | +5 ... +50 |
| Relative humidity of the environment | ≤10 ... 80 %, without condensation |
| Weight (kg) | 31 |
| Min. / max. operating pressure (bar) | 3 ... 15 |
| Cleanliness class, compressed air | 2:4:2 |
| Operating voltage | 90 ... 264 VAC / 24 VDC |
| Frequency range (Hz) | 50 ... 60 |
| Max. Compressor capacity (m³/min) | 30,9 |
| Operating mode | active |
| Condensate inlet connection | 3 x G1/2", external | 1 x G1", external | Hose nozzle |
| Condensate drain connection | 1 x 23 mm (0.91 in), external, hose nozzle |
| Media | Compressor condensate, containing oil |
| Max. Oil concentration at | 10 |
| Max. Operating pressure at condensate inlet | 16 |
| Required number of replacement cartridges | 2 |
| Compressed air connection | 8 mm (0.31 in), external, hose nozzle |
| Power consumption (VA) | 28 |
| Protection class (IP) | 54 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[4055895] BEKO Active Oil-water separator QWIK-PURE 30 (with 3 meter power cable)](/web/image/product.template/236901/image_128/%5B4055895%5D%20BEKO%20Active%20Oil-water%20separator%20QWIK-PURE%2030%20%28with%203%20meter%20power%20cable%29?unique=b5da36a)
|
BEKO QWIK-PURE 30 - Active condensate treatment up to 30 m³/min with dual cartridge system. Maximum efficiency thanks to intelligent compressed air support and easy installation thanks to factory-fitted 3-meter power cable.
|
2,812.45 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

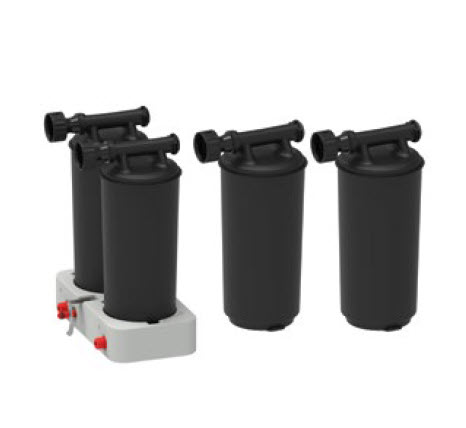

![[4058557] BEKO Upgrade Kit QWIK-PURE® 30 to 60](/web/image/product.template/237458/image_128/%5B4058557%5D%20BEKO%20Upgrade%20Kit%20QWIK-PURE%C2%AE%2030%20to%2060?unique=37bf459)
|
