RIEGLER Pressure reducing valve, G 1/4 i. / o., Set pressure 3 bar
Type number: 637.03
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure reducing valve made of brass, for compressed air preparation - Type 637.03
The RIEGLER pressure reducing valve, G 1/4 inside/outside, set pressure 3.0 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of brass. The maximum inlet pressure is 15 bar. The flow rate is 360 l/min. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 15 bar |
| Housing | Brass |
| Connection thread | G 1/4 inside / outside |
| Flow rate | 360 l/min |
| Set pressure | 3 bar |
| SW | 17 mm |
| A | 34 mm |
| B | 9 mm |
| C Ø | 17 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101509] RIEGLER Pressure reducing valve, G 1/4 i. / o., Set pressure 2 bar](/web/image/product.template/169483/image_128/%5B101509%5D%20RIEGLER%20Pressure%20reducing%20valve%2C%20G%201-4%20i.%20-%20o.%2C%20Set%20pressure%202%20bar?unique=5463a87)
|
Type number: 637.02 |
10.85 € | |
![[101511] RIEGLER Pressure reducing valve, G 1/4 i. / o., Set pressure 4 bar](/web/image/product.template/169485/image_128/%5B101511%5D%20RIEGLER%20Pressure%20reducing%20valve%2C%20G%201-4%20i.%20-%20o.%2C%20Set%20pressure%204%20bar?unique=1859f76)
|
Type number: 637.04 |
10.53 € | |
![[101512] RIEGLER Pressure reducing valve, G 1/4 i. / o., Set pressure 5 bar](/web/image/product.template/169486/image_128/%5B101512%5D%20RIEGLER%20Pressure%20reducing%20valve%2C%20G%201-4%20i.%20-%20o.%2C%20Set%20pressure%205%20bar?unique=6b173d4)
|
Type number: 637.05 |
10.53 € | |

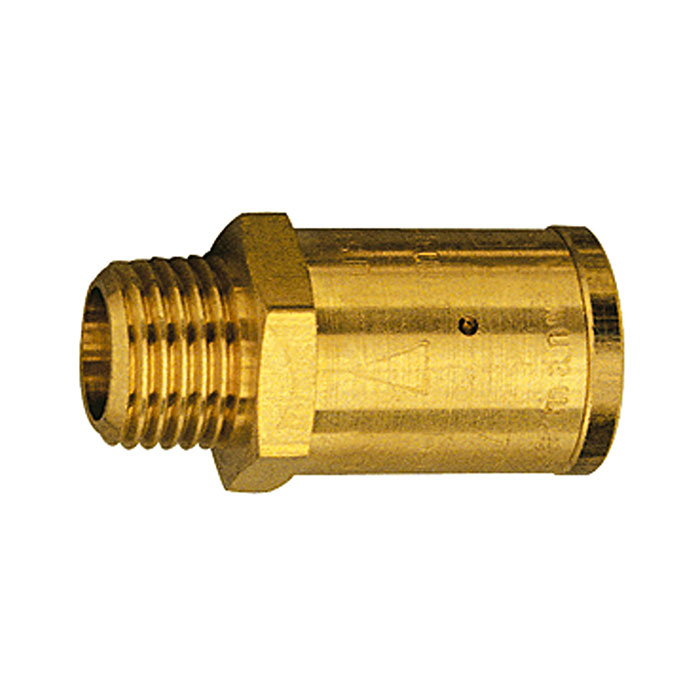

![[101513] RIEGLER Pressure reducing valve, G 1/4 i. / o., Set pressure 6 bar](/web/image/product.template/169487/image_128/%5B101513%5D%20RIEGLER%20Pressure%20reducing%20valve%2C%20G%201-4%20i.%20-%20o.%2C%20Set%20pressure%206%20bar?unique=50d8bbe)
|
