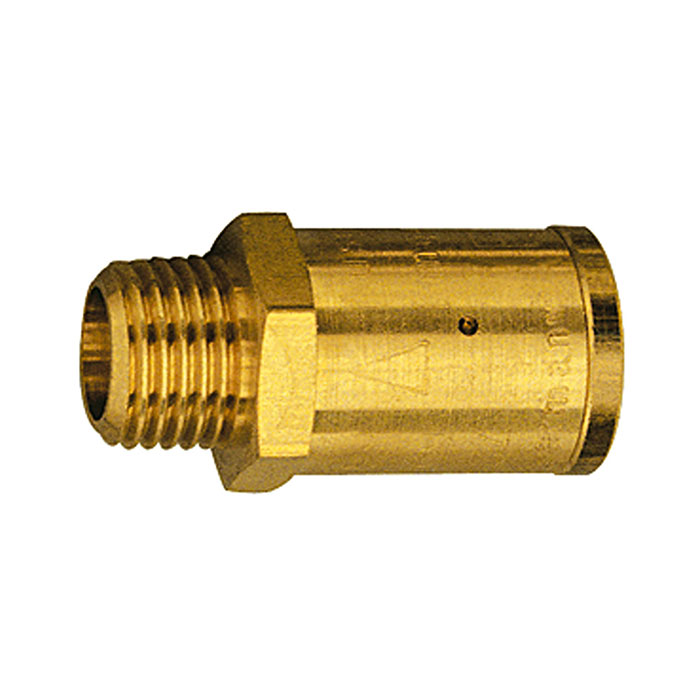

RIEGLER Pressure reducing valve, G 1/4 i. / o., Set pressure 5 bar
Type number: 637.05
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure reducing valve made of brass, for compressed air preparation - Type 637.05
The RIEGLER pressure reducing valve, G 1/4 inside/outside, set pressure 5.0 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of brass. The maximum inlet pressure is 15 bar. The flow rate is 390 l/min. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 15 bar |
| Housing | Brass |
| Connection thread | G 1/4 inside / outside |
| Flow rate | 390 l/min |
| Set pressure | 5 bar |
| SW | 17 mm |
| A | 34 mm |
| B | 9 mm |
| C Ø | 17 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
