RIEGLER Pressure reducing valve, G 1/4 i. / o., Set pressure 2 bar
Type number: 637.02
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Pressure reducing valve, G 1/4 inside/outside, SW 17, set pressure 2.0 bar, inlet pressure max. 15 bar, material: brass
| Inlet pressure max. | 15 bar |
| Housing | Brass |
| Connection thread | G 1/4 inside / outside |
| Flow rate | 300 l/min |
| Set pressure | 2 bar |
| SW | 17 mm |
| A | 34 mm |
| B | 9 mm |
| C Ø | 17 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101510] RIEGLER Pressure reducing valve, G 1/4 i. / o., Set pressure 3 bar](/web/image/product.template/169484/image_128/%5B101510%5D%20RIEGLER%20Pressure%20reducing%20valve%2C%20G%201-4%20i.%20-%20o.%2C%20Set%20pressure%203%20bar?unique=54f0dda)
|
Type number: 637.03 |
10.53 € | |
![[101511] RIEGLER Pressure reducing valve, G 1/4 i. / o., Set pressure 4 bar](/web/image/product.template/169485/image_128/%5B101511%5D%20RIEGLER%20Pressure%20reducing%20valve%2C%20G%201-4%20i.%20-%20o.%2C%20Set%20pressure%204%20bar?unique=4019317)
|
Type number: 637.04 |
10.53 € | |
![[101512] RIEGLER Pressure reducing valve, G 1/4 i. / o., Set pressure 5 bar](/web/image/product.template/169486/image_128/%5B101512%5D%20RIEGLER%20Pressure%20reducing%20valve%2C%20G%201-4%20i.%20-%20o.%2C%20Set%20pressure%205%20bar?unique=8595fbf)
|
Type number: 637.05 |
10.53 € | |
![[101513] RIEGLER Pressure reducing valve, G 1/4 i. / o., Set pressure 6 bar](/web/image/product.template/169487/image_128/%5B101513%5D%20RIEGLER%20Pressure%20reducing%20valve%2C%20G%201-4%20i.%20-%20o.%2C%20Set%20pressure%206%20bar?unique=13f54b3)
|
Type number: 637.06 |
10.53 € | |

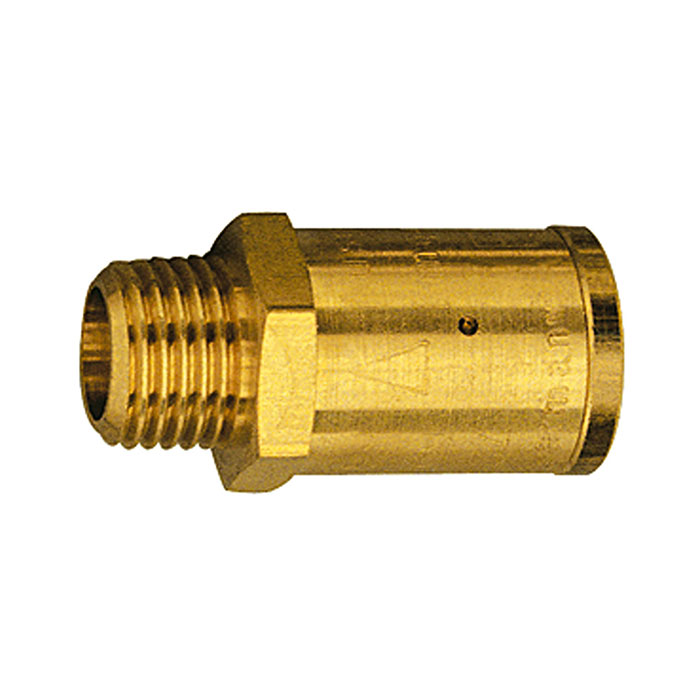

![[101514] RIEGLER Pressure reducing valve, G 1/4 i. / o., Set pressure 7 bar](/web/image/product.template/169488/image_128/%5B101514%5D%20RIEGLER%20Pressure%20reducing%20valve%2C%20G%201-4%20i.%20-%20o.%2C%20Set%20pressure%207%20bar?unique=aa3c188)
|
Type number: 637.07 |
14.32 € | |
![[101515] RIEGLER Pressure reducing valve, G 1/4 i. / o., Set pressure 8 bar](/web/image/product.template/169489/image_128/%5B101515%5D%20RIEGLER%20Pressure%20reducing%20valve%2C%20G%201-4%20i.%20-%20o.%2C%20Set%20pressure%208%20bar?unique=0275389)
|
Type number: 637.08 |
15.29 € | |
