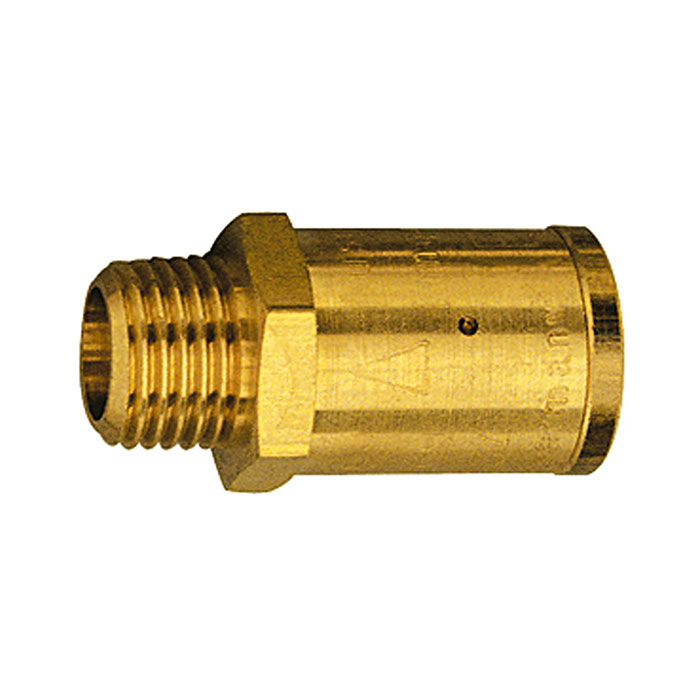

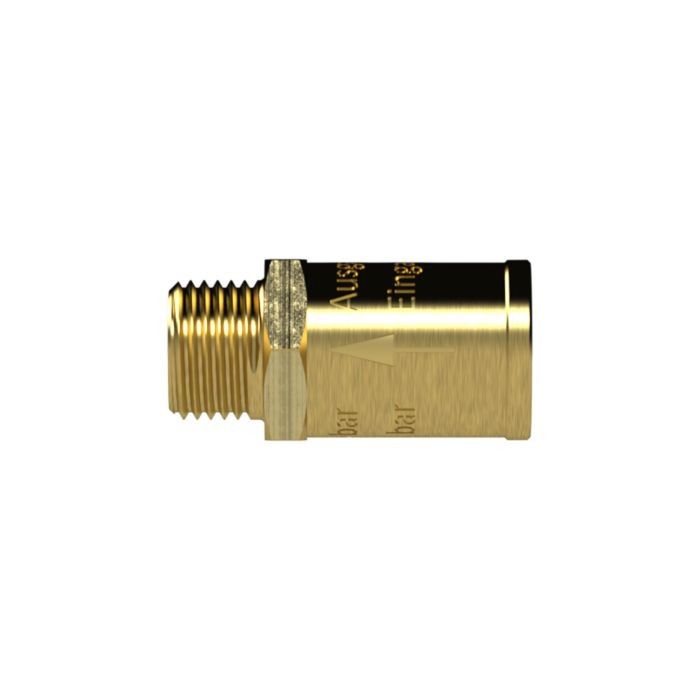

RIEGLER Pressure reducing valve, G 1/4 i. / o., Set pressure 7 bar
Type number: 637.07
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure reducing valve, G 1/4 interior / exterior, AF 17, Set pressure 7 bar, Input pressure max. 15 bar, Material: Brass
| Inlet pressure max. | 15 bar |
| Housing | Brass |
| Connection thread | G 1/4 inside / outside |
| Flow rate | 415 l/min |
| Set pressure | 7 bar |

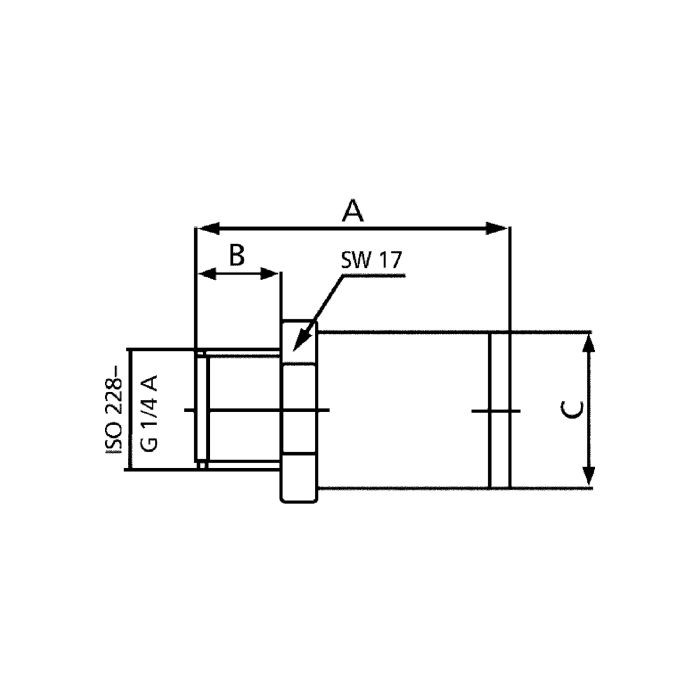

| SW | 17 mm |
| A | 34 mm |
| B | 9 mm |
| C Ø | 17 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
