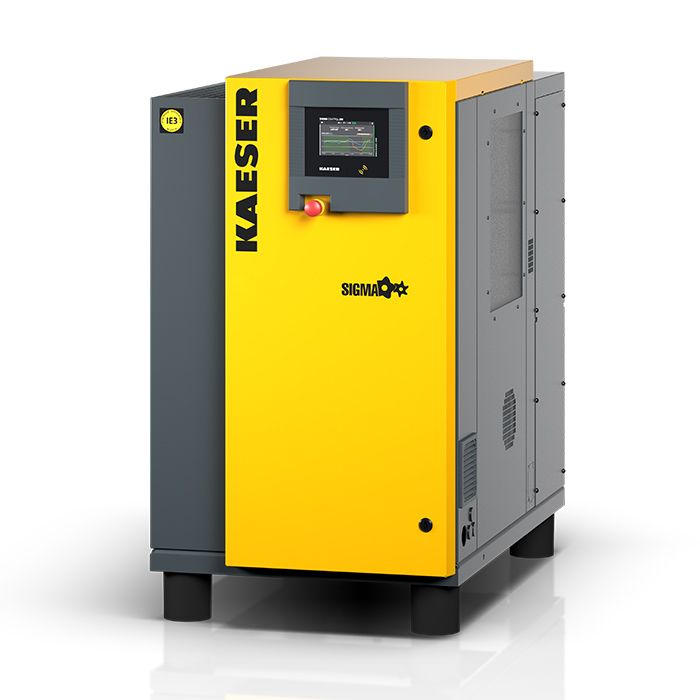

KAESER SM 13-11 T SC3 screw compressor
Screw compressor with integrated refrigerated dryer and SIGMA PROFILE. 1.08 m³/min | max. 11 bar | 7.5 kW | SIGMA CONTROL 3 M | IE4
KAESER SM 13-11 T SC3: Screw compressor with refrigeration dryer, max. 11 bar
The KAESER The SM 13-11 T SC3 is an industrial oil-lubricated screw compressor with an integrated refrigeration dryer, 7.5 kW drive power (IE4), and a flow rate of 1.08 m³/min at a maximum operating pressure of 11 bar. The refrigeration dryer uses the refrigerant R-513A and produces a pressure dew point of +3 °C—ensuring that dry, condensate-free compressed air is reliably delivered to the consumer.

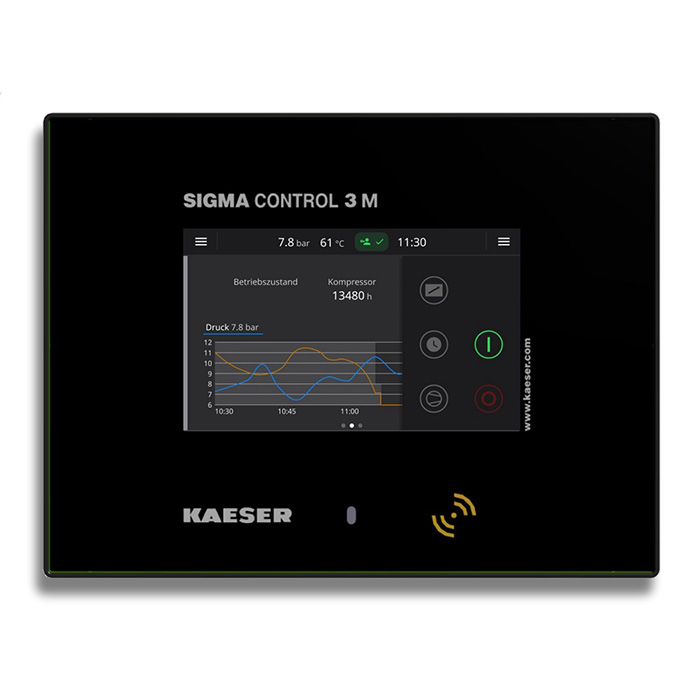

The highly efficient compressor block with SIGMA PROFIL and the IE4 motor ensures economical operation at a sound pressure level of just 65 dB(A). The SIGMA CONTROL 3 M touchscreen control system monitors the compressor and refrigeration dryer via the color display. The robust design is engineered for continuous industrial operation. The highly energy-efficient IE4 drive motor significantly reduces power consumption compared to the IE3 class.
Its compact dimensions of 630 × 1090 × 1100 mm (W × D × H), combined with a weight of 315 kg and a G 3/4 compressed air connection, make installation easy. The maintenance-friendly design, with easily accessible service components, reduces operating costs over the entire service life.
Recommended Applications: Designed for manufacturing facilities with continuous compressed air demand and requirements for dry compressed air—such as in plastics processing, assembly or packaging technology.
Accessories & Documentation: You can find compatible compressed air filters, oil-water separators, and compressed air tanks in the Accessories section. All technical specifications, data sheets, and operating instructions are available for download in the respective tabs.
Note: The built-in refrigerant dryer contains a fluorinated greenhouse gas. Refrigerant R-513A (GWP 631).
| Max. Overpressure (bar) | 11 |
| Volume flow at overpressure (m³/min) | 1,08 |
| Rated power drive motor (kW) | 7,5 |
| Drive motor efficiency class | IE4 |
| Permissible pressure loss cooling channel (Pa) | 30 |
| Max. usable warm air volume (m³/h) | 2100 |
| Max. usable heat output "warm air" (kW) | 9,1 |
| Max. usable heat output "warm water" (kW) | 6,2 |
| Required supply air opening (m2) | 0,3 |
| Drive motor protection class | IP55 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 19 A |
| Fuse: Max current | 25 A |
| Cooling fluid filling quantity (litres) | 4 |
| Width (mm) | 630 |
| Depth (mm) | 1090 |
| Height (mm) | 1100 |
| Weight (kg) | 315 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 65 |
| Refrigeration dryer power consumption (kW) | 0,49 |
| Refrigeration dryer pressure dew point (°C) | 3 |
| Refrigeration dryer pressure loss (bar) | 0,10 |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,39 |
| CO2 equivalent (tonnes) | 0,25 |
| Global warming potential GWP | 631 |
| Model range - Screw compressors | SM | 5.5 - 9 kW | Industry |
| Volume flow at overpressure (m³/min) | 1,09 |
| Max. Overpressure (bar) | 11 |
| Rated power drive motor (kW) | 7,5 |
| Electrical supply | 400V / 3 / 50Hz |
| Drive motor protection class | IP 55 |
| Sound pressure level (dbA) | 65 |
| Max. usable warm air volume (m³/h) | 2100 |
| Compressed air connection | G 3/4 |
| Cooling fluid filling quantity (litres) | 4 |
| Width (mm) | 630 |
| Depth (mm) | 1090 |
| Height (mm) | 1100 |
| Weight (kg) | 315 |
| Full load current | 19 A |
| Fuse: Max current | 25 A |
| Refrigeration dryer pressure loss (bar) | 0,10 |
| Refrigeration dryer pressure dew point (°C) | 3 |
| Refrigerant charge (kg) | 513 |
| Global warming potential GWP | 629 |
| CO2 equivalent (tonnes) | 0,25 |
| Drive Motor Efficiency (%) | 4 |
| Drive Motor Speed (rpm) | 2955 |
| Electrical Power Consumption (kW) | 9,8 |
| Coolant Type | SIGMA FLUID MOL |
| Ambient Temperature (Max./Min.) | 45 °C / 3 °C |
