KAESER SM 16-8 T SC3 screw compressor
Screw compressor with integrated refrigeration dryer and SIGMA PROFILE. 1.61 m³/min | max. 8 bar | 9.0 kW | SIGMA CONTROL 3 M | IE3
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
KAESER SM 16-8 T SC3: Screw compressor with refrigeration dryer, max. 8 bar
The KAESER The SM 16-8 T SC3 is an industrial oil-lubricated screw compressor with an integrated refrigeration dryer, 9.0 kW drive power (IE3), and a flow rate of 1.61 m³/min at a maximum operating pressure of 8 bar. The refrigeration dryer uses the refrigerant R-513A and produces a pressure dew point of +3 °C—ensuring that dry, condensate-free compressed air reliably reaches the end user.

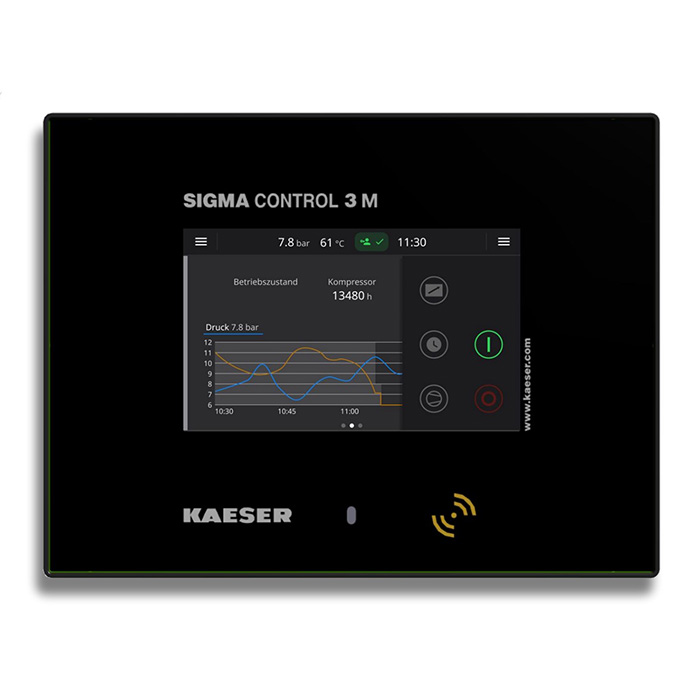

The highly efficient compressor block with SIGMA PROFIL and the IE3 motor ensure economical operation at a sound pressure level of just 66 dB(A). The SIGMA CONTROL 3 M touchscreen control monitors the compressor and refrigeration dryer via the color display. The robust design is engineered for continuous industrial operation.
Its compact dimensions of 630 × 1090 × 1100 mm (W × D × H), combined with a weight of 315 kg and a G 3/4 compressed air connection, make installation easy. The maintenance-friendly design, with easily accessible service components, reduces operating costs over the entire service life.
Recommended Applications: Designed for manufacturing facilities with continuous compressed air demand and requirements for dry compressed air—such as in plastics processing, assembly or packaging technology.
Accessories & Documentation: You can find compatible compressed air filters, oil-water separators, and compressed air tanks in the Accessories section. All technical specifications, data sheets, and operating instructions are available for download in the respective tabs.
Note: The built-in refrigeration dryer contains a fluorinated greenhouse gas. Refrigerant R-513A (GWP 631).
| Max. Overpressure (bar) | 8 |
| Volume flow at overpressure (m³/min) | 1,61 |
| Rated power drive motor (kW) | 9 |
| Drive motor efficiency class | IE3 |
| Permissible pressure loss cooling channel (Pa) | 20 |
| Max. usable warm air volume (m³/h) | 2100 |
| Max. usable heat output "warm air" (kW) | 11,1 |
| Max. usable heat output "warm water" (kW) | 7,6 |
| Required supply air opening (m2) | 0,35 |
| Drive motor protection class | IP55 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 23 A |
| Fuse: Max current | 32 A |
| Cooling fluid filling quantity (litres) | 4 |
| Width (mm) | 630 |
| Depth (mm) | 1090 |
| Height (mm) | 1100 |
| Weight (kg) | 315 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 66 |
| Refrigeration dryer power consumption (kW) | 0,49 |
| Refrigeration dryer pressure dew point (°C) | 3 |
| Refrigeration dryer pressure loss (bar) | 0,20 |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,39 |
| CO2 equivalent (tonnes) | 0,25 |
| Global warming potential GWP | 631 |
| Model range - Screw compressors | SM | 5.5 - 9 kW | Industry |
| Volume flow at overpressure (m³/min) | 1,61 |
| Max. Overpressure (bar) | 8 |
| Rated power drive motor (kW) | 9 |
| Electrical supply | 400V / 3 / 50Hz |
| Drive motor protection class | IP 55 |
| Sound pressure level (dbA) | 66 |
| Max. usable warm air volume (m³/h) | 2100 |
| Compressed air connection | G 3/4 |
| Cooling fluid filling quantity (litres) | 4 |
| Width (mm) | 630 |
| Depth (mm) | 1090 |
| Height (mm) | 1100 |
| Weight (kg) | 315 |
| Full load current | 23 A |
| Fuse: Max current | 32 |
| Refrigeration dryer pressure loss (bar) | 0,20 |
| Refrigeration dryer pressure dew point (°C) | 3 |
| Refrigerant charge (kg) | 513 |
| Global warming potential GWP | 629 |
| CO2 equivalent (tonnes) | 0,25 |
| Drive Motor Efficiency (%) | 3 |
| Drive Motor Speed (rpm) | 2950 |
| Electrical Power Consumption (kW) | 12,1 |
| Coolant Type | SIGMA FLUID MOL |
| Ambient Temperature (Max./Min.) | 45 °C / 3 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

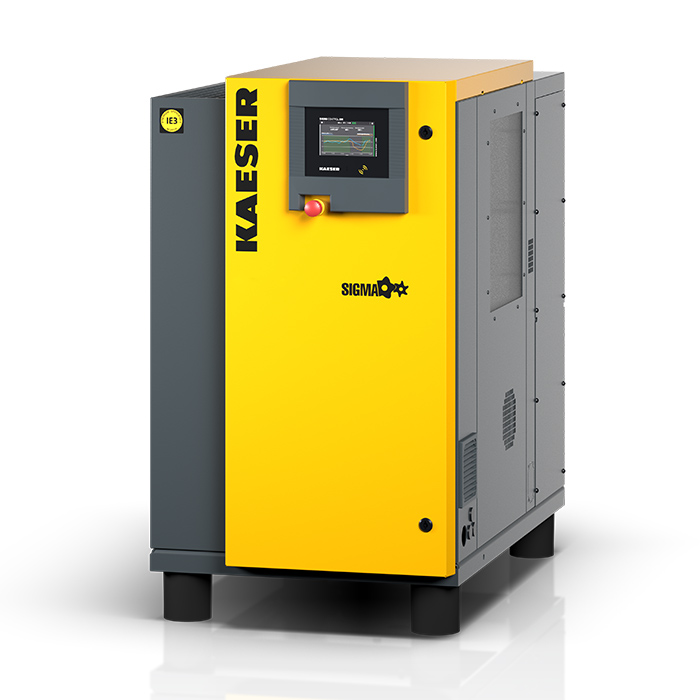

![[102421.00030] KAESER SM 16-11 T SC3 screw compressor](/web/image/product.template/311843/image_128/%5B102421.00030%5D%20KAESER%20SM%2016-11%20T%20SC3%20screw%20compressor?unique=5a775da)
|
