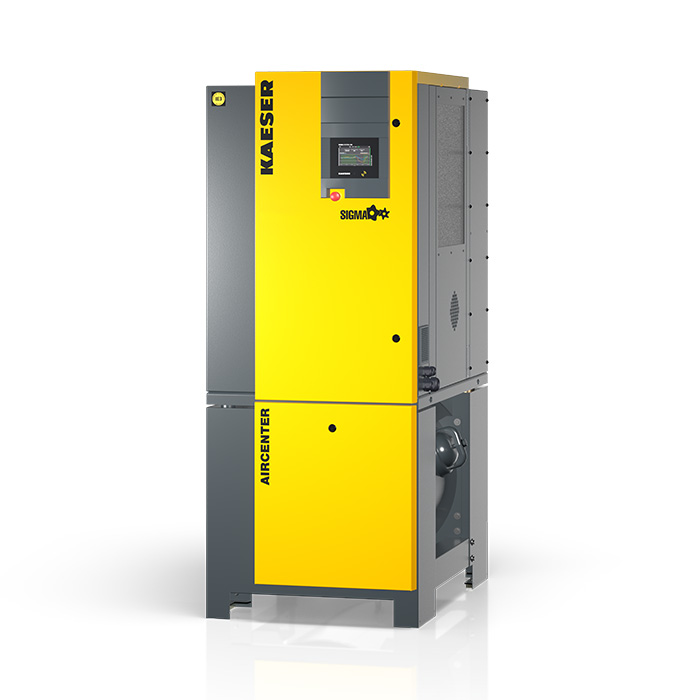

KAESER Aircenter SK 23-15 SC3 Screw Compressor

KAESER Aircenter SK 23-15 SC3: The compressed air station with a maximum pressure of 15 bar

The KAESER The Aircenter SK 23-15 SC3 is a ready-to-use compressed air station with 11.0 kW drive power (IE3) and a flow rate of 1.37 m³/min at a maximum operating pressure of 15 bar. The complete system combines an oil-lubricated screw compressor with SIGMA PROFILE, an integrated refrigeration dryer (pressure dew point +3 °C), and a 350-liter compressed air receiver—all at a sound pressure level of just 66 dB(A).

The SIGMA CONTROL 3 M touchscreen control system monitors all operating parameters via a 5-inch color display. The integrated Modbus RTU interface and optional ANYbus modules enable integration into higher-level control systems. Installation is incredibly simple: Just connect the power supply (400 V / 3-phase / 50 Hz) and the compressed air line (G 1)—and you’re done.

Recommended Use: Ideal for manufacturing facilities and workshops that need a turnkey compressed air solution with treatment and storage—without having to plan and install separate components.

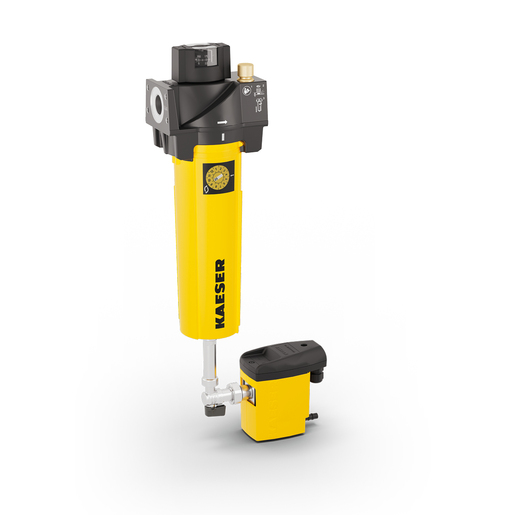

Accessories & Documentation: You can find compatible compressed air filters and oil-water separators in the Accessories section. All technical specifications, data sheets, and operating instructions are available for download in the respective tabs.

Note: The built-in refrigeration dryer contains a fluorinated greenhouse gas. Refrigerant R-513A (GWP 631).
